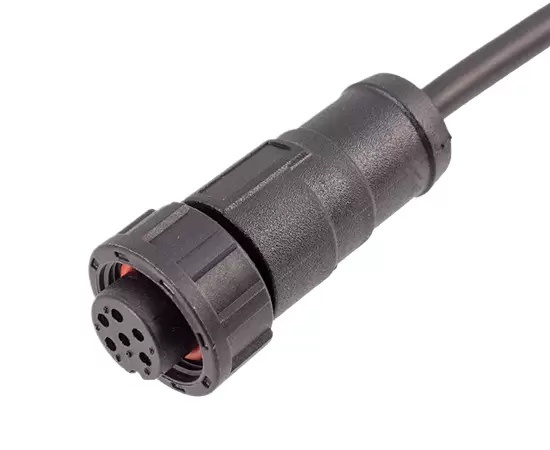

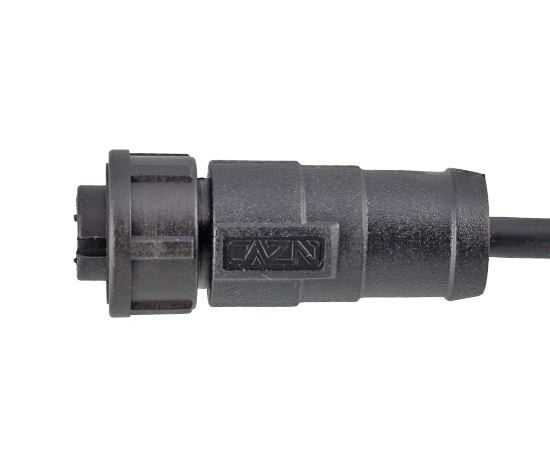

Plug(Threaded)
Plastic waterproof connector: E10 series
5/8 "-27UNS U.S. standard screw
Structure type: Straight Female Overmolded Plug
Pin type: Female
Coupling: Threaded(T)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 10, 12 pins
Termination way: Solder
Shielded: No
-
Merchant Code:
E10T-S2-MWA-xPV
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Pins number： | 2-12 pins，Current: high current and low current |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 4.0mm~8.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 5/8"-27UNS |
E10 ELECTRICAL PARAMETERS
Electrical diagram

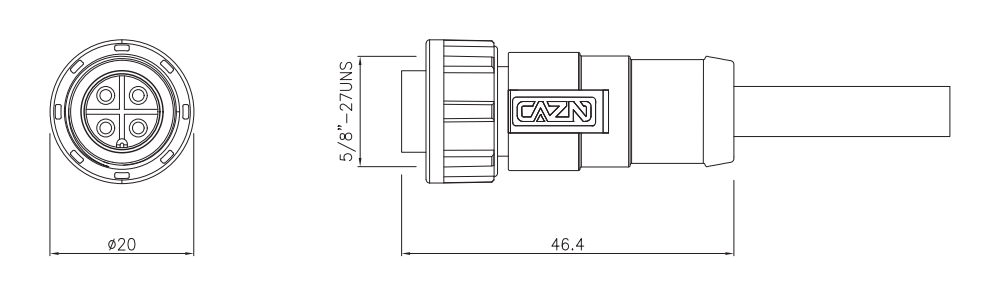

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S2-MWA-xPV | 2 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S3-MWA-xPV | 3 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S4-MWA-xPV | 4 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S5-MWA-xPV | 5 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S6-MWA-xPV | 6 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S7-MWA-xPV | 7 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 60V | 5A | E10T-S8-MWA-xPV | 8 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 30V | 2A | E10T-S10-MWA-xPV | 10 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 30V | 2A | E10T-S12-MWA-xPV | 12 | ||
| E10 Straight Female Overmolded Plug(Threaded) | 300V | 10A | E10T-S2B-MWA-xPV | 2B | ||
| E10 Straight Female Overmolded Plug(Threaded) | 300V | 10A | E10T-S3B-MWA-xPV | 3B | ||
| E10 Straight Female Overmolded Plug(Threaded) | 300V | 10A | E10T-S4B-MWA-xPV | 4B | ||
| E10 Straight Female Overmolded Plug(Threaded) | 125V | 10A | E10T-S2C-MWA-xPV | 2C | ||
| E10 Straight Female Overmolded Plug(Threaded) | 125V | 10A | E10T-S3C-MWA-xPV | 3C | ||
| E10 Straight Female Overmolded Plug(Threaded) | 125V | 10A | E10T-S4C-MWA-xPV | 4C |
