Plug(Bayonet)
Plastic waterproof connector: E7 series
7/16 "-28UNS U.S standard screw
Structure type: E7 Straight Overmolded Mating Plug
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6 pins
Termination way: solder
Shielded: No
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Cable diameter: | 3.5mm~6.8mm |
| Screw size: | 7/16"-28UNS |
E7 ELECTRICAL PARAMETERS
Electrical diagram

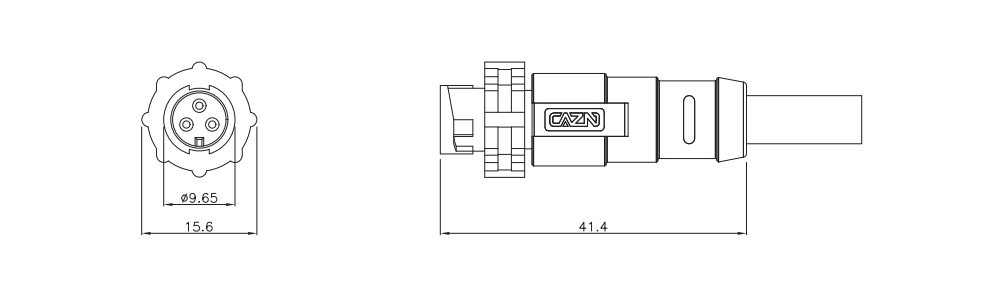

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E7 Straight Male Overmolded Mating Plug(Bayonet) | 125V | 5A | E7B-P2-MWK-xPV | 2 | ||
| E7 Straight Male Overmolded Mating Plug(Bayonet) | 125V | 5A | E7B-P3-MWK-xPV | 3 | ||
| E7 Straight Male Overmolded Mating Plug(Bayonet) | 60V | 2A | E7B-P4-MWK-xPV | 4 | ||
| E7 Straight Male Overmolded Mating Plug(Bayonet) | 60V | 2A | E7B-P5-MWK-xPV | 5 | ||
| E7 Straight Male Overmolded Mating Plug(Bayonet) | 60V | 2A | E7B-P6-MWK-xPV | 6 |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
