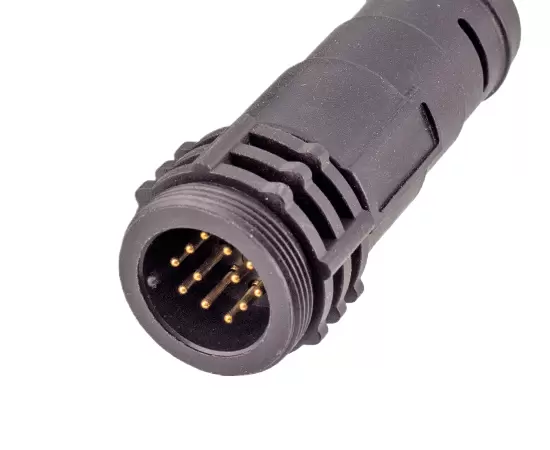

Plug(Threaded)
Plastic waterproof connector: E13 series
13/16"-28UNS U.S. standard screw
Structure type: Straight Overmolding Plug Mating Style
Pin type: Male
Coupling: Threaded(T)
Number of cores: 2, 3, 4, 5, 6, 7, 8, 9, 10, 12, 14, 18pins
Termination way: Solder
Shielded: No
Certification: CE、RoHS
-
Merchant Code:
E13T-P2-MWK-xPV
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Copper gold-plated |
| Pins number： | 2-18 pins，Current: high current、low current and Mix-current |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 6.0mm~10.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 13/16"-28UNS |
E13 ELECTRICAL PARAMETERS
Electrical diagram

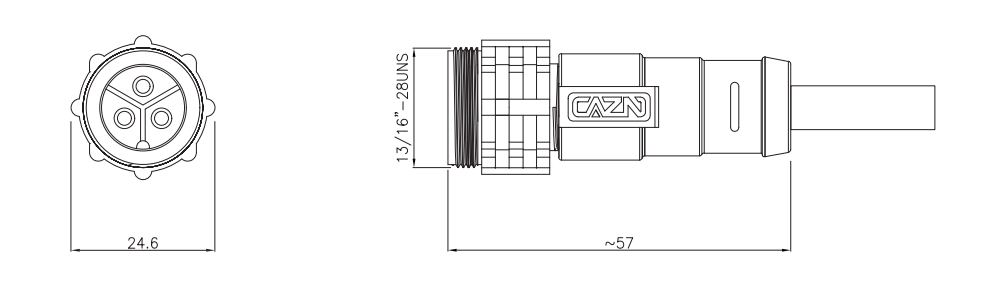

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 125V | 20A | E13T-P2-MWK-xPV | 2 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 125V | 20A | E13T-P3-MWK-xPV | 3 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 125V | 10A | E13T-P4-MWK-xPV | 4 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 125V | 10A | E13T-P5-MWK-xPV | 5 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 125V | 10A | E13T-P6-MWK-xPV | 6 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 60V | 5A | E13T-P7-MWK-xPV | 7 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 60V | 5A | E13T-P8-MWK-xPV | 8 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 60V | 5A | E13T-P9-MWK-xPV | 9 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 60V | 5A | E13T-P10-MWK-xPV | 10 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 60V | 5A | E13T-P12-MWK-xPV | 12 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 60V | 5A | E13T-P14-MWK-xPV | 14 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 30V | 2A | E13T-P18-MWK-xPV | 18 | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 300V | 20A | E13T-P2B-MWK-xPV | 2B | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 300V | 20A | E13T-P3B-MWK-xPV | 3B | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 300V | 20A | E13T-P4B-MWK-xPV | 4B | ||
| E13 Straight Male Overolding Plug Mating Style (Threaded) | 125+30V | 15+2A | E13T-P8C-MWK-xPV | 8C |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
