Home / Products / E Waterproof Connector / E7 Waterproof Connector / Plug(Threaded) / E7 Right Angle Female Overmolded Plug(Threaded)
Plug(Threaded)
Plastic waterproof connector: E7 series
7/16 "-28UNS U.S standard screw

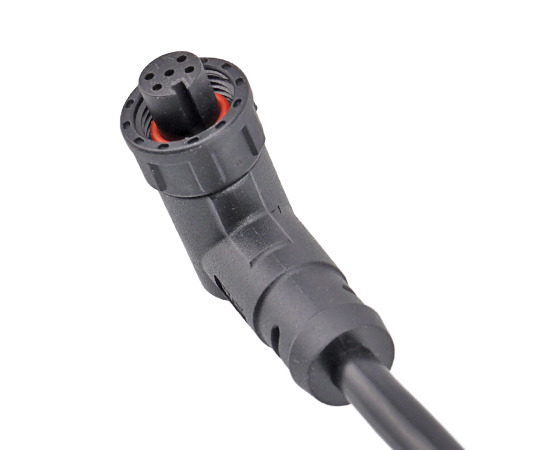

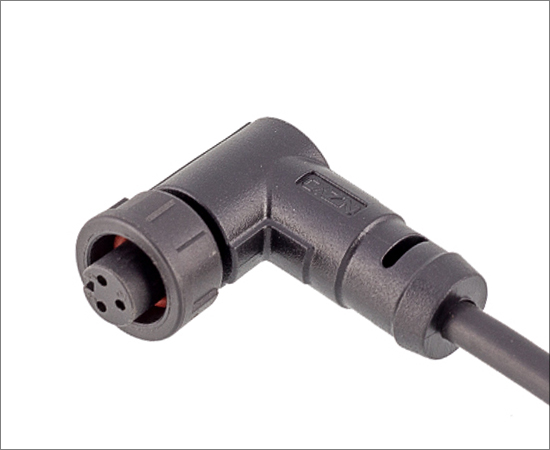

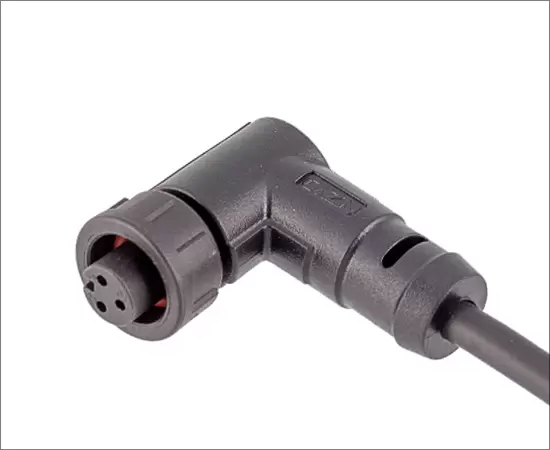

Structure type: Right Angle Female Overmolding Plug
Pin type: Female
Coupling: Threaded(T)
Number of cores: 2, 3, 4, 5, 6 pins
Termination way: solder
Shielded: No
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Cable diameter: | 3.5mm~6.8mm |
| Screw size: | 7/16"-28UNS |
E7 ELECTRICAL PARAMETERS
Electrical diagram

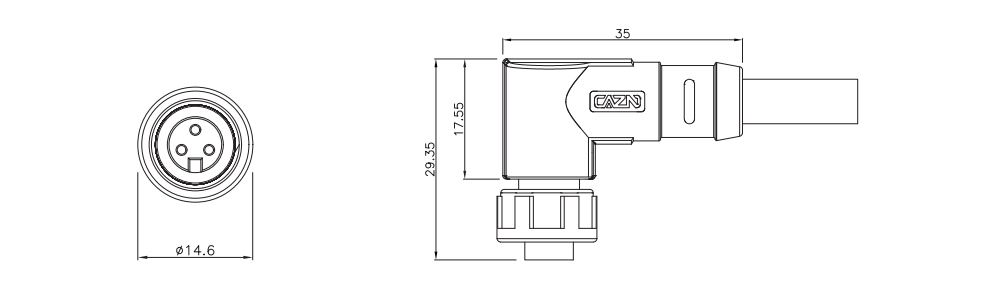

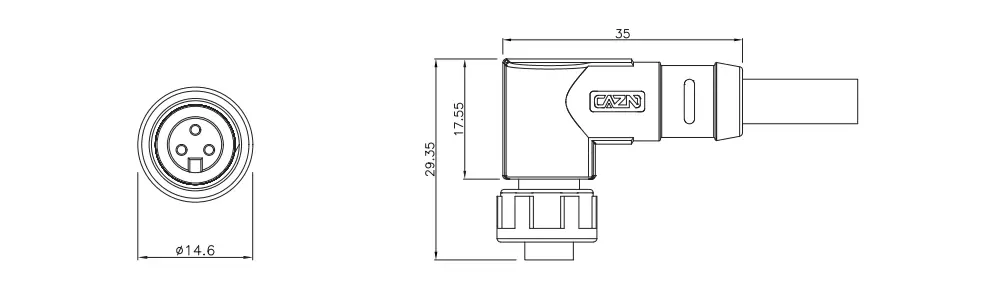

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E7 Right Angle Female Overmolding Plug (Threaded) | 125V | 5A | E7T-S2-MWD-xPV | 2 | ||
| E7 Right Angle Female Overmolding Plug (Threaded) | 125V | 5A | E7T-S3-MWD-xPV | 3 | ||
| E7 Right Angle Female Overmolding Plug (Threaded) | 60V | 2A | E7T-S4-MWD-xPV | 4 | ||
| E7 Right Angle Female Overmolding Plug (Threaded) | 60V | 2A | E7T-S5-MWD-xPV | 5 | ||
| E7 Right Angle Female Overmolding Plug (Threaded) | 60V | 2A | E7T-S6-MWD-xPV | 6 |
