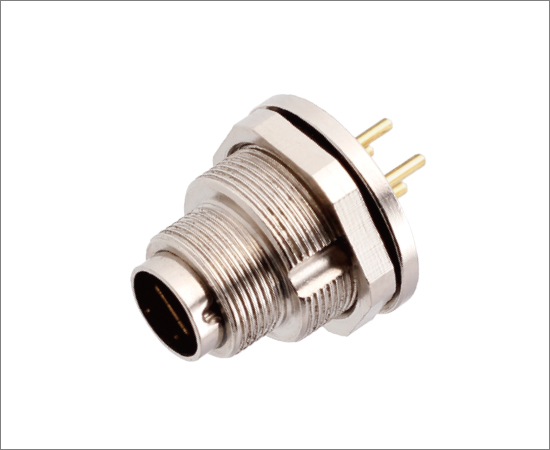

Home / Products / Circular Connector / M9 Connector / Back Mount Socket / M9 Male Back Mount Socket (PCB)
Back Mount Socket
European standard connector: M9 series
Structure type: Back Mount Socket
Connection method: PCB
Pin type: Male
Contacts number: 2，3，4，5，6，7，8pins
Ground: No
Certification: CE,RoHS,UL
-
Merchant Code:
M9-P2-GPFM12
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤3 mΩ |
| Wiring range: | 3.0~5.0mm |
| Applicable temperature： | -25℃ ~ +80℃ |
M9 ELECTRICAL PARAMETERS
Electrical diagram

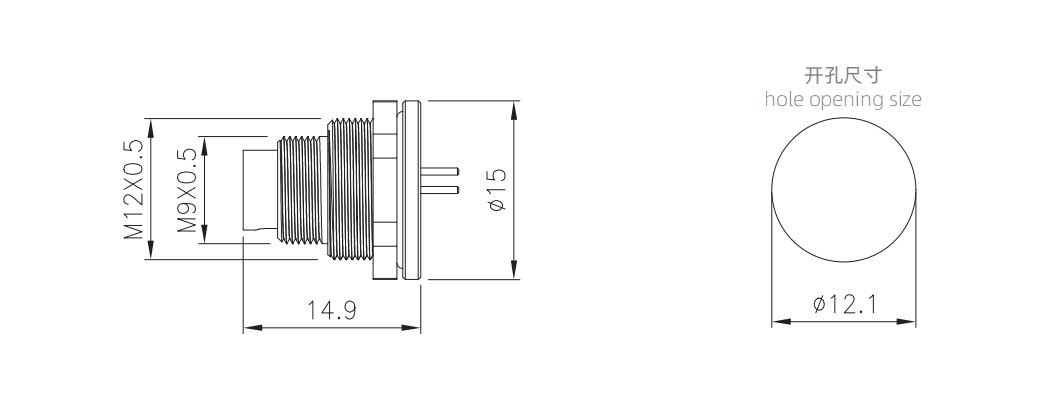

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M9 Male Back Mount Socekt（PCB） | M9-P2-GPFM12 | 2 Pin A-code | ||
| M9 Male Back Mount Socekt（PCB） | M9-P3-GPFM12 | 3 Pin A-code | ||
| M9 Male Back Mount Socekt（PCB） | M9-P4-GPFM12 | 4 Pin A-code | ||
| M9 Male Back Mount Socekt（PCB） | M9-P5-GPFM12 | 5 Pin A-code | ||
| M9 Male Back Mount Socekt（PCB） | M9-P6-GPFM12 | 6 Pin A-code | ||
| M9 Male Back Mount Socekt（PCB） | M9-P7-GPFM12 | 7 Pin A-code | ||
| M9 Male Back Mount Socekt（PCB） | M9-P8-GPFM12 | 8 Pin A-code |
