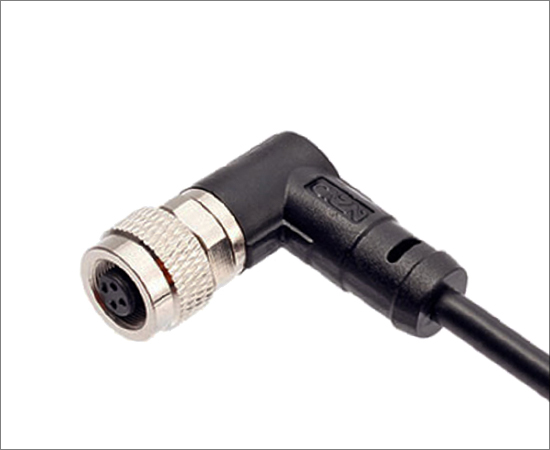

Angled Plug
European standard connector: M9 series
Structure type: Angled Overmolded Plug
Connection method: Solder
Pin type: Female
Contacts number: 2，3，4，5，6，7，8pins
Wire material: PVC/PUR
Shielded: Two options，Shielded/Unshielded
Cable length: 1M/2M/5M (customizable)
Certification: CE,RoHS,UL
-
Unshielded:
-
Merchant Code:
M9-S2-MWD-1PV
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤3 mΩ |
| Wiring range: | 3.0~5.0mm |
| Applicable temperature： | -25℃ ~ +80℃ |
| Molding material： | PVC/PUR |
M9 ELECTRICAL PARAMETERS
Electrical diagram

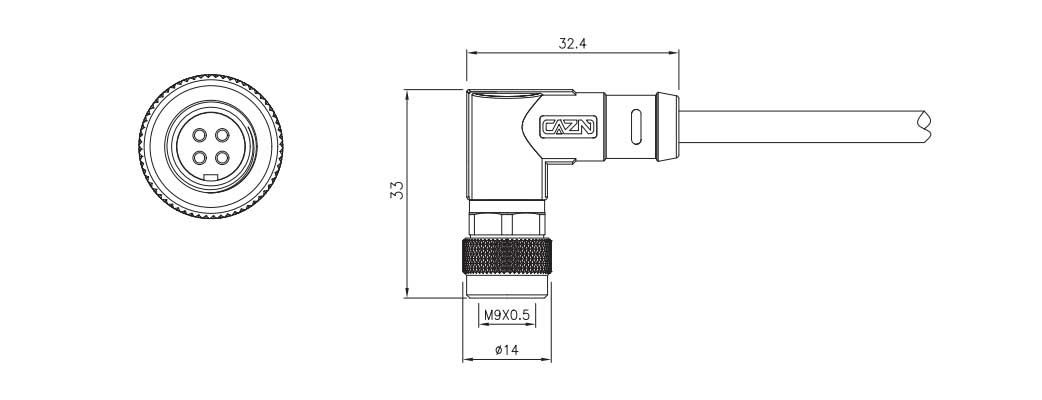

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No.Shielded | Product No.Unshielded | Pins | 3D Download | 2D Download |
| M9 Angled Female Overmolded Plug | M9-S2-MWD-xPV-S | M9-S2-MWD-xPV | 2 Pin A-code | ||
| M9 Angled Female Overmolded Plug | M9-S3-MWD-xPV-S | M9-S3-MWD-xPV | 3 Pin A-code | ||
| M9 Angled Female Overmolded Plug | M9-S4-MWD-xPV-S | M9-S4-MWD-xPV | 4 Pin A-code | ||
| M9 Angled Female Overmolded Plug | M9-S5-MWD-xPV-S | M9-S5-MWD-xPV | 5 Pin A-code | ||
| M9 Angled Female Overmolded Plug | M9-S6-MWD-xPV-S | M9-S6-MWD-xPV | 6 Pin A-code | ||
| M9 Angled Female Overmolded Plug | M9-S7-MWD-xPV-S | M9-S7-MWD-xPV | 7 Pin A-code | ||
| M9 Angled Female Overmolded Plug | M9-S8-MWD-xPV-S | M9-S8-MWD-xPV | 8 Pin A-code |
