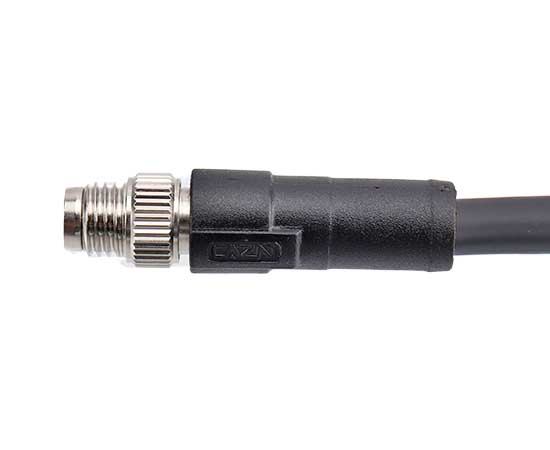

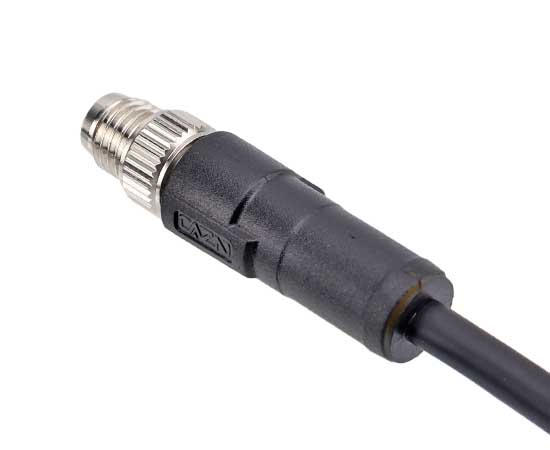

Home / Products / Circular Connector / M8 Connector / Straight Plug / M8 Straight Male Overmolded Plug (Metal interface)
Straight Plug
European standard Connectors M8 Series
Structure type: Straight Overmolded Plug
Pin type: Male type
Contacts number: 3, 4, 5 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shield: Yes/No two options
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
-
Merchant Code:
M8-P3A-MWA-1PV-GK
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | PVC/PUR |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

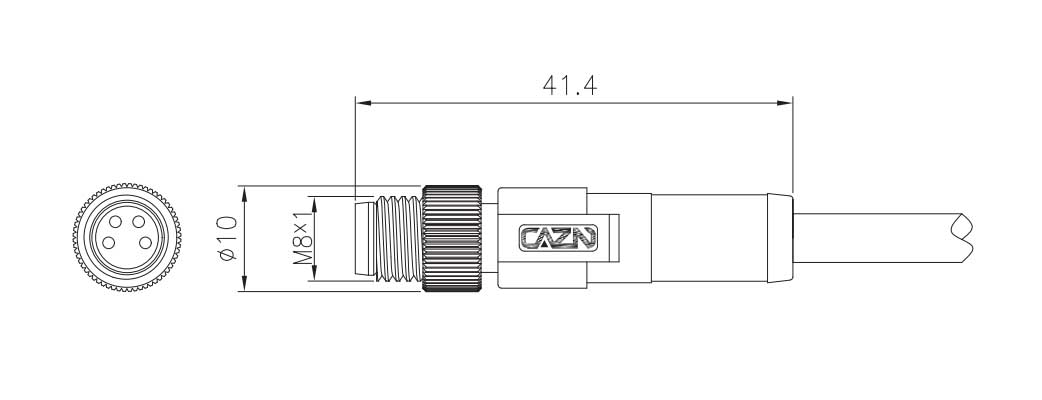

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | PartNo.-Shielded | PartNo.-Unshielded | Pins | 3D Download | 2D Download |
| M8 Straight Male Overmolded Plug Metal interface | M8-P3A-MWA-xPV/xPU-S-GK | M8-P3A-MWA-xPV/xPU-GK | 3 Pin A-code | ||
| M8 Straight Male Overmolded Plug Metal interface | M8-P4A-MWA-xPV/xPU-S-GK | M8-P4A-MWA-xPV/xPU-GK | 4 Pin A-code | ||
| M8 Straight Male Overmolded Plug Metal interface | M8-P5B-MWA-xPV/xPU-S-GK | M8-P5B-MWA-xPV/xPU-GK | 5 Pin B-code |
