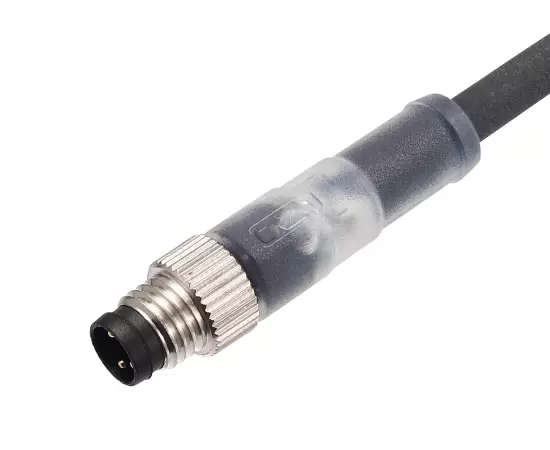

Straight Plug
European standard Connectors: M8 Series
Structure type: Straight Overmolded Plug
Pin type: Female type
Contacts number: 3, 4 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shielded: Yes/No two options
Certification: CE, RoHS, UL
Standard: IEC 61076-2-104
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | PVC/PUR |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

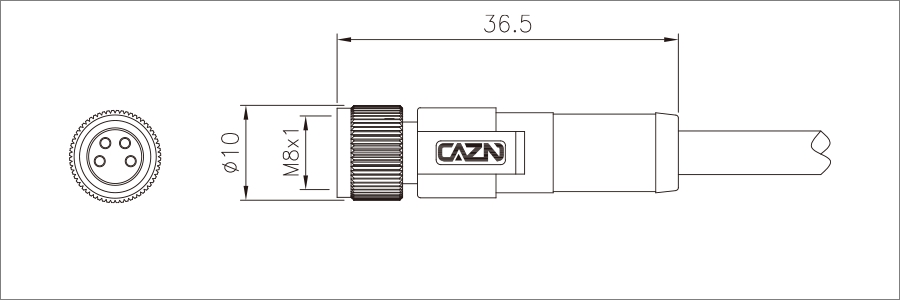

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | LED Qty | Product No. | Pins | 3D Download | 2D Download |
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | M8-S3A-MWA-1PV-LP2 | 3 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | M8-S3A-MWA-1PV-LN2 | 3 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | M8-S3A-MWA-1PV-LP3 | 3 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | M8-S3A-MWA-1PV-NP3 | 3 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights PNP | M8-S4A-MWA-1PV-LP2 | 4 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 2 lights NPN | M8-S4A-MWA-1PV-LN2 | 4 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights PNP | M8-S4A-MWA-1PV-LP3 | 4 Pin A-code | ||
| M8 Straight Female Overmolded Plug (LED)--xxMeters-PVC jacket | 3 lights NPN | M8-S4A-MWA-1PV-LN3 | 4 Pin A-code |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
