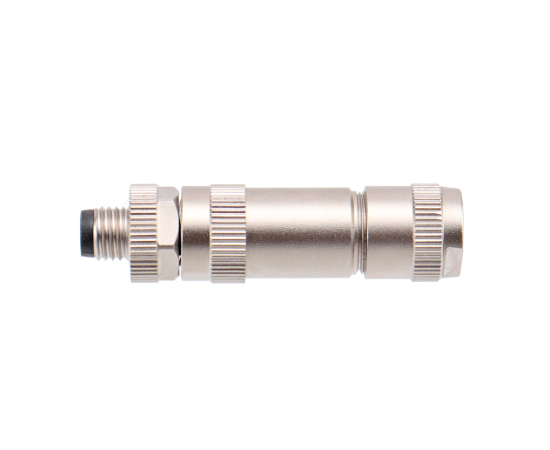

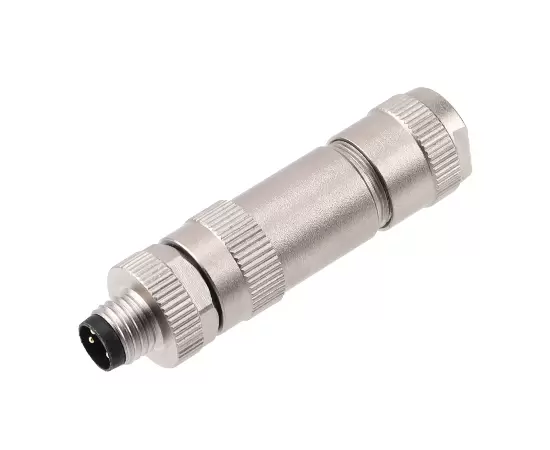

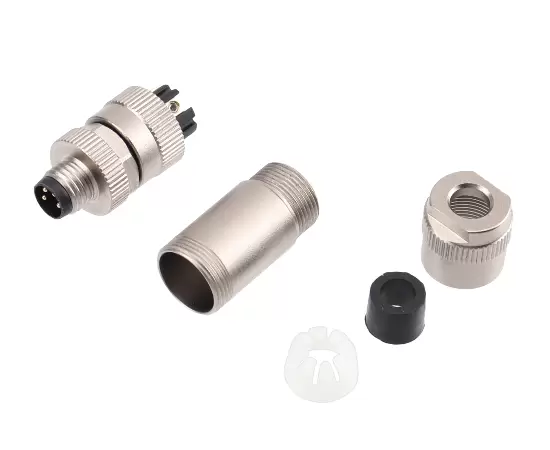

Metal Assembled Plug
European standard Connectors: M8 Series
Structure type: Metal assembled straight plug
Connection method: Screw
Pin type: Male
Contacts number: 3, 4 pins
Shielded: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

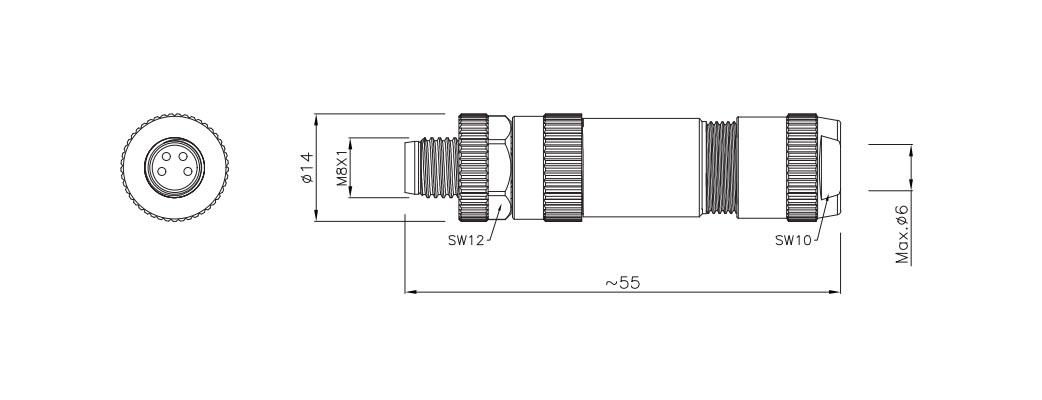

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M8 Straight Male Metal Assembled Plug 3A Screw terminal | M8-P3A-GLAP7 | 3 Pin A-code | ||
| M8 Straight Male Metal Assembled Plug 4A Screw terminal | M8-P4A-GLAP7 | 4 Pin A-code |
