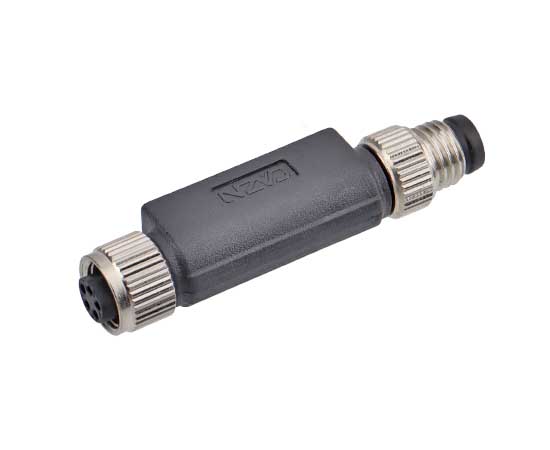

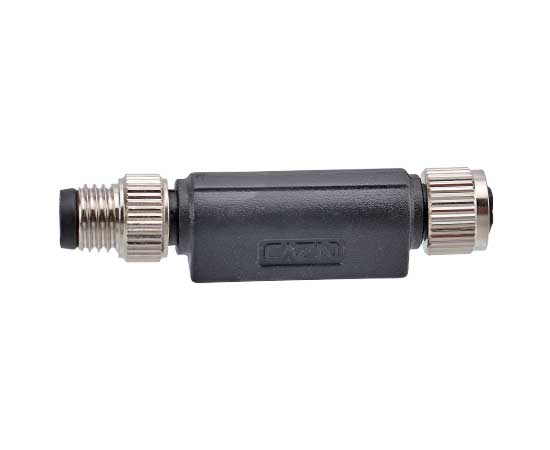

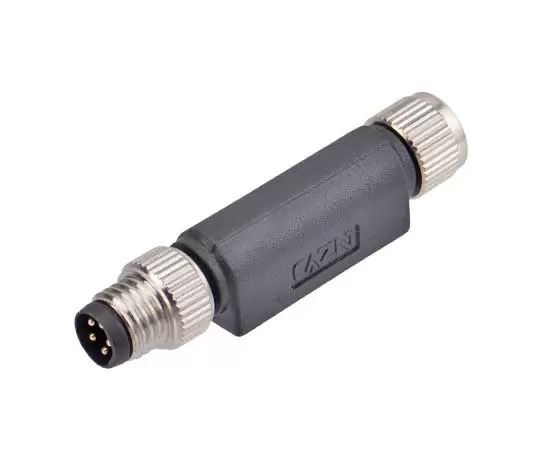

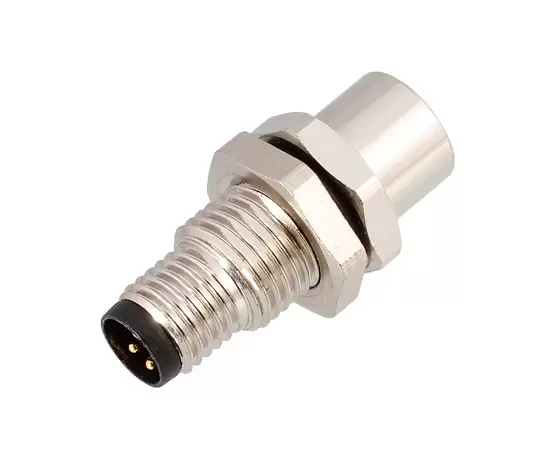

I Type Adapter
European standard Connectors M8 Series
Structure type：Angled Overmolded Plug
Pin type：Male to Female type
Contacts number：3，4，5，6，8 pin
Shielded：No
Certification：CE,RoHS,UL
Standard：IEC 61076-2-104
-
Merchant Code:
M8-P3A-S3A-ISCNY
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

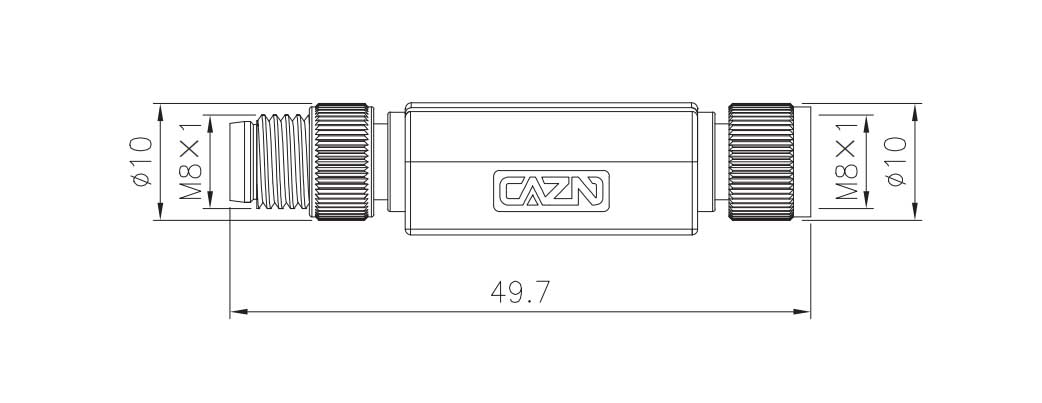

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M8 I Type Adapter (PS, Plastic Version) | M8-P3A-S3A-ISCNY | 3 Pin A-code | ||
| M8 I Type Adapter (PS, Plastic Version) | M8-P4A-S4A-ISCNY | 4 Pin A-code | ||
| M8 I Type Adapter (PS, Plastic Version) | M8-P5B-S5B-ISCNY | 5 Pin B-code | ||
| M8 I Type Adapter (PS, Plastic Version) | M8-P6A-S6A-ISCNY | 6 Pin A-code | ||
| M8 I Type Adapter (PS, Plastic Version) | M8-P8A-S8A-ISCNY | 8 Pin A-code |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
