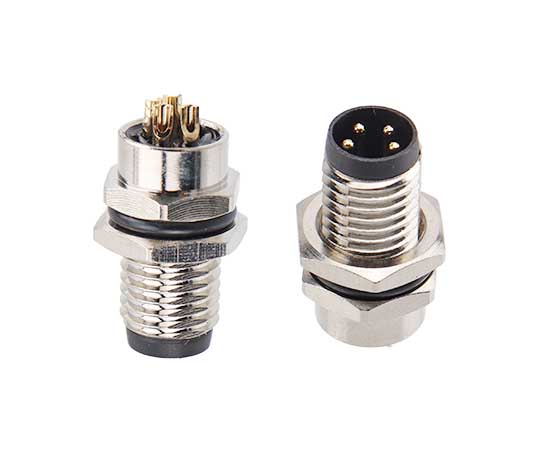

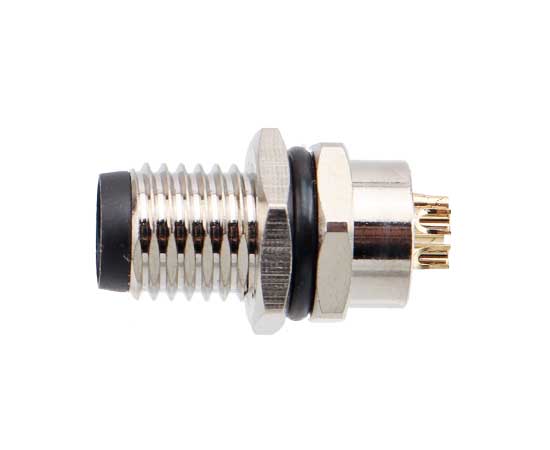

Home / Products / Circular Connector / M8 Connector / Back Mount Socket / M8 Male Back Mount Socket(Solder, Screw M8*1)
Back Mount Socket
European standard connector: M8 series
Structure type: Back Mount Socket
Connection method: Solder
Pin type: Male
Contacts number: 3，4，5，6，8pins
Cable material: Single wires
Shielded: No
Cable length: 10cm/20cm/30cm (customizable)
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
-
Merchant Code:
M8-P3A-GWFM8
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

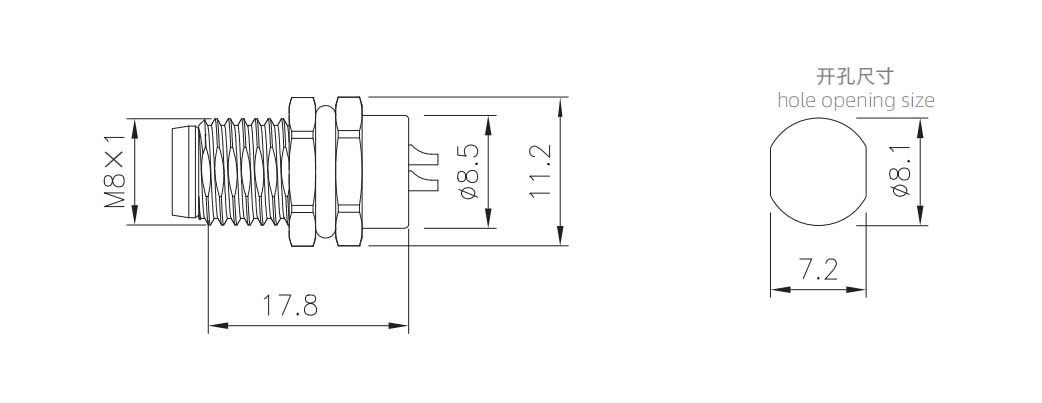

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M8 Male Back Mount Socket(Solder, Screw M8*1) | M8-P3A-GWFM8 | 3 Pin A-code | ||
| M8 Male Back Mount Socket(Solder, Screw M8*1) | M8-P4A-GWFM8 | 4 Pin A-code | ||
| M8 Male Back Mount Socket(Solder, Screw M8*1) | M8-P4D-GWFM8 | 4 Pin D-code | ||
| M8 Male Back Mount Socket(Solder, Screw M8*1) | M8-P5B-GWFM8 | 5 Pin B-code | ||
| M8 Male Back Mount Socket(Solder, Screw M8*1) | M8-P6A-GWFM8 | 6 Pin A-code | ||
| 8 Male Front Mount Socekt（Solder）Screw M8x0.5 | M8-P8A-GWFM8 | 8 Pin A-code |
