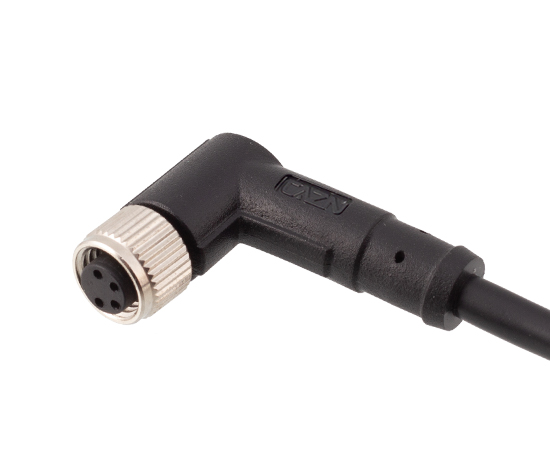

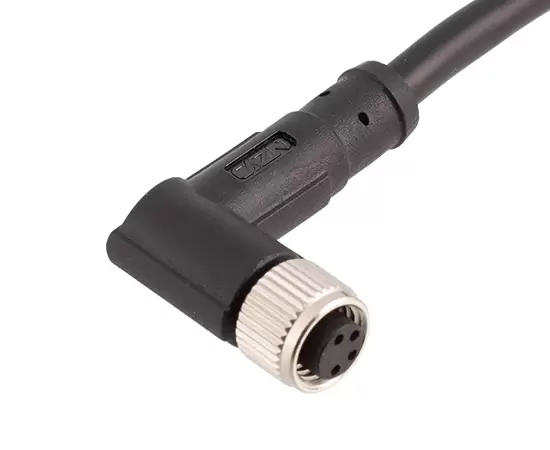

Home / Products / Circular Connector / M8 Connector / Angled Plug / M8 Angled Female Overmolded Plug
Angled Plug
European standard Connectors M8 Series
Structure type: Angled Overmolded Plug
Pin type: Female type
Contacts number: 3, 4, 5, 6, 8 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shield: Yes/No two options
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
-
Merchant Code:
M8-S3A-MWD-1PV/1PU
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | PVC/PUR |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

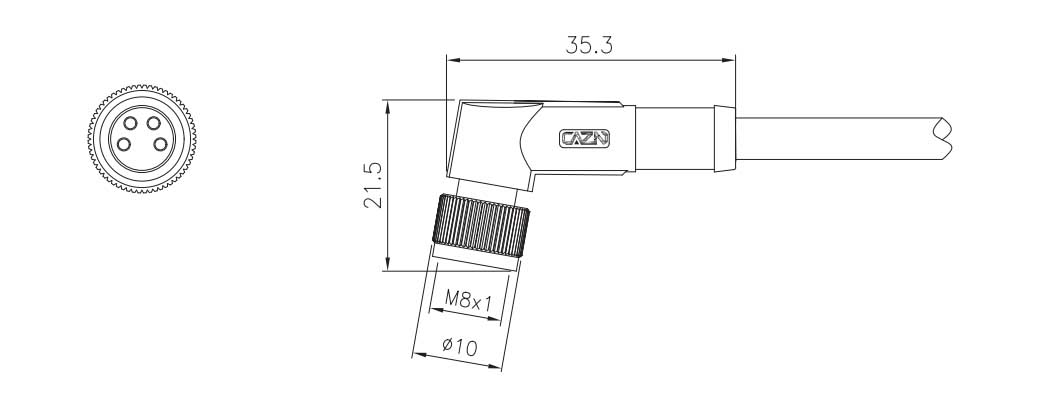

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M8 Angled Female Overmolded Plug | M8-S3A-MWD-xPV/xPU | 3 Pin A-code | ||
| M8 Angled Female Overmolded Plug | M8-S4A-MWD-xPV/xPU | 4 Pin A-code | ||
| M8 Angled Female Overmolded Plug | M8-S4D-MWD-xPV/xPU | 4 Pin D-code | ||
| M8 Angled Female Overmolded Plug | M8-S5B-MWD-xPV/xPU | 5 Pin B-code | ||
| M8 Angled Female Overmolded Plug | M8-S6A-MWD-xPV/xPU | 6 Pin A-code | ||
| M8 Angled Female Overmolded Plug | M8-S8A-MWD-xPV/xPU | 8 Pin A-code |
