Home / Products / Circular Connector / M8 Connector / 1 to 2 Overmolded Plug / M8 Female 1 to 2 Overmolded Plug

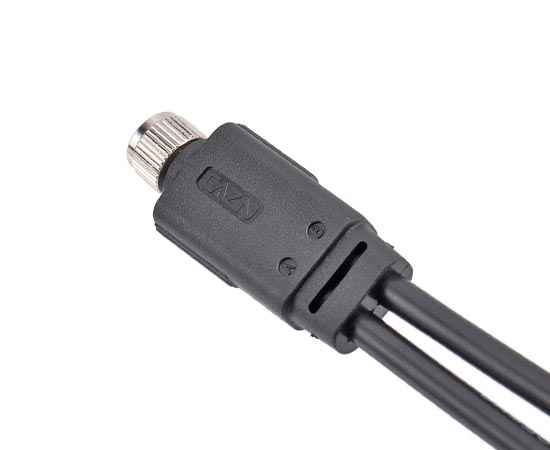

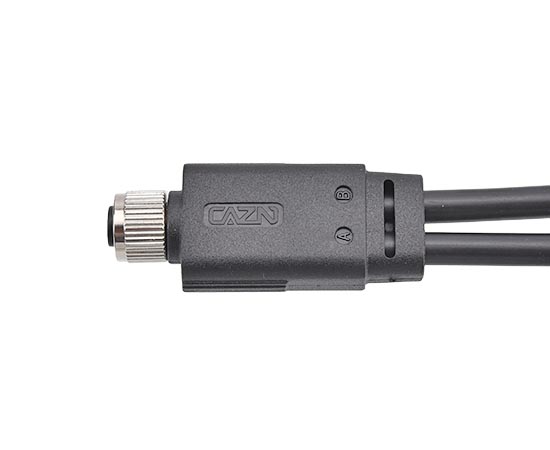

1 to 2 Overmolded Plug
European standard Connectors M8 Series
Structure type: 1 to 2 Overmolded Plug
Pin type: Female type
Contacts number: 3, 4, 5, 6, 8 pin
Cable material: PVC/PUR
Cable length: 1/2/5 Meters (customizable)
Shielded: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-104
-
Merchant Code:
M8-S3A-MWA-1PV-1T2
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Molding material： | PVC/PUR |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Waterproof grade： | IP65/IP67 |
| Execution standard： | IEC 61076-2-104 |
M8 ELECTRICAL PARAMETERS
Electrical diagram

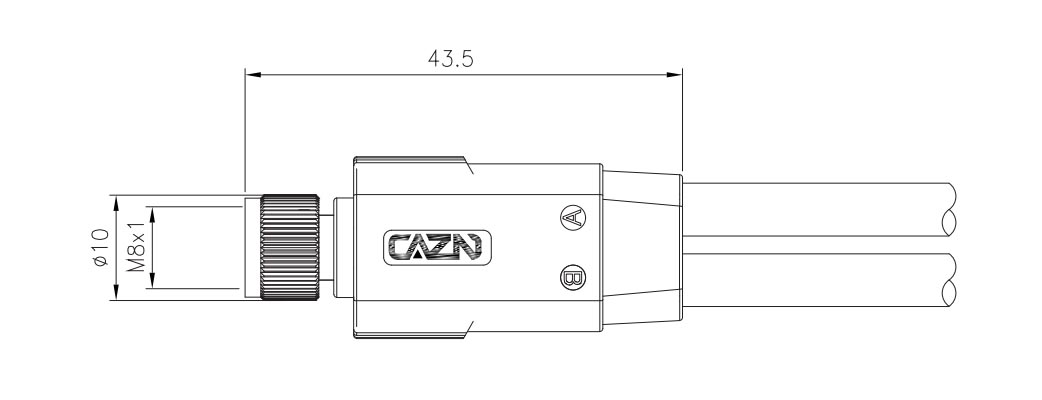

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Part No.-Unshielded | Pins | 3D Download | 2D Download |
| M8 Female 1to2 Overmolded Plug | M8-S3A-MWA-1PV-1T2 | 3 Pin A-code | ||
| M8 Female 1to2 Overmolded Plug | M8-S4A-MWA-1PV-1T2 | 4 Pin A-code | ||
| M8 Female 1to2 Overmolded Plug | M8-S5B-MWA-1PV-1T2 | 5 Pin B-code | ||
| M8 Female 1to2 Overmolded Plug | M8-S6A-MWA-1PV-1T2 | 6 Pin A-code | ||
| M8 Female 1to2 Overmolded Plug | M8-S8A-MWA-1PV-1T2 | 8 Pin A-code |
