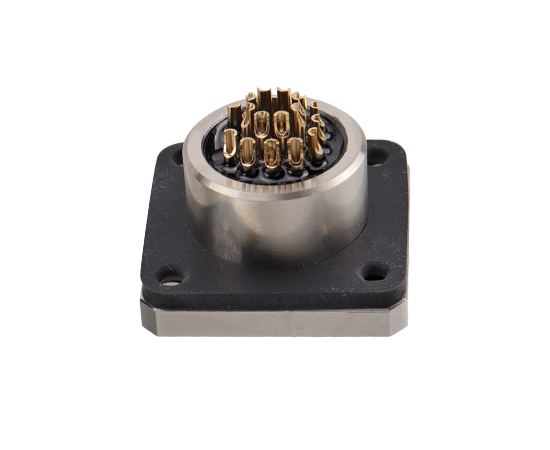

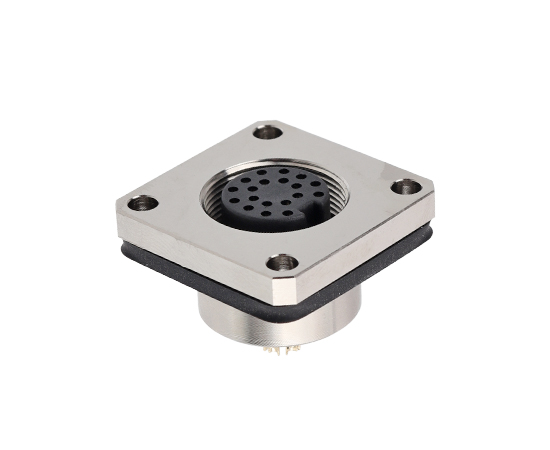

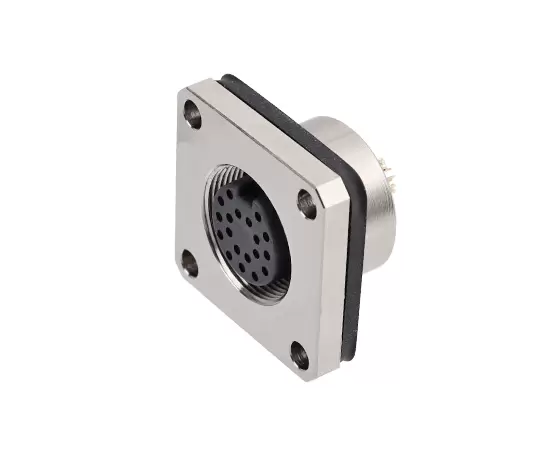

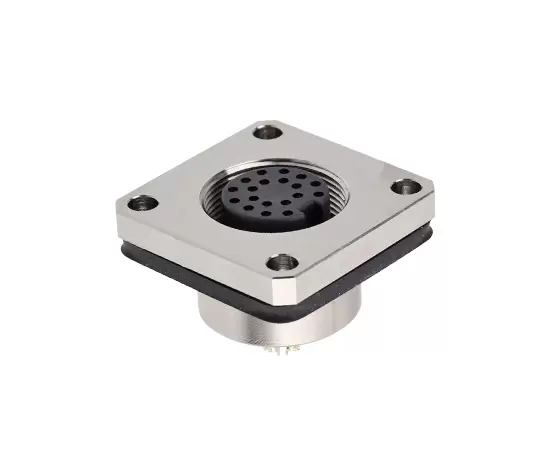

Home / Products / Circular Connector / M16 Connector / Square Socket / M16 Female Square Socket (Solder type, Mount Hole 20*20)
Square Socket
European standard connector: M16 series
Structure type: Square Socket
Connection method: Solder
Pin type: Female
Contacts number: 2,3,4,5,6,7,8,12,14,16,19,24 pins
Cable material: Single wires
Ground: NO
Cable length: 10cm/20cm/30cm (customizable)
Certification: CE, RoHS, UL
Standard：IEC 61076-2-106-2012 AISG
-
Merchant Code:
M16-S2-GWH
Product information
PRODUCT PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Wiring range： | PG7: 4~6mm; PG9: 6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Executive standard： | IEC 61076-2-106-2012 AISG |

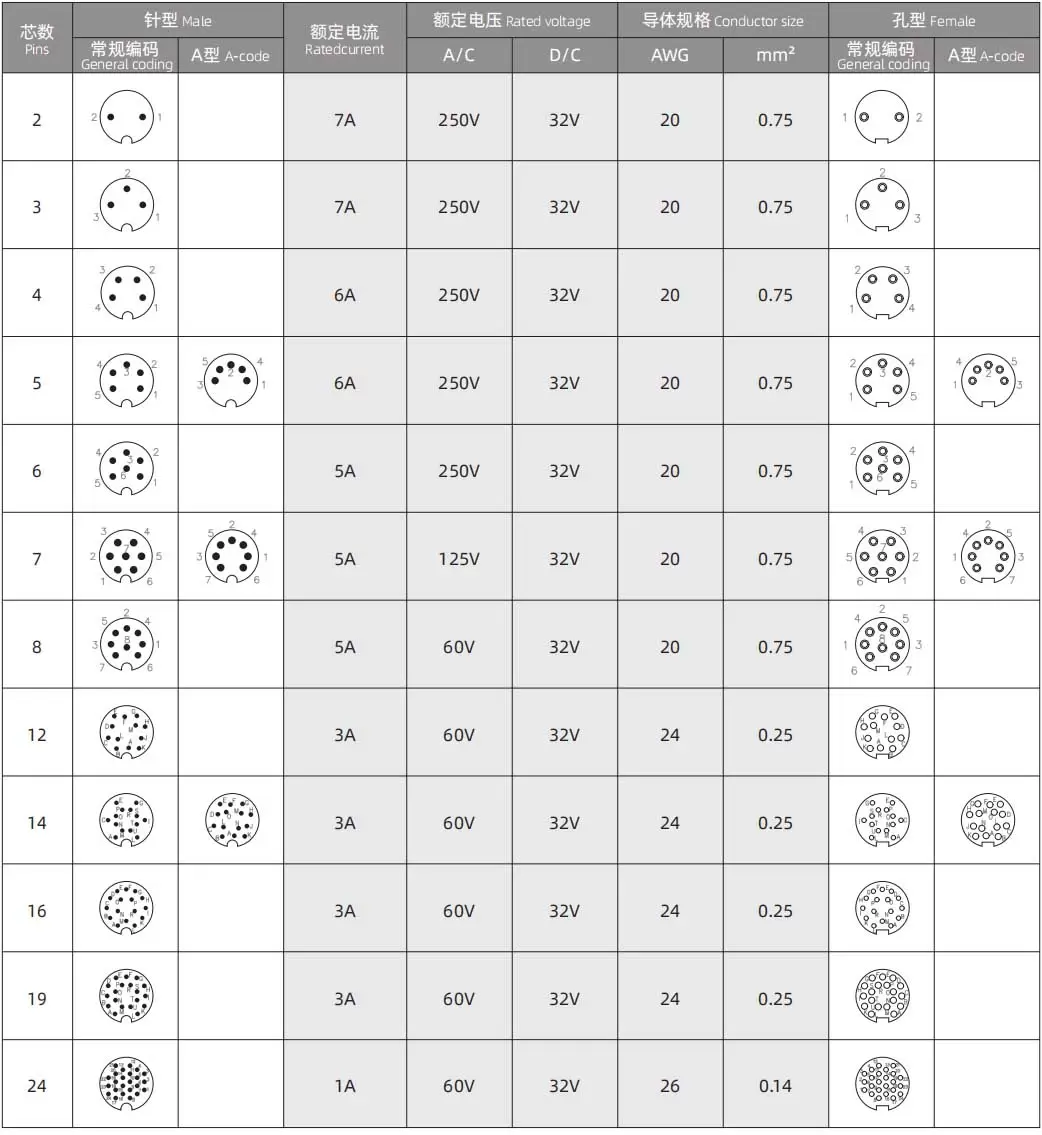

M16 ELECTRICAL PARAMETERS
Electrical diagram

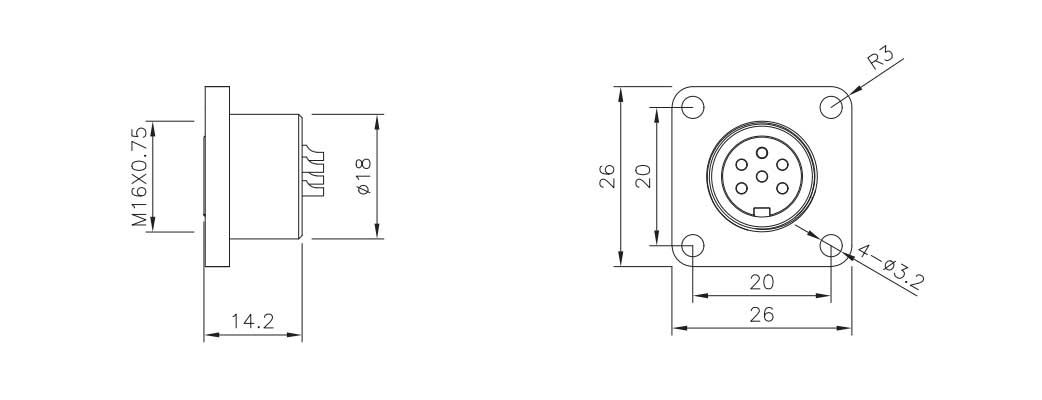

DIMENSION DRAWING
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S2-GWH | 2 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S3-GWH | 3 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S4-GWH | 4 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S5-GWH | 5 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S5A-GWH | 5 Pin A-code | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S6-GWH | 6 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S7-GWH | 7 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S7A-GWH | 7 Pin A-code | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S8-GWH | 8 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S12-GWH | 12 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S14-GWH | 14 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S14A-GWH | 14 Pin A-code | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S16-GWH | 16 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S19-GWH | 19 Pin | ||
| M16 Female Square Socket（Solder）Hole 20*20 | M16-S24-GWH | 24 Pin |
