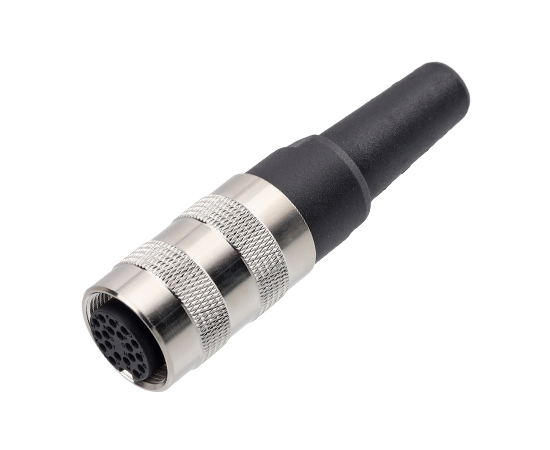

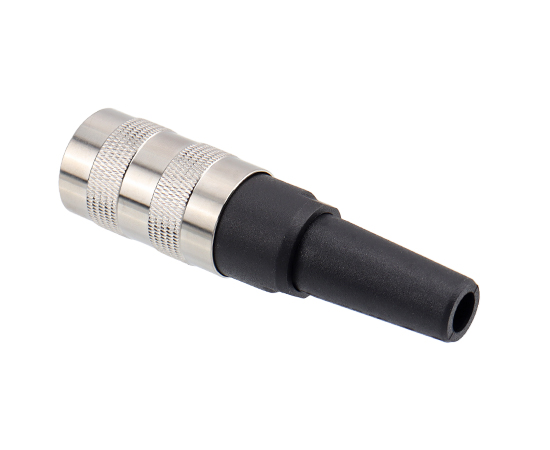

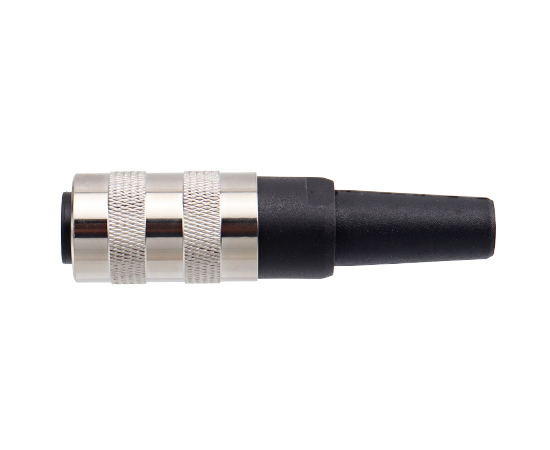

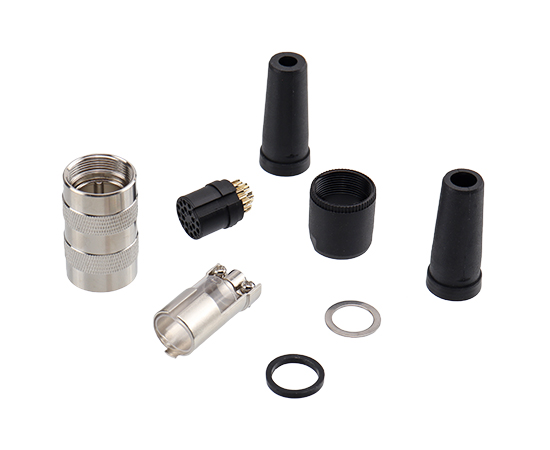

Home / Products / Circular Connector / M16 Connector / Plastic Assembled Plug / M16 Straight Female Assembled Plug (Solder, Plastic tube)
Plastic Assembled Plug
European standard connector: M16 series
Structure type: Straight Metal Assembled Plug
Connection method: Solder
Pin type: Female
Contacts number: 2,3,4,5,6,7,8,12,14,16,19,24 pins
Shielded: Yes
Certification: CE, RoHS, UL
Standard：IEC 61076-2-106-2012 AISG
-
Merchant Code:
M16-S2-PWA05-PT
Product information
PRODUCT PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Wiring range： | PG7: 4~6mm; PG9: 6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Executive standard： | IEC 61076-2-106-2012 AISG |
M16 ELECTRICAL PARAMETERS
Electrical diagram

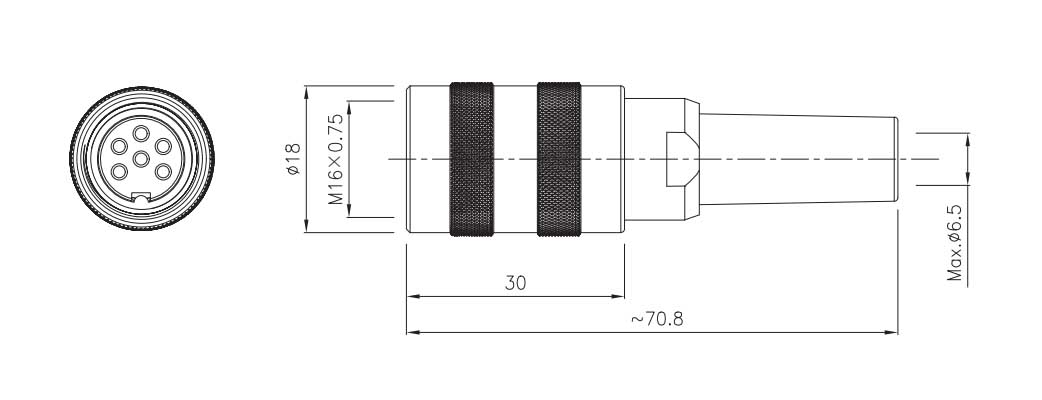

DIMENSION DRAWING
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S2-PWA05-PT | 2 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S3-PWA05-PT | 3 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S4-PWA05-PT | 4 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S5-PWA05-PT | 5 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S5A-PWA05-PT | 5 Pin A-code | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S6-PWA05-PT | 6 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S7-PWA05-PT | 7 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S7A-PWA05-PT | 7 Pin A-code | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S8-PWA05-PT | 8 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S12-PWA05-PT | 12 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S14-PWA05-PT | 14 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S14A-PWA05-PT | 14 Pin A-code | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S16-PWA05-PT | 16 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S19-PWA05-PT | 19 Pin | ||
| M16 Straight Female Metal Assembled Plug(Solder, Plastic tube) | M16-S24-PWA05-PT | 24 Pin |
