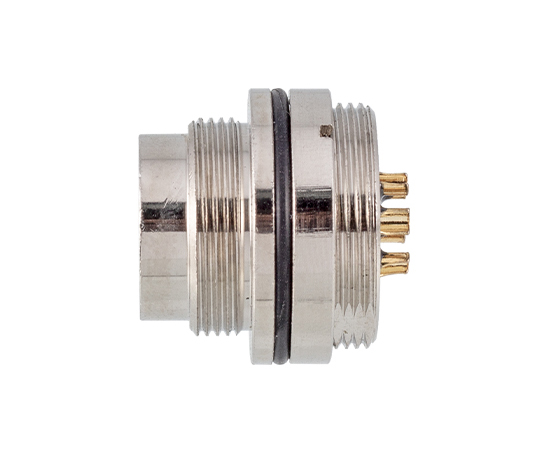

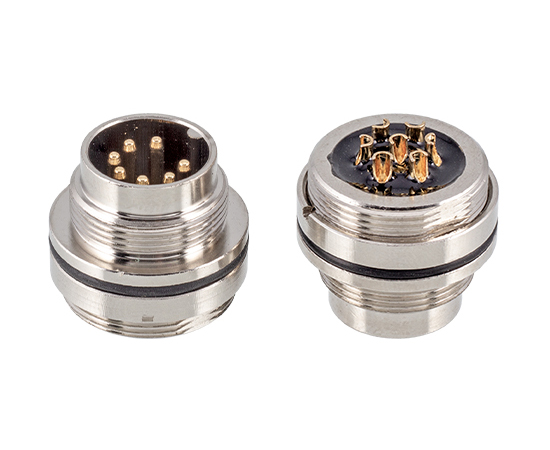

Home / Products / Circular Connector / M16 Connector / Front Mount Socket / M16 Male Front Mount Socket (Solder, Screw M18*0.75)
Front Mount Socket
European standard connector: M16 series
Structure type: Front Mount Socket
Connection method: Solder
Pin type: Male
Contacts number: 2,3,4,5,6,7,8,12,14,16,19,24 pins
Cable material: Single wires
Ground: NO
Cable length: 10cm/20cm/30cm (customizable)
Certification: CE, RoHS, UL
Standard：IEC 61076-2-106-2012 AISG
-
Merchant Code:
M16-P2-GWBM18
Product information
PRODUCT PARAMETERS
| Shell material： | Brass/Zinc alloy nickel/Brass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Wiring range： | PG7: 4~6mm; PG9: 6~8mm |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Executive standard： | IEC 61076-2-106-2012 AISG |
M16 ELECTRICAL PARAMETERS
Electrical diagram

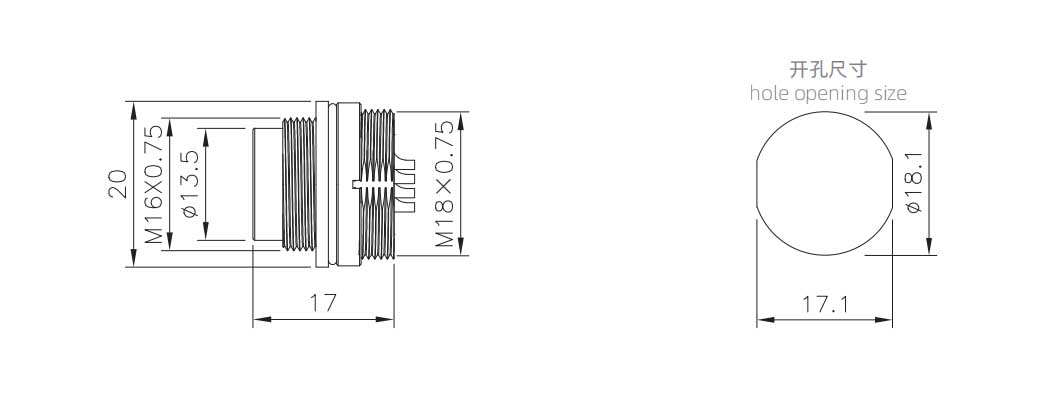

DIMENSION DRAWING
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M16 Male Front Mount Socket（Solder） | M16-P2-GWBM18 | 2 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P3-GWBM18 | 3 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P4-GWBM18 | 4 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P5-GWBM18 | 5 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P5A-GWBM18 | 5 Pin A-code | ||
| M16 Male Front Mount Socket（Solder） | M16-P6-GWBM18 | 6 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P7-GWBM18 | 7 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P7A-GWBM18 | 7 Pin A-code | ||
| M16 Male Front Mount Socket（Solder） | M16-P8-GWBM18 | 8 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P12-GWBM18 | 12 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P14-GWBM18 | 14 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P14A-GWBM18 | 14 Pin A-code | ||
| M16 Male Front Mount Socket（Solder） | M16-P16-GWBM18 | 16 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P19-GWBM18 | 19 Pin | ||
| M16 Male Front Mount Socket（Solder） | M16-P24-GWBM18 | 24 Pin |
