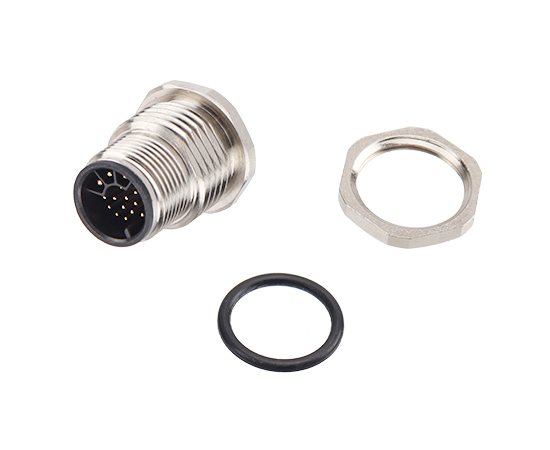

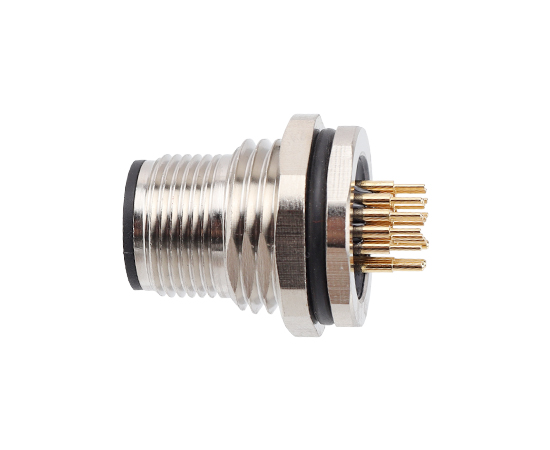

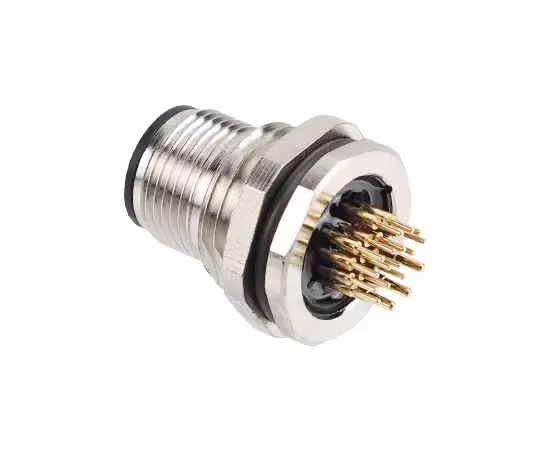

M14 Male Back Mount Socket (PCB)

European standard connector: M14 series

Structure type: Back Mount Socket

Connection method: PCB

Pin type: Male

Contacts number: 18pins

Shielded: No

Certification: CE, RoHS, UL

Pins:
8P
Merchant Code:
M14-P18-GPFM17

INQUIRY

DOWNLOAD

Product information

PRODUCT PARAMETERS

Shell material：	Brass/Bass nickel plated
Insulator material：	PA66
Sealing material：	Epoxy resin/Rubber
Contact material：	Brass/Phosphorus copper gold-plated
Waterproof grade：	IP65/IP67
Insulation impedance：	≥100 mΩ
Contact impedance：	≤5 mΩ
Durability:	≥ 500 cycles
Applicable temperature：	-25℃ ~ +80℃
Executive standard：	IPC-A-620

M14 ELECTRICAL PARAMETERS

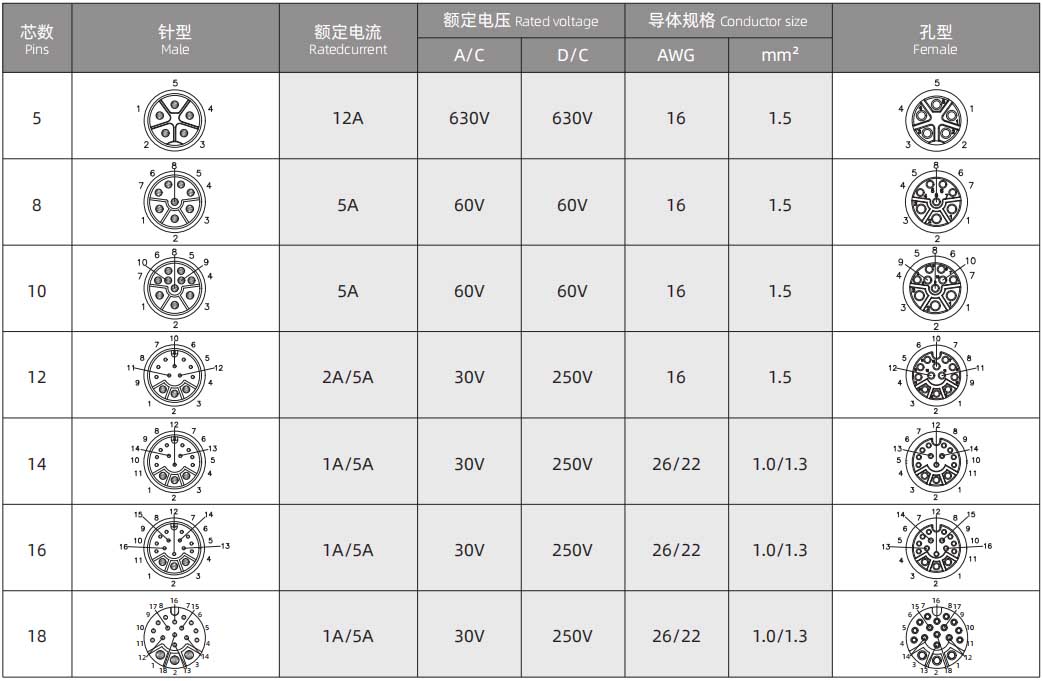

Electrical diagram

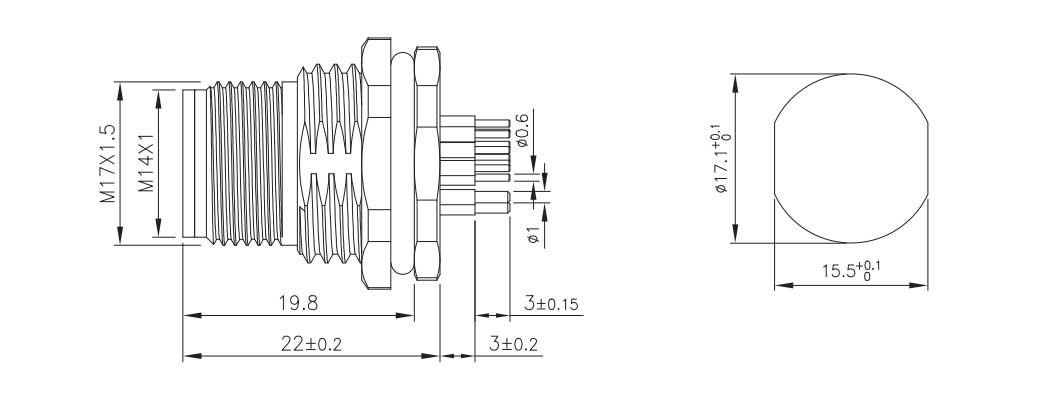

DIMENSION DRAWING

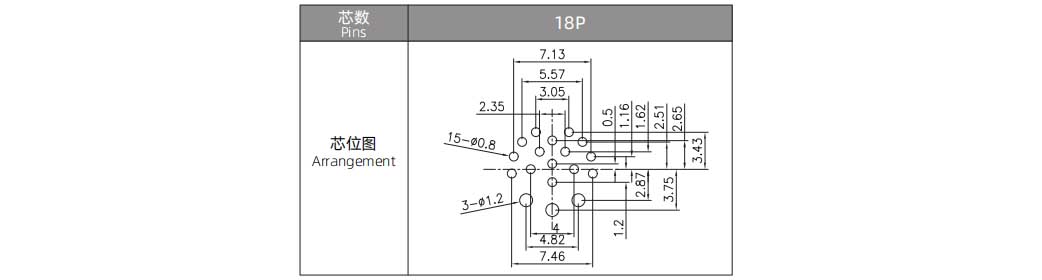

M14 PCB PINS ARRANGEMENT

Product Ordering

Product Name	Product No.	Pins	3D Download	2D Download
M14 Male Back Mount Socket（PCB）Screw M17x0.5	M14-P18-GPFM17	18Pin
