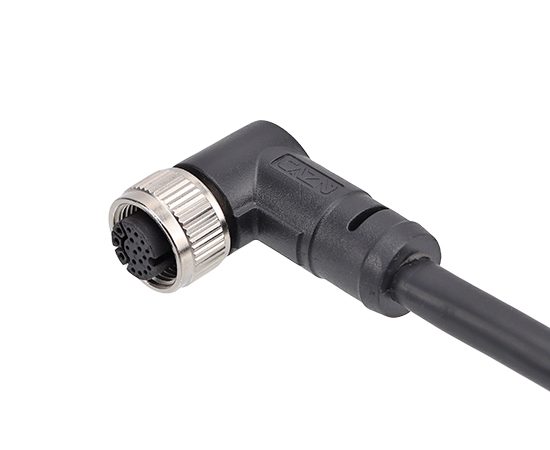

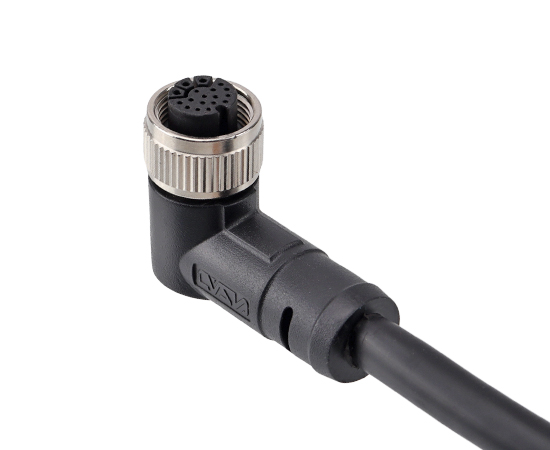

Home / Products / Circular Connector / M14 Connector / Angled Plug / M14 Angled Female Overmolded Plug
Angled Plug
European standard connector: M14 series
Structure type: Curved Overmolded Plug
Connection method: Solder
Pin type: Female
Contacts number: 18pins
Wire material: PVC
Shielded: Yes
Cable length: 1M/2M/5M (customizable)
Certification: CE, RoHS, UL
Product information
PRODUCT PARAMETERS
| Shell material： | Brass/Bass nickel plated |
| Insulator material： | PA66 |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Executive standard： | IPC-A-620 |
M14 ELECTRICAL PARAMETERS
Electrical diagram

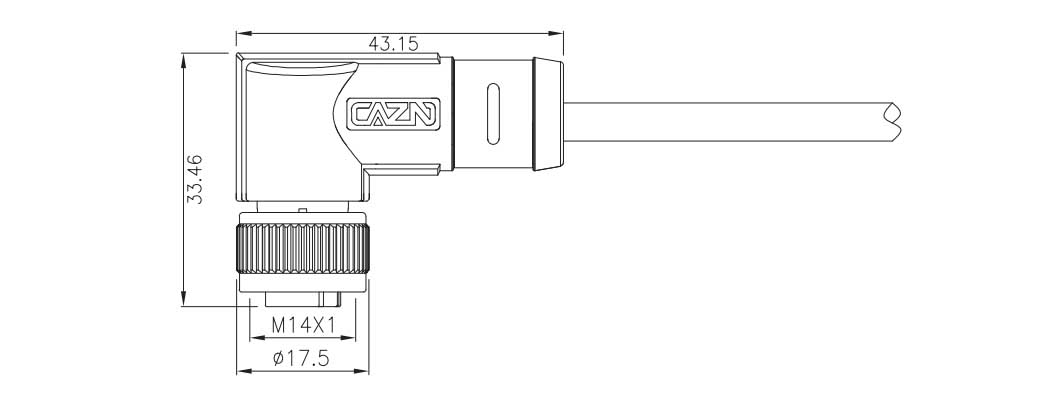

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| M14 Angled Female Overmolded Plug | M14-S18-MWD-xPV-S | 18Pin |
