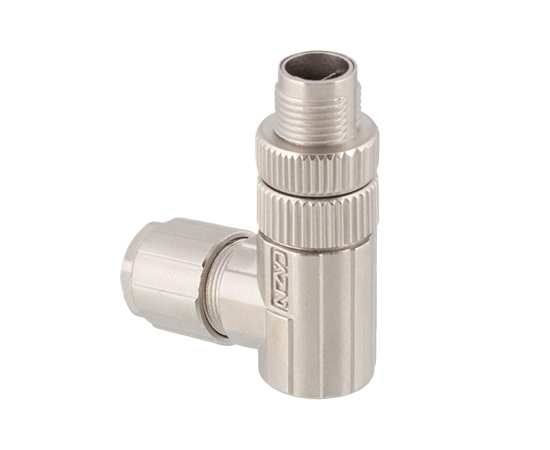

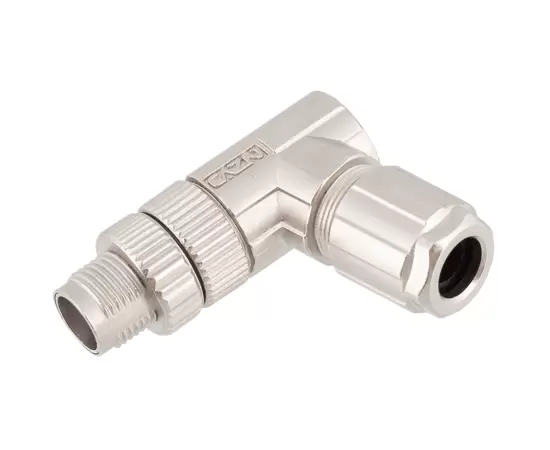

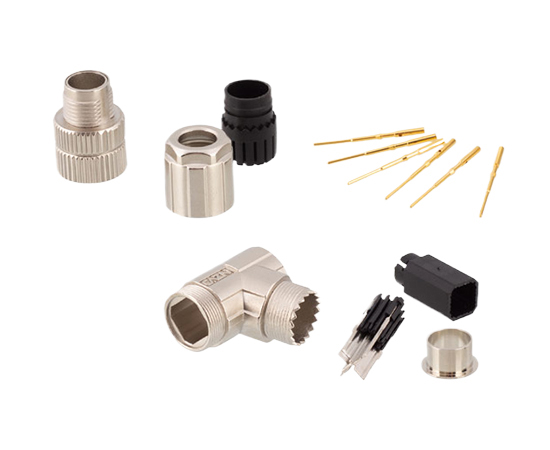

Home / Products / Circular Connector / M12 Connector / X Code/ Y Code / M12 Angled Male Metal Assembled Plug (Data type, Crimp, PG9)
X Code/ Y Code
European standard connector: M12 series
Structure type: Metal Assembled Angled Plug
Connection method: Crimp
Contacts number: 8X,6Y,8Y Pins
Shielded: Yes
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
Pins:
-
Merchant Code:
M12-P8X-GCDP9-ZN
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

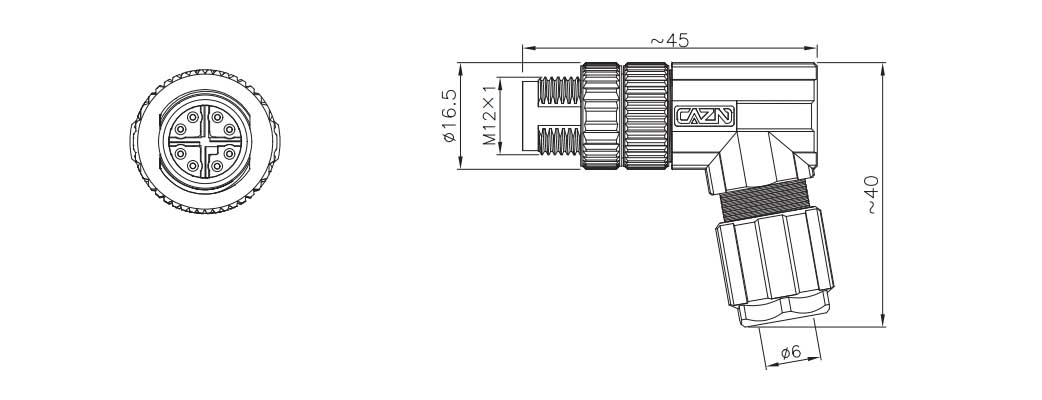

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product NO: | Pins | 3D Download | 2D Download |
| M12 Angled Male Metal Assembled Plug (Data type,Crimp, PG9) | M12-P8X-GCDP9-ZN | 8X |
