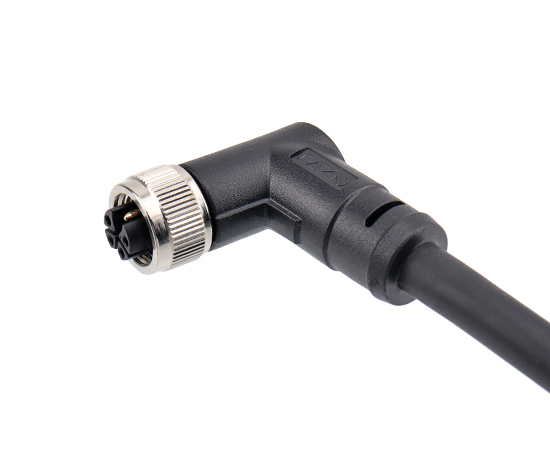

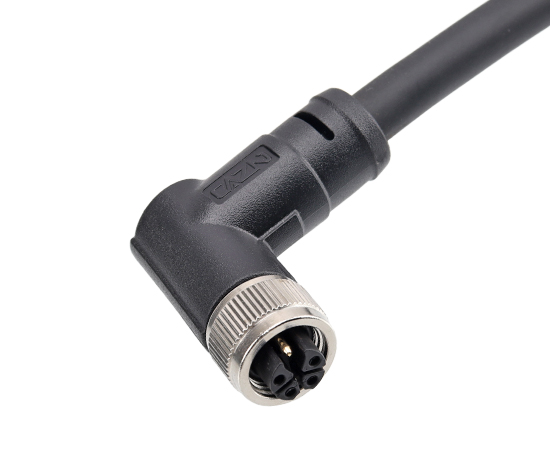

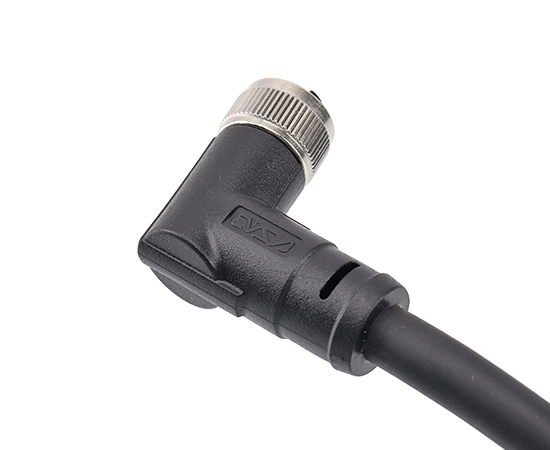

M12 Power Type
European standard connector: M12 series，power type
Structure type: Overmolded angled plug
Connection method: Solder
Pin type: Female
Contacts number:2, 3, 4, 5, 6 pins
Shielded: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
Merchant Code:
M12-S3S-MWD-xPV/xPU
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Molding material： | PVC/PUR |
| Execution standard： | IEC 61076-2-101 |
M12 POWER TYPE ELECTRICAL PARAMETERS
Electrical diagram

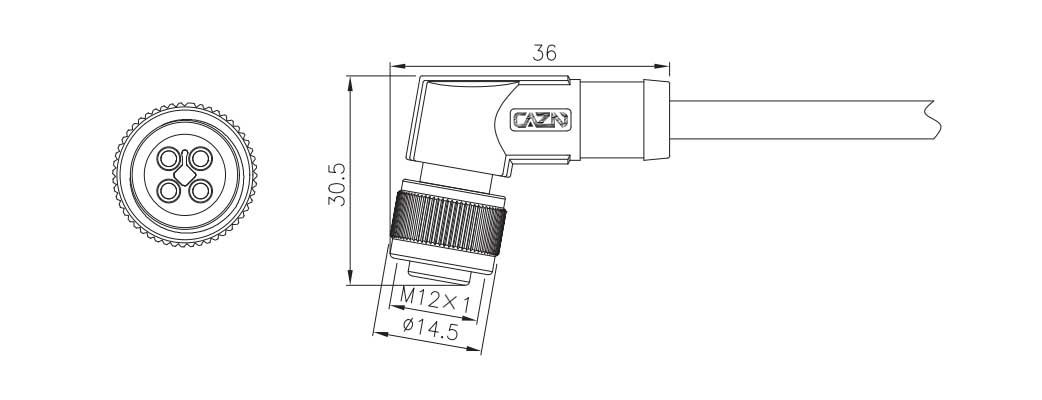

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Part Number | Pins | 3D Download | 2D Download |
| M12 Angled Female Overmolded Plug(Power type) | M12-S3S-MWD-xPV/xPU | (2+PE)S | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S4S-MWD-xPV/xPU | (3+PE)S | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S2T-MWD-xPV/xPU | 2T | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S3T-MWD-xPV/xPU | (2+PE)T | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S4T-MWD-xPV/xPU | (3+PE)T | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S3K-MWD-xPV/xPU | (2+PE)K | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S4K-MWD-xPV/xPU | (3+PE)K | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S5K-MWD-xPV/xPU | (4+PE)K | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S3L-MWD-xPV/xPU | (2+PE)L | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S4L-MWD-xPV/xPU | (3+PE)L | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S5L-MWD-xPV/xPU | (4+PE)L | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S2L-MWD-xPV/xPU-NP | 2L | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S3L-MWD-xPV/xPU-NP | 3L | ||
| M12 Angled Female Overmolded Plug(Power type) | M12-S4L-MWD-xPV/xPU-NP | 4L |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
