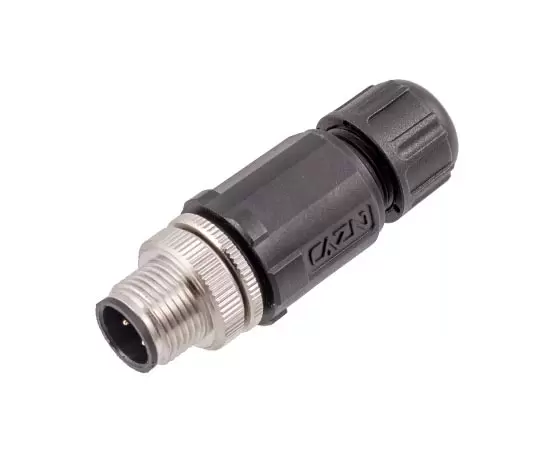

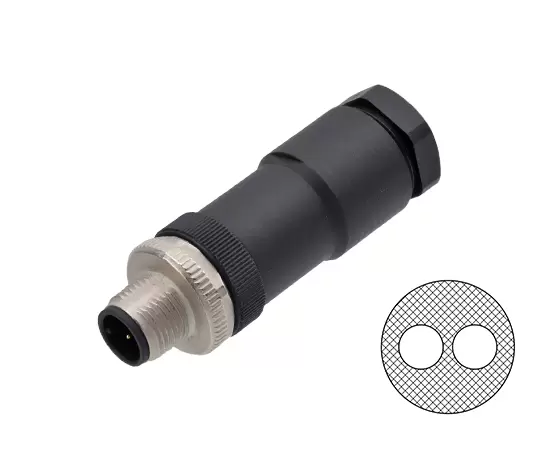

Home / Products / Circular Connector / M12 Connector / Plastic Assembled Plug / M12 Straight Male Plastic Assembled Plug (Solder)

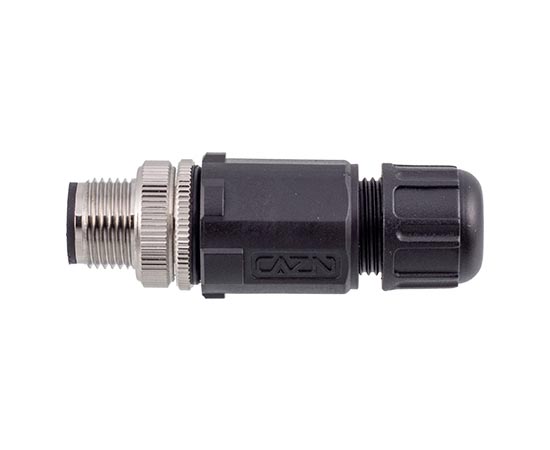

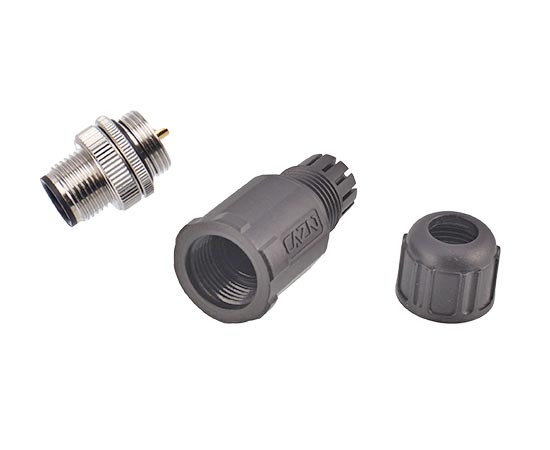

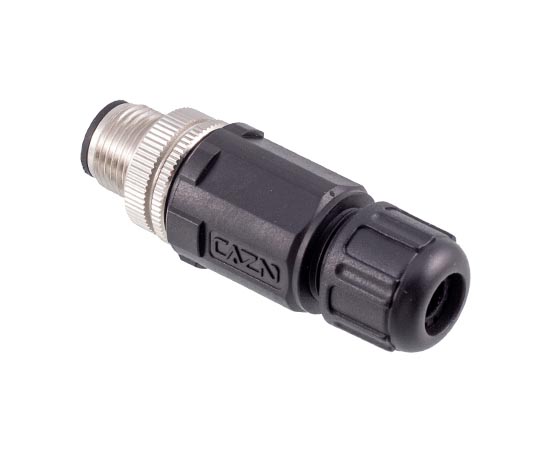

Plastic Assembled Plug
European standard connector: M12 series
Structure type: Plastic Assembled Plug
Pin type: Male type
Contacts number: 2,3,4,5,6,8 ,12,17 Pins
Connection method: Solder
Shielded: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
PG7:
-
Merchant Code:
M12-P2A-PWAP7
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel plating/zinc alloy nickel/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

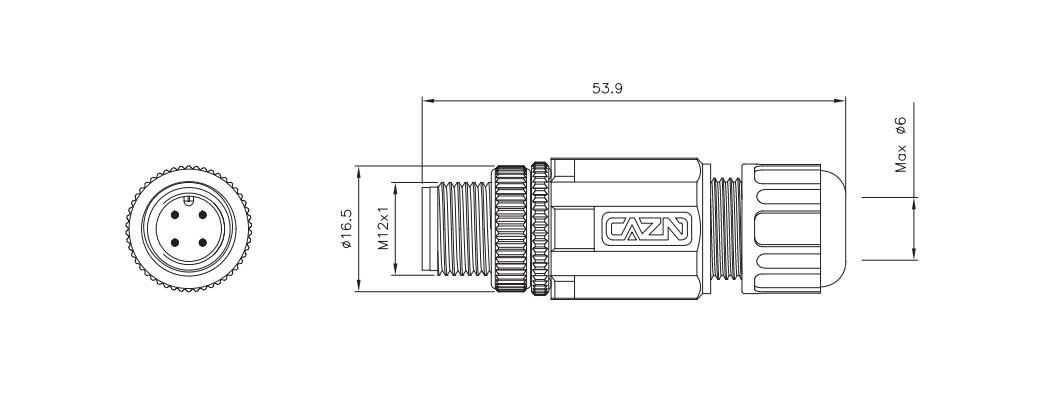

DIMENSION DRAWING

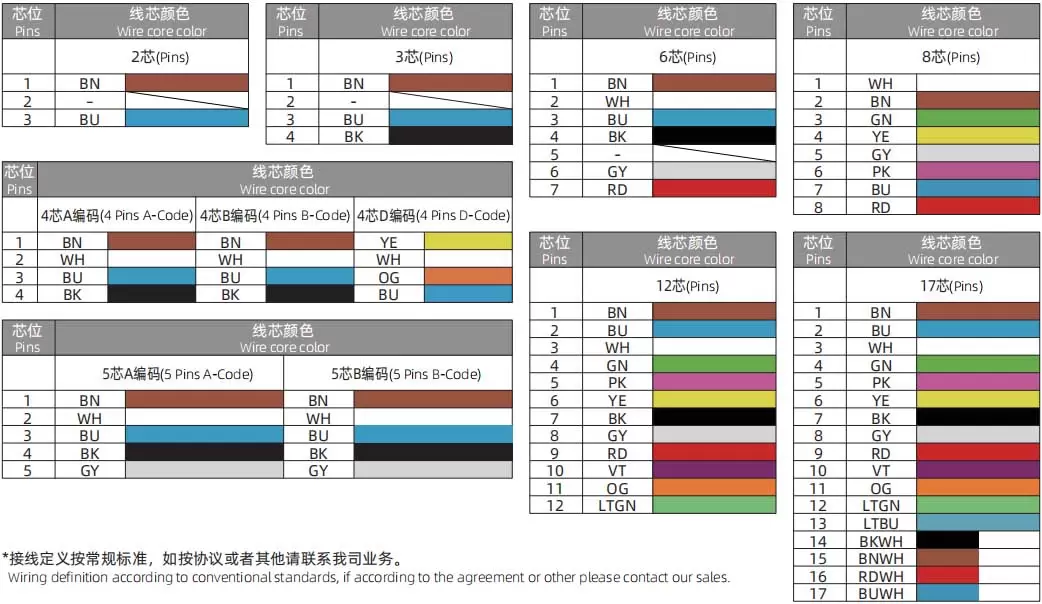

WIRE DEFINITION
Product Ordering
| Product Name | Outlet size-PG7 | Pins | 3D Download | 2D Download |
| Straight Male Plastic Assembled Plug | M12-P2A-PWAP7 | 2A | ||
| Straight Male Plastic Assembled Plug | M12-P3A-PWAP7 | 3A | ||
| Straight Male Plastic Assembled Plug | M12-P4A-PWAP7 | 4A | ||
| Straight Male Plastic Assembled Plug | M12-P4B-PWAP7 | 4B | ||
| Straight Male Plastic Assembled Plug | M12-P4D-PWAP7 | 4D | ||
| Straight Male Plastic Assembled Plug | M12-P5A-PWAP7 | 5A | ||
| Straight Male Plastic Assembled Plug | M12-P5B-PWAP7 | 5B | ||
| Straight Male Plastic Assembled Plug | M12-P5D-PWAP7 | 5D | ||
| Straight Male Plastic Assembled Plug | M12-P6A-PWAP7 | 6A | ||
| Straight Male Plastic Assembled Plug | M12-P8A-PWAP7 | 8A | ||
| Straight Male Plastic Assembled Plug | M12-P12A-PWAP7 | 12A | ||
| Straight Male Plastic Assembled Plug | M12-P17A-PWAP7 | 17A | ||
| Straight Male Plastic Assembled Plug | M12-P3C-PWAP7 | 3C | ||
| Straight Male Plastic Assembled Plug | M12-P4C-PWAP7 | 4C | ||
| Straight Male Plastic Assembled Plug | M12-P5C-PWAP7 | 5C | ||
| Straight Male Plastic Assembled Plug | M12-P6C-PWAP7 | 6C |
