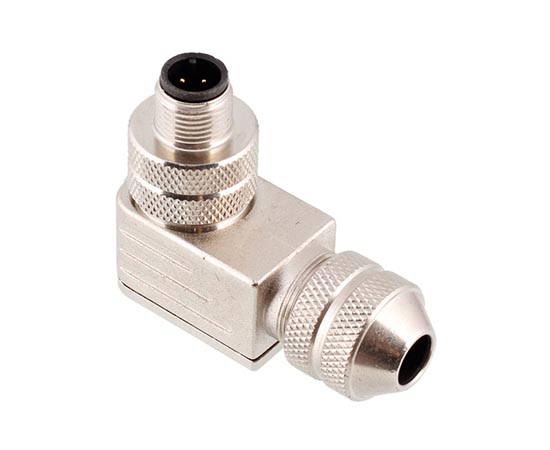

Home / Products / Circular Connector / M12 Connector / Metal Assembled Plug / M12 Angled Male Metal Assembled Plug (Screw)

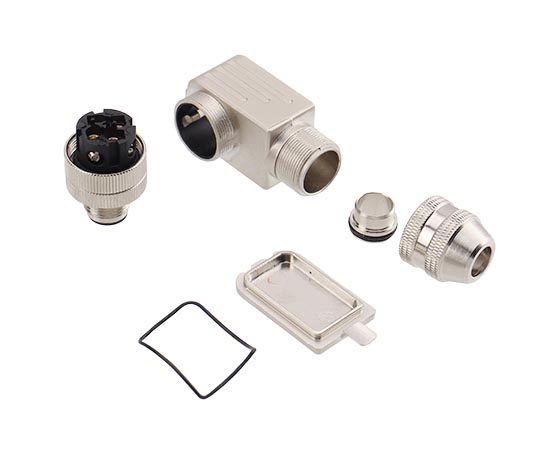

Metal Assembled Plug
European standard connector: M12 series
Structure type: Metal Assembled Curved Plug
Pin type: Male type
Contacts number: 2,3,4,5,6,8 Pins
Connection method: Screw
Shielded: Yes
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
Merchant Code:
M12-P2A-GLDP7-N-TT
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel plating/zinc alloy nickel/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

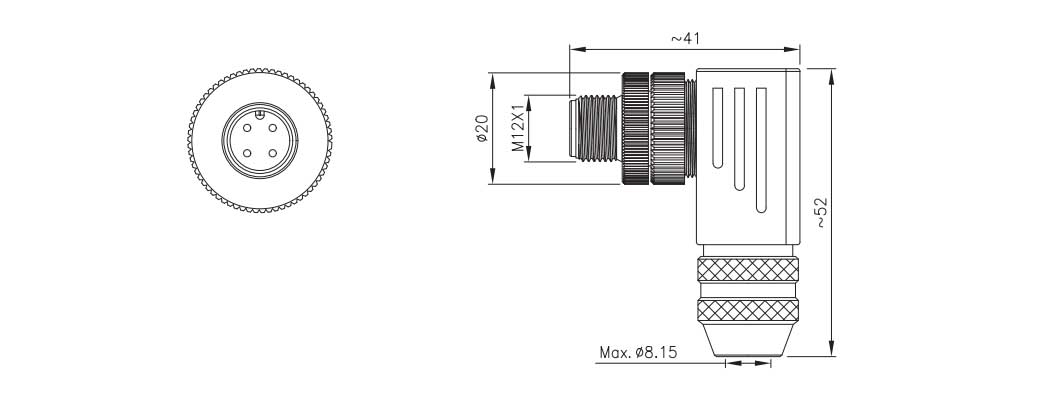

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Outlet size-PG7 | Outlet size-PG9 | Pins | 3D Download | 2D Download |
| M12 Angled Male metal assembled plug | M12-P2A-GLDP7 | M12-P2A-GLDP9 | 2A | ||
| M12 Angled Male metal assembled plug | M12-P3A-GLDP7 | M12-P3A-GLDP9 | 3A | ||
| M12 Angled Male metal assembled plug | M12-P4A-GLDP7 | M12-P4A-GLDP9 | 4A | ||
| M12 Angled Male metal assembled plug | M12-P4D-GLDP7 | M12-P4D-GLDP9 | 4D | ||
| M12 Angled Male metal assembled plug | M12-P5A-GLDP7 | M12-P5A-GLDP9 | 5A | ||
| M12 Angled Male metal assembled plug | M12-P5B-GLDP7 | M12-P5B-GLDP9 | 5B | ||
| M12 Angled Male metal assembled plug | M12-P6A-GLDP7 | M12-P6A-GLDP9 | 6A | ||
| M12 Angled Male metal assembled plug | M12-P8A-GLDP7 | M12-P8A-GLDP9 | 8A |
