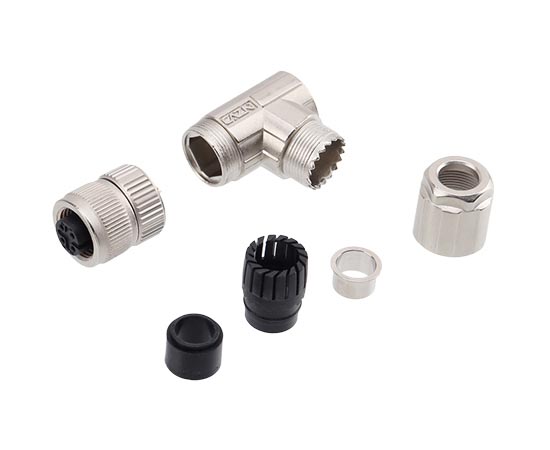

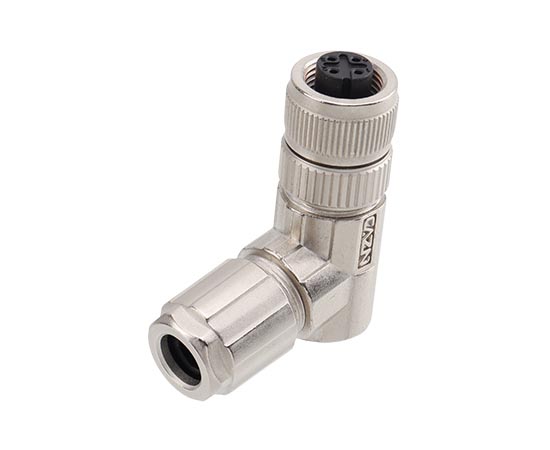

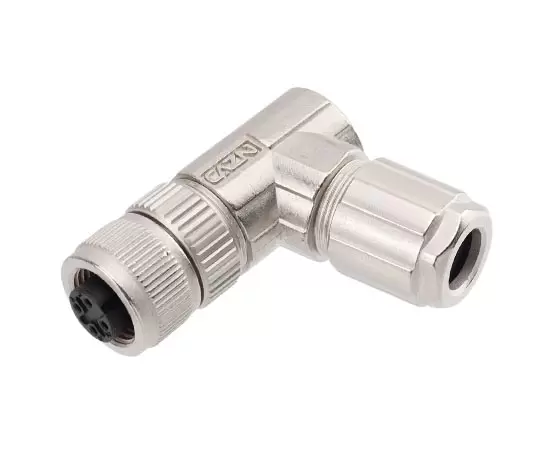

Metal Assembled Plug
European standard connector: M12 series
Structure type: Metal Assembled Curved Plug
Pin type: Female
Contacts number: 2,3,4,5,6,8,12,17 Pins
Connection method: Solder
Shielded: Yes
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
PG9:
-
Merchant Code:
M12-S2A-GWDP9
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel plating/zinc alloy nickel/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

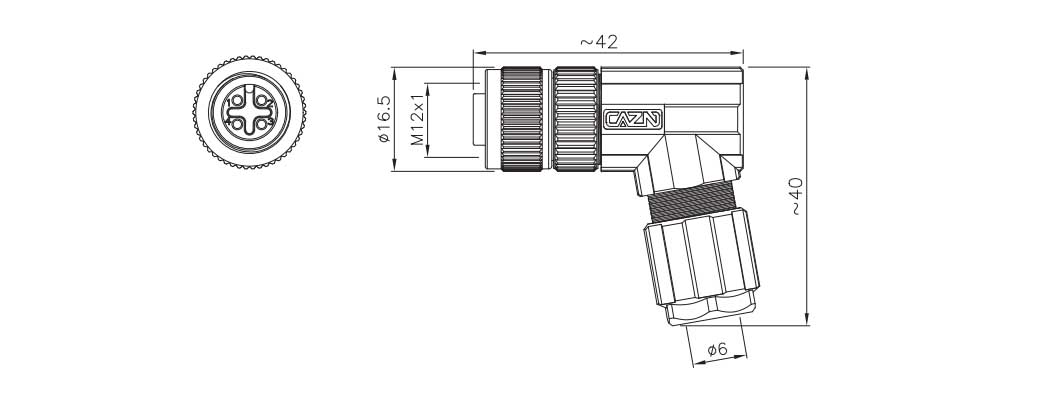

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Outlet size-PG9 | Pins | 3D Download | 2D Download |
| M12 Angled female metal assembled plug | M12-S2A-GWDP9 | 2A | ||
| M12 Angled female metal assembled plug | M12-S3A-GWDP9 | 3A | ||
| M12 Angled female metal assembled plug | M12-S4A-GWDP9 | 4A | ||
| M12 Angled female metal assembled plug | M12-S4D-GWDP9 | 4D | ||
| M12 Angled female metal assembled plug | M12-S5A-GWDP9 | 5A | ||
| M12 Angled female metal assembled plug | M12-S5B-GWDP9 | 5B | ||
| M12 Angled female metal assembled plug | M12-S6A-GWDP9 | 6A | ||
| M12 Angled female metal assembled plug | M12-S8A-GWDP9 | 8A | ||
| M12 Angled female metal assembled plug | M12-S12A-GWDP9 | 12A | ||
| M12 Angled female metal assembled plug | M12-S17A-GWDP9 | 17A |
