Home / Products / Circular Connector / M12 Connector / Back Mount Socket / M12 Male Back Mount Socket (PCB, Screw M12*1)
Back Mount Socket
European standard connector: M12 series
Structure type: Back Mount Socket
Connection method: PCB
Pin type: Male
Contacts number:2, 3, 4, 5, 6, 8, 12, 17pins
Shielded: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
Screw size: M12:
-
Merchant Code:
M12-P2A-GPFM12
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

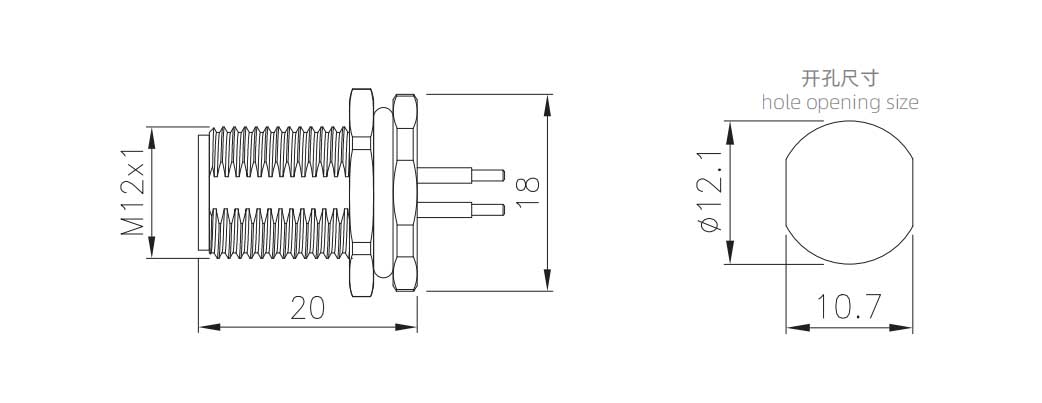

DIMENSION DRAWING
M12 PCB PINS ARRANGEMENT
Product Ordering
| Product Name | Screw size: M12 | Pins | 3D Download | 2D Download |
| M12 Male Back Mount Socket (PCB) | M12-P2A-GPFM12 | 2A | ||
| M12 Male Back Mount Socket (PCB) | M12-P3A-GPFM12 | 3A | ||
| M12 Male Back Mount Socket (PCB) | M12-P3C-GPFM12 | 3C | ||
| M12 Male Back Mount Socket (PCB) | M12-P4A-GPFM12 | 4A | ||
| M12 Male Back Mount Socket (PCB) | M12-P4B-GPFM12 | 4B | ||
| M12 Male Back Mount Socket (PCB) | M12-P4C-GPFM12 | 4C | ||
| M12 Male Back Mount Socket (PCB) | M12-P4D-GPFM12 | 4D | ||
| M12 Male Back Mount Socket (PCB) | M12-P5A-GPFM12 | 5A | ||
| M12 Male Back Mount Socket (PCB) | M12-P5B-GPFM12 | 5B | ||
| M12 Male Back Mount Socket (PCB) | M12-P5C-GPFM12 | 5C | ||
| M12 Male Back Mount Socket (PCB) | M12-P5D-GPFM12 | 5D | ||
| M12 Male Back Mount Socket (PCB) | M12-P6A-GPFM12 | 6A | ||
| M12 Male Back Mount Socket (PCB) | M12-P6C-GPFM12 | 6C | ||
| M12 Male Back Mount Socket (PCB) | M12-P8A-GPFM12 | 8A | ||
| M12 Male Back Mount Socket (PCB) | M12-P12A-GPFM12 | 12A | ||
| M12 Male Back Mount Socket (PCB) | M12-P17A-GPFM12 | 17A |
