Home / Products / Circular Connector / M12 Connector / Back Mount Socket / M12 Female Back Mount Socket (PCB) M16*1.5/PG9

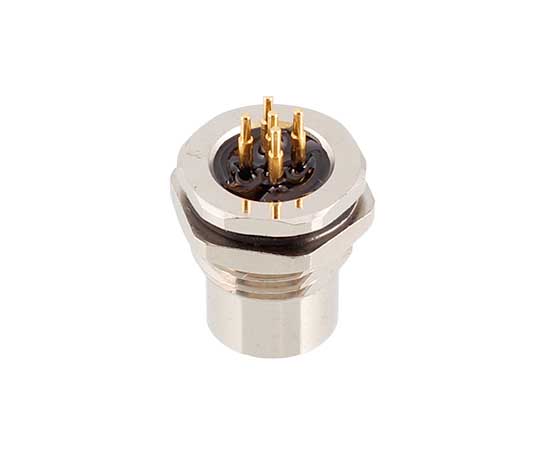

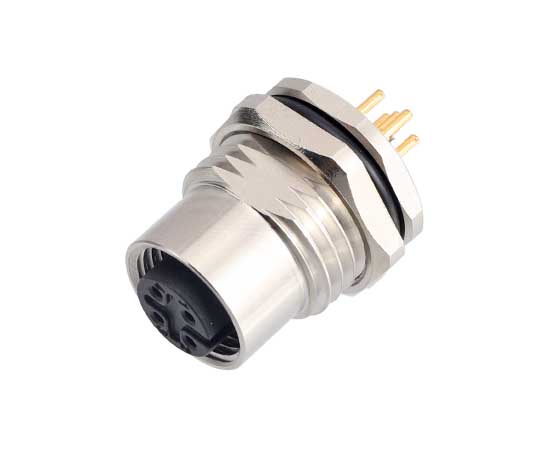

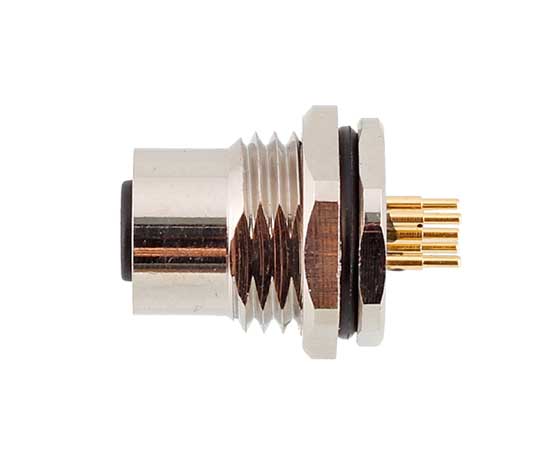

Back Mount Socket
European standard connector: M12 series
Structure type: Back Mount Socket
Connection method: PCB
Pin type: Female
Contacts number:2, 3, 4, 5, 6, 8, 12, 17pins
Shielded: No
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
Screw size:
-
Merchant Code:
M12-S2A-GPFP9
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

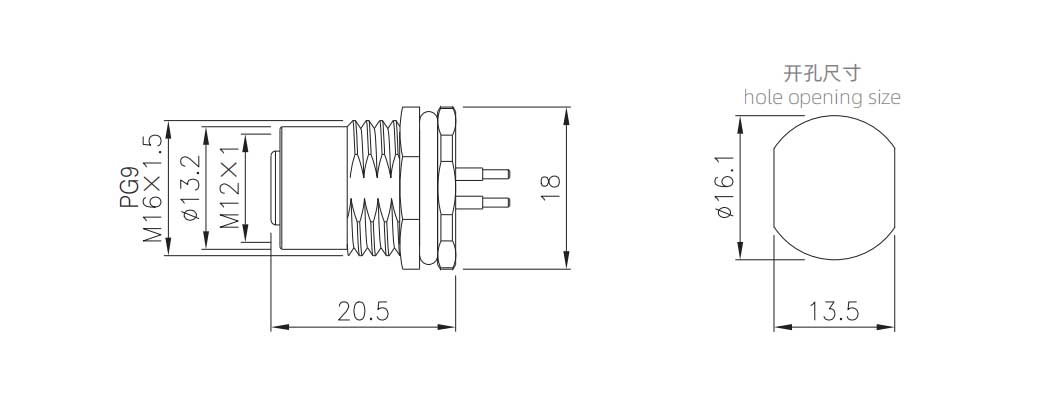

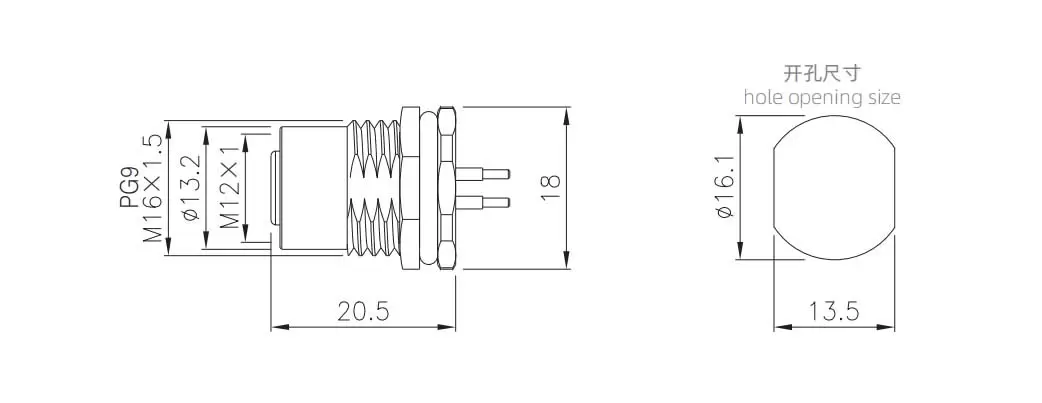

DIMENSION DRAWING
M12 PCB PINS ARRANGEMENT
Product Ordering
| Product Name | Screw size:M16*1.5 | Screw size:PG9 | Pins | 3D Download | 2D Download |
| M12 Female Back Mount Socket (PCB ) | M12-S2A-GPFM16 | M12-S2A-GPFP9 | 2A | ||
| M12 Female Back Mount Socket (PCB） | M12-S3A-GPFM16 | M12-S3A-GPFP9 | 3A | ||
| M12 Female Back Mount Socket (PCB ) | M12-S4A-GPFM16 | M12-S4A-GPFP9 | 4A | ||
| M12 Female Back Mount Socket (PCB ) | M12-S4B-GPFM16 | M12-S4B-GPFP9 | 4B | ||
| M12 Female Back Mount Socket (PCB） | M12-S4D-GPFM16 | M12-S4D-GPFP9 | 4D | ||
| M12 Female Back Mount Socket (PCB ) | M12-S5A-GPFM16 | M12-S5A-GPFP9 | 5A | ||
| M12 Female Back Mount Socket (PCB ) | M12-S5B-GPFM16 | M12-S5B-GPFP9 | 5B | ||
| M12 Female Back Mount Socket (PCB ) | M12-S5D-GPFM16 | M12-S5D-GPFP9 | 5D | ||
| M12 Female Back Mount Socket (PCB ) | M12-S6A-GPFM16 | M12-S6A-GPFP9 | 6A | ||
| M12 Female Back Mount Socket (PCB ) | M12-S8A-GPFM16 | M12-S8A-GPFP9 | 8A | ||
| M12 Female Back Mount Socket (PCB ) | M12-S12A-GPFM16 | M12-S12A-GPFP9 | 12A | ||
| M12 Female Back Mount Socket (PCB） | M12-S17A-GPFM16 | M12-S17A-GPFP9 | 17A | ||
| M12 Female Back Mount Socket (PCB） | M12-S3C-GPFM16 | M12-S3C-GPFP9 | 3C | ||
| M12 Female Back Mount Socket (PCB） | M12-S4C-GPFM16 | M12-S4C-GPFP9 | 4C | ||
| M12 Female Back Mount Socket (PCB） | M12-S5C-GPFM16 | M12-S5C-GPFP9 | 5C | ||
| M12 Female Back Mount Socket (PCB） | M12-S6C-GPFM16 | M12-S6C-GPFP9 | 6C |
