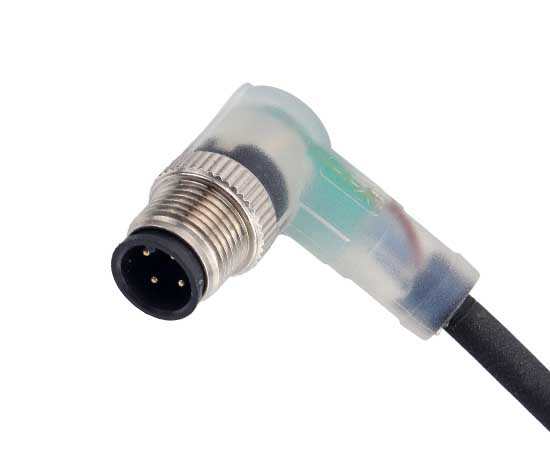

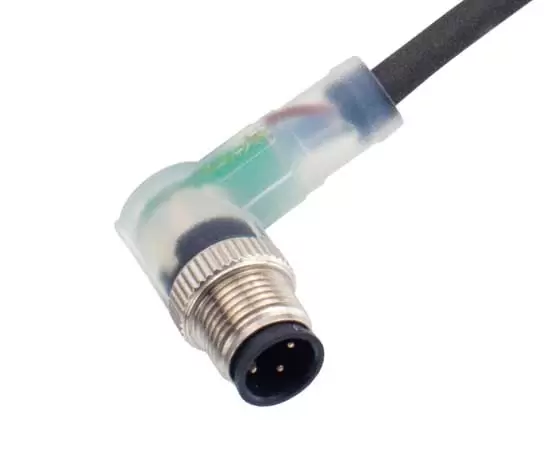

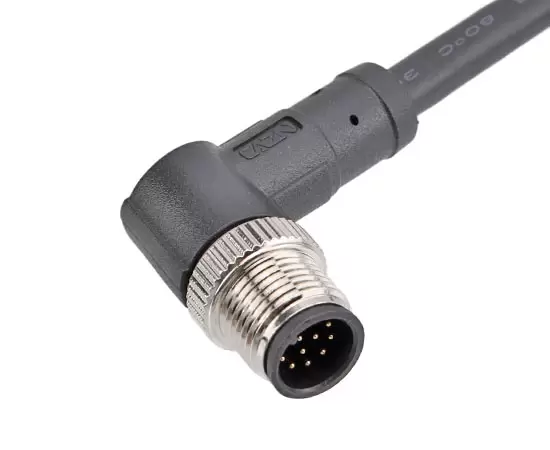

Angled Plug
European standard connector: M12 series
Structure type: Curved overmolded plug
Connection method: Solder
Pin type: Male type
Contacts number:3, 4, 5pins
Wire material: PVC/PUR
Shielded: Two options，Shielded/Unshielded
Cable length: 1M/2M/5M (customizable)
Certification: CE,RoHS,UL
Standard: IEC 61076-2-101
-
Merchant Code:
M12-P3A-MWD-1PV-LP2
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Molding material： | PVC/PUR |
| Execution standard： | IEC 61076-2-101 |
M12 ELECTRICAL PARAMETERS
Electrical diagram

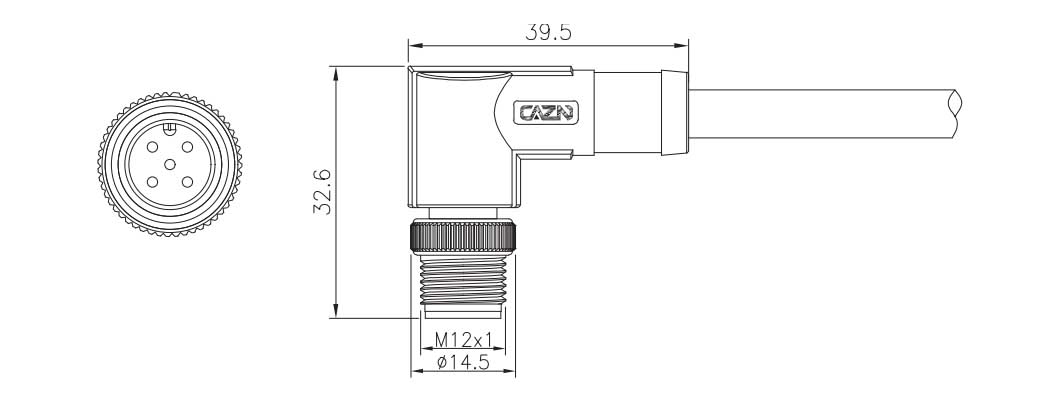

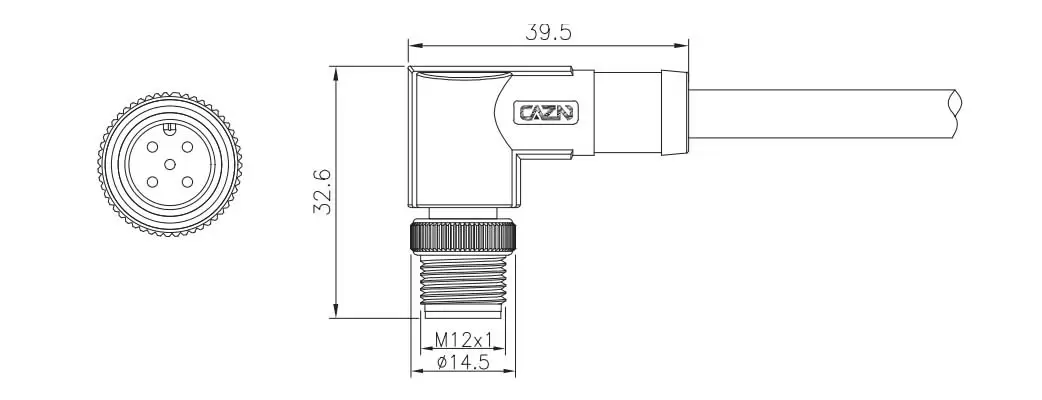

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | LED Qty | Product NO: | Pins | 3D Download | 2D Download |
| M12 Angled Male Overmolded Plug (LED) | 2 PNP | M12-P3A-MWD-1PV-LP2 | 3A | ||
| M12 Angled Male Overmolded Plug(LED) | 2 PNP | M12-P4A-MWD-1PV-LP2 | 4A | ||
| M12 Angled Male Overmolded Plug(LED) | 2 PNP | M12-P5A-MWD-1PV-LP2 | 5A | ||
| M12 Angled Male Overmolded Plug(LED) | 3 PNP | M12-P5A-MWD-1PV-LP3 | 5A |
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
