Front Mount Socket

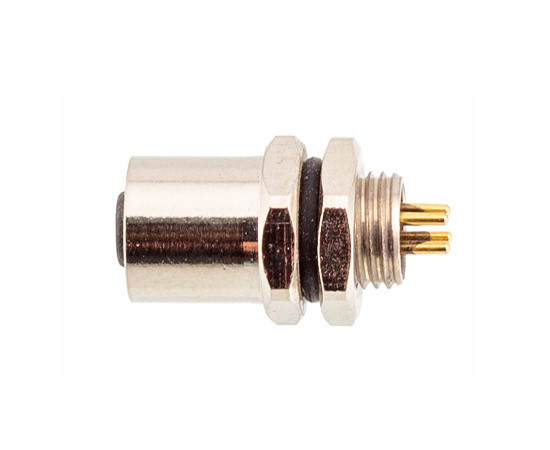

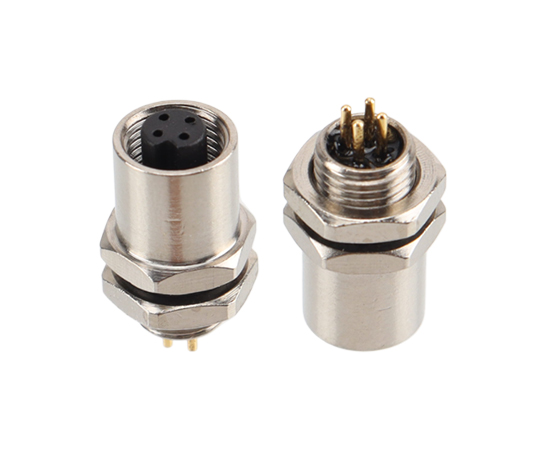

M5 Female Front Mount Socket ( PCB )
<>

European Standard Connector: M5 series (IEC 61076-2-105)

Structure Type: Front Mount Socket

Connection Method: PCB

Gender: Female

Number of Cores: 3-pin / 4-pin

Shielded: No

Protection Degree: IP65 / IP67

Product Certifications: CE, UL, RoHS, REACH

Factory Certifications: ISO9001, IATF16949, ISO14001, ISO45001


Free samples available for engineers and project evaluation.

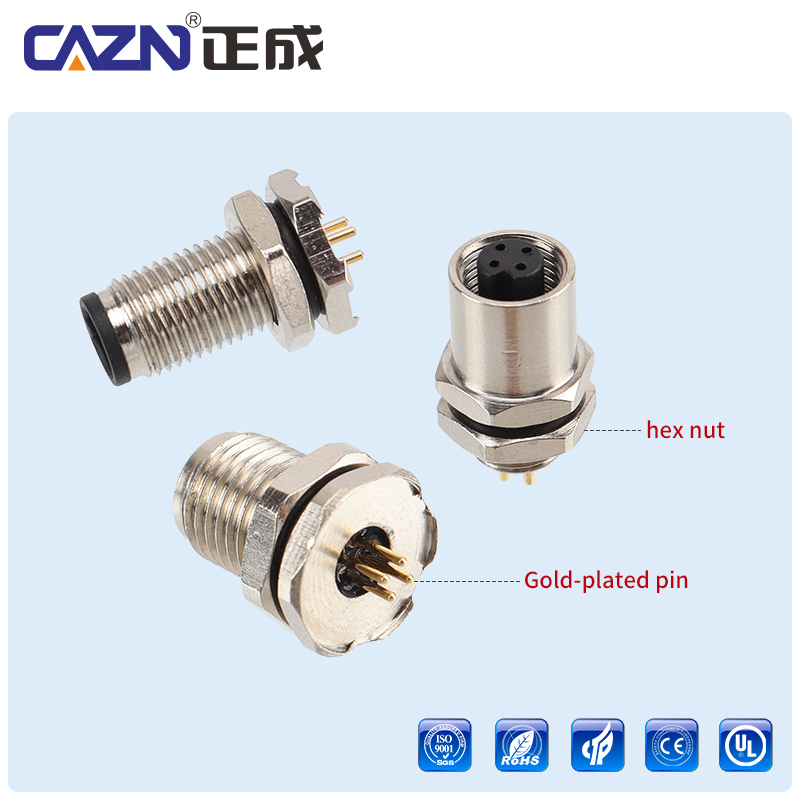

Product information
PRODUCT PARAMETERS
Shell material:Brass nickel-plated
Sealing material:Epoxy resin / Rubber
Contact material:Phosphorus copper gold-plated / Brass copper gold-plated
Insulator material:PA66
Gender:Female
Insulation impedance:≥100 MΩ
Contact impedance:≤5 mΩ
Durability:≥500 Cycles
Applicable temperature:-25℃ ~ +80℃
Waterproof grade:IP65 / IP67
Execution standard:IEC 61076-2-105
ELECTRICAL PARAMETERS

PinsMaleRated currentRated voltageConductor SizeFemale
A/CD/CAWGmm²
3

1A60V60V260.14

4

1A60V60V260.14


FAQ for CAZN Industrial Connectors


Q1: What is your MOQ (Minimum Order Quantity) for connectors?
A: As a direct source factory, our MOQ starts at just 5 PCS for most products. We keep inventory for standard parts, and in-stock items can be dispatched within 48 hours.


Q2: Can you provide custom connector services?
A: Absolutely. As a source factory, CAZN features a complete in-house production chain, including mold processing, injection molding, and a hardware machining workshop. We can fully customize connectors based on your drawings or physical samples.


Q3: How much is the molding charge for R&D and customizing connectors?
A: Molding charges vary depending on the specific product design and dimensions. Please click the "Send Inquiry" button below or email your detailed requirements to our sales team, and we will provide an accurate quotation.


Q4: Can we become your local distributor/agent?
A: We are highly open to discussing distribution partnerships. If you have a stable customer base in your region and experience in the connector industry, please contact our sales team for detailed partnership terms.


Q5: Are your connectors compatible with other brands?
A: Yes. Our connectors feature a standard interface design, and most of our products are highly compatible with corresponding interfaces from other major brands.


Q6: Can you give us a brief introduction to CAZN's factory capabilities?
A: CAZN is a leading source factory specializing in the R&D and manufacturing of industrial connectors. With over 10 years of industry experience, our factory is certified with ISO9001, IATF16949, ISO14001, and ISO45001. Our products hold CE, UL, RoHS, REACH, and IP67 test certifications. We have a workforce of over 300 employees, strong OEM/ODM mass production capabilities, and we are always happy to provide free samples for your testing.

Electrical diagram

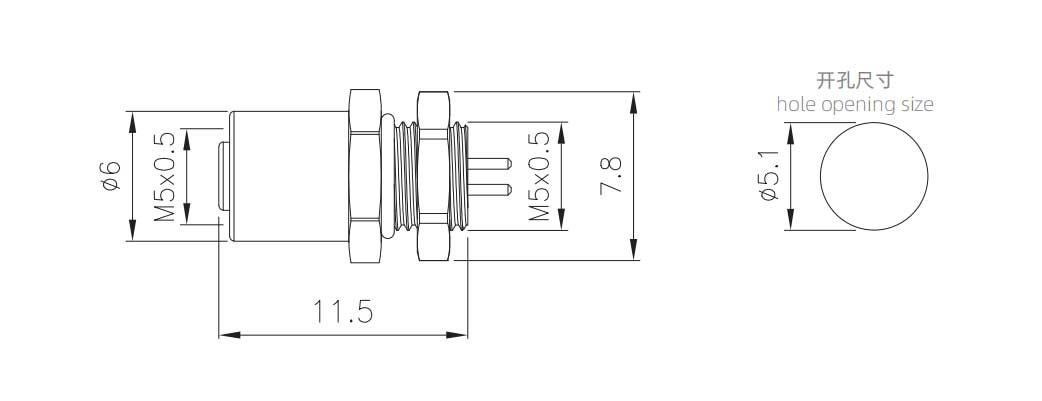

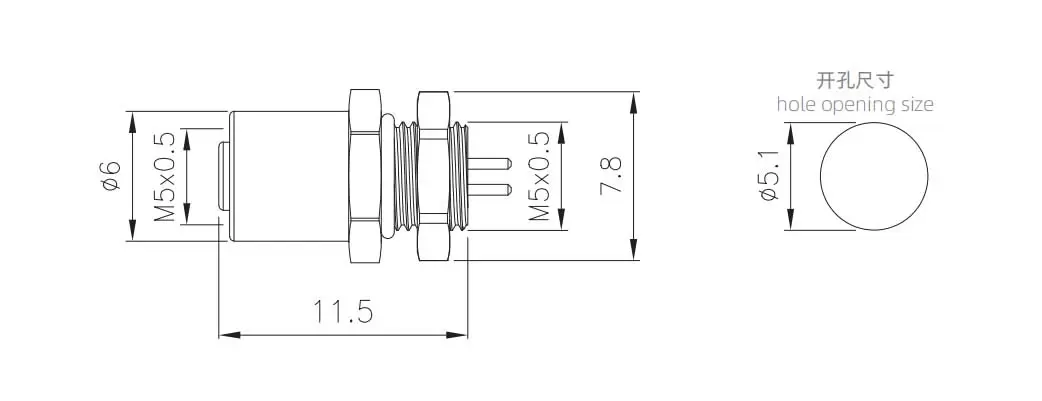

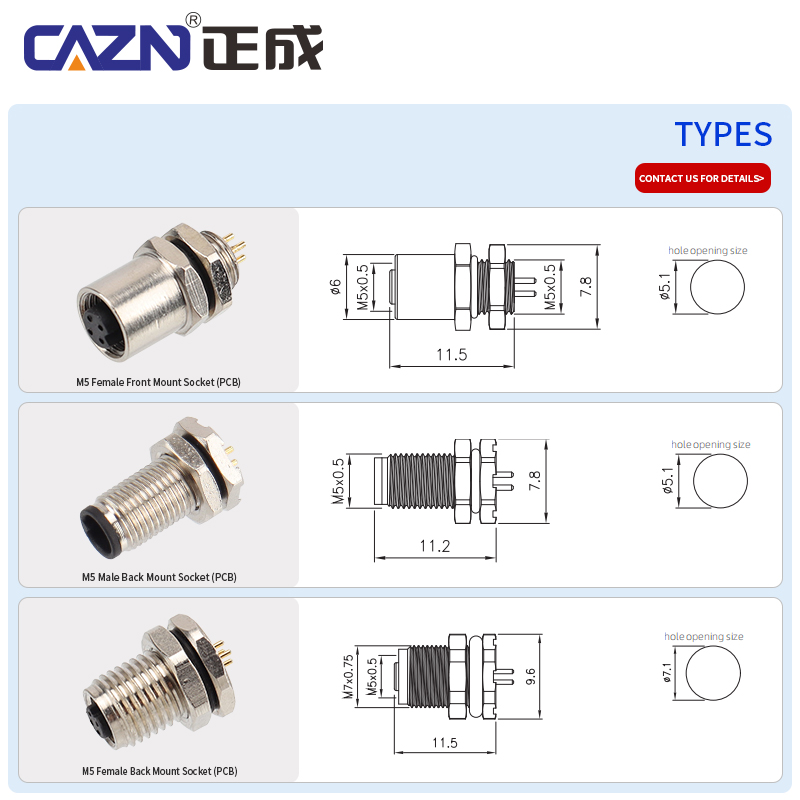

DIMENSION DRAWING

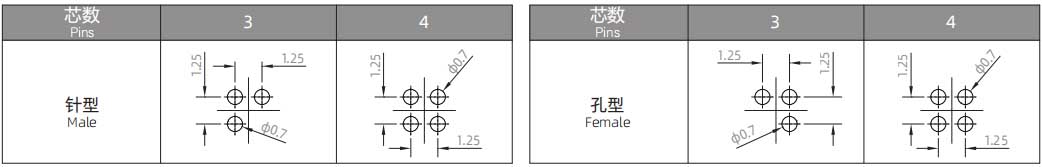

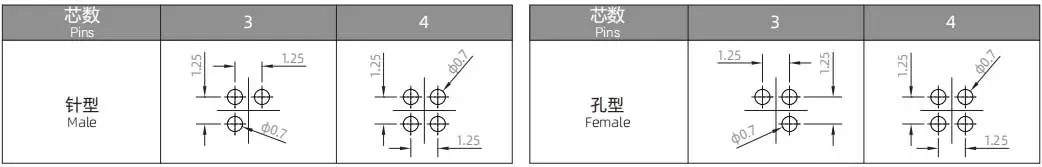

M5 PCB PINS ARRANGEMENT
