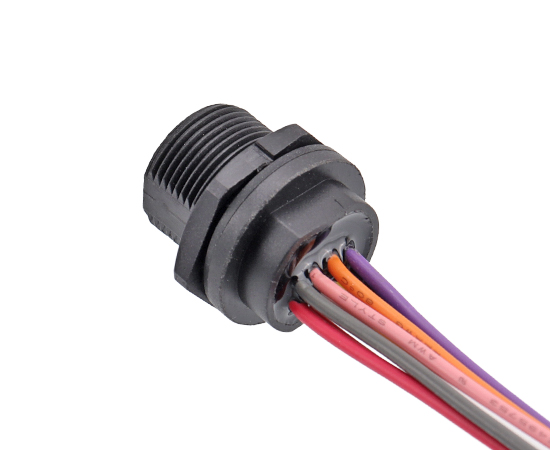

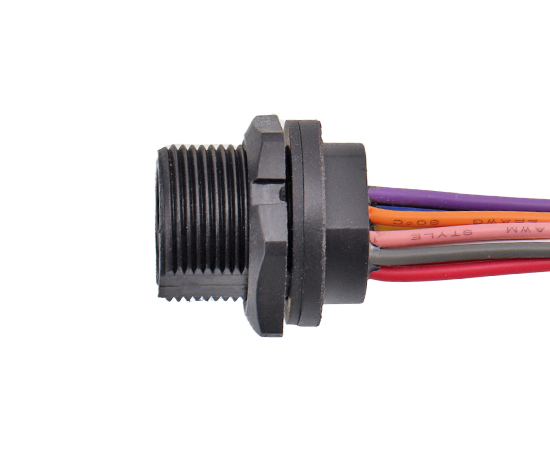

TYPE-C Female Back Mount Receptacle with Wire (Threaded)

PRODUCT CENTER

TYPE-C with wire

TYPE-C Female Back Mount Receptacle with wire(Threaded)

TYPE-C Female Back Mount Receptacle with wire(Threaded)

Plastic waterproof connector：TYPE-C series

Structure type: Back Mount Receptacle

Gender: Female with wire

Coupling: Threaded(T)

Standard: TYPE-C 3.0、TYPE-C 3.1

Shielded: Customization

Certification: CE、RoHS

Standard:
Type-C3.0
Merchant Code:
E10T-FT3-PWF-0.2PV

INQUIRY

DOWNLOAD

Product information

PRODUCT PARAMETERS

Shell material:	Thermoplastic plastic PA66, flame retardant grade: V-0
Contact material:	Brass
Cable material:	PVC
Coupling:	Thread (T); Bayonet(B)
Waterproof grade:	IP67，IP68
Rated voltage	30V
Rated current	1.5A
Insulation resistance:	2000 mΩ
Applicable temperature:	-40℃ ~ +105℃
Durability:	≥500(Cycles)

Electrical diagram

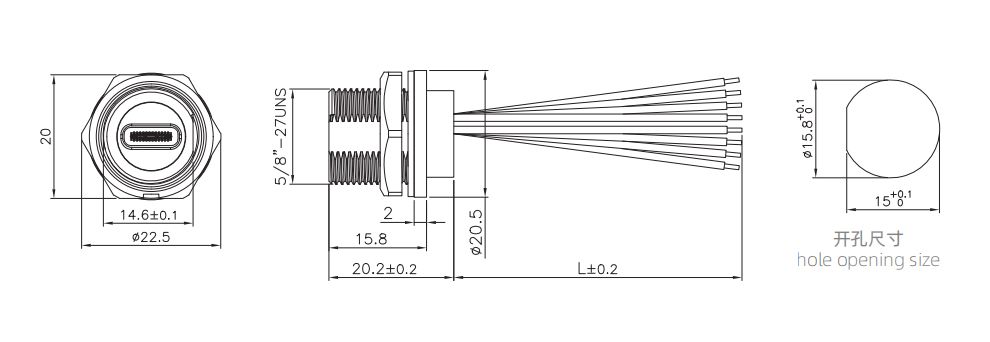

DIMENSION DRAWING

Product Ordering

Product Name	Standards	P/N	3D Download	2D Download
TYPE-C Female Back Mount Receptacle with wire(Threaded)	TYPE-C 3.0	E10T-FT3-PWF-0.2PV

*If need to order other collocation or wire, please consult customer service
