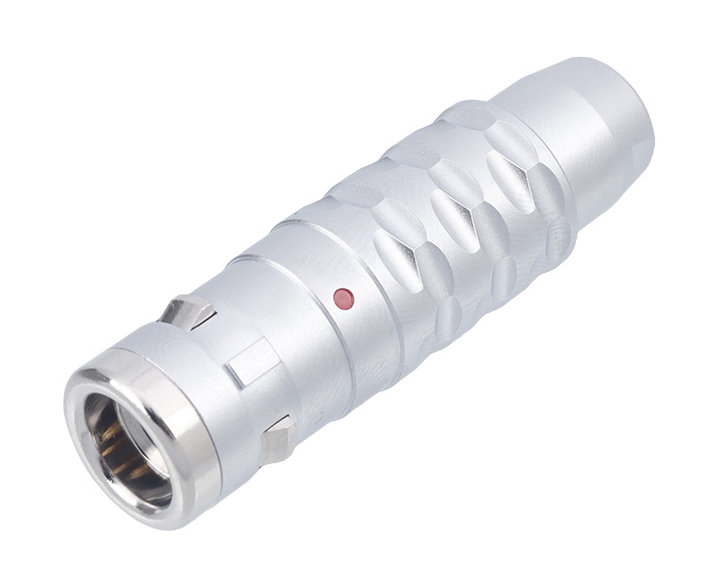

TGG Straight plug
– Security of the push-pull self-locking system ;
– Waterproof connection (IP68/IP66) ;
– Multipole types 2~30 Contacts ;
– Solder, Crimp or Print(Straight or elbow);
– Keying system (G key standard)for connector alignment
– Multiple Key options to avoid cross mating of similar connectors;
– 360° screening for full EMC protection(Anti-electromagnetic interferenc)
– High packing density for space savings
– Rugged housing for extreme working conditions
-
Merchant Code:
TGG.0K.302.CLAC32/42/52
Product information
TECHNICAL PARAMATERS
| Coupling： | Push pull self-locking |
| Operating temperature： | -45℃ ~ +125℃ |
| Humidity： | Up to 95% at 60°C/140°F |
| Anti-vibration performance： | 15g [10-2000 Hz] |
| Impact resistance： | 100g, 6ms |
| Salt spray corrosion test： | >96 h |
| Protection level： | IP68 |
| Insulation impedance： | ≥100 mΩ |
| Shielding performance： | >95dB (10MHz); >80dB (1GHz) |
| Mechanical life： | >5000 Cycles |
Electrical diagram
Dimensions
Product Ordering
