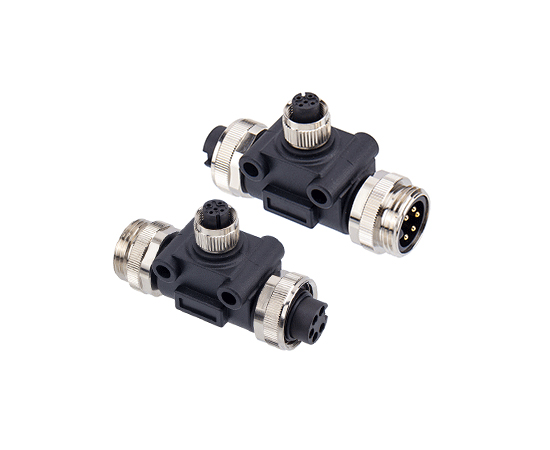

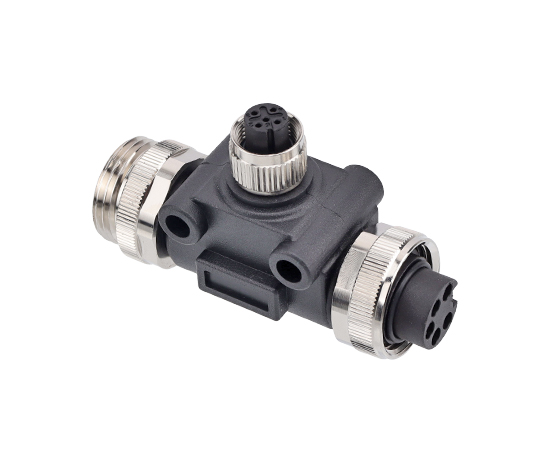

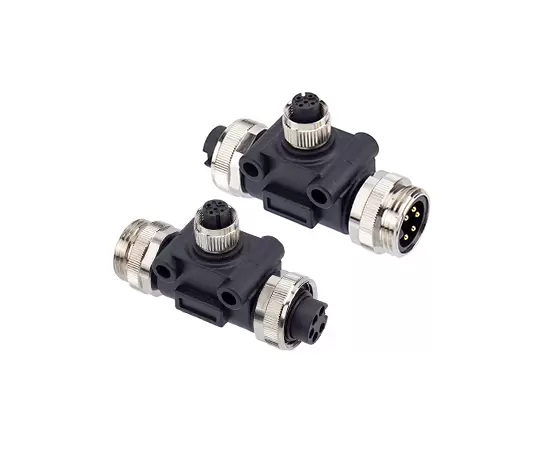

T-Type Adapter
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Executive standard： | IEC 61076-2-101 |
7/8 ELECTRICAL PARAMETERS
Electrical diagram

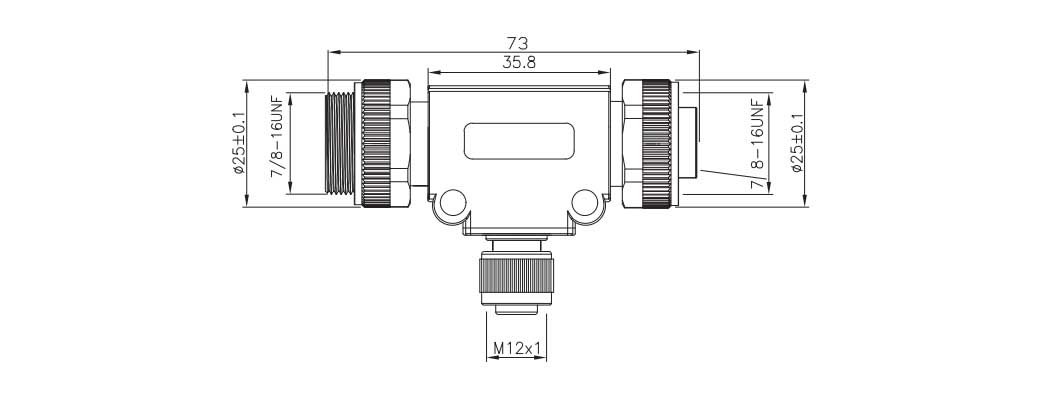

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. | Pins | 3D Download | 2D Download |
| 7/8 T-Type Adapter to M12(PSS Type) | M12-S3A-7V8PS3-TSCNY | 3 | ||
| 7/8 T-Type Adapter to M12(PSS Type) | M12-S4A-7V8PS4-TSCNY | 4 | ||
| 7/8 T-Type Adapter to M12(PSS Type) | M12-S5A-7V8PS5-TSCNY | 5 |
