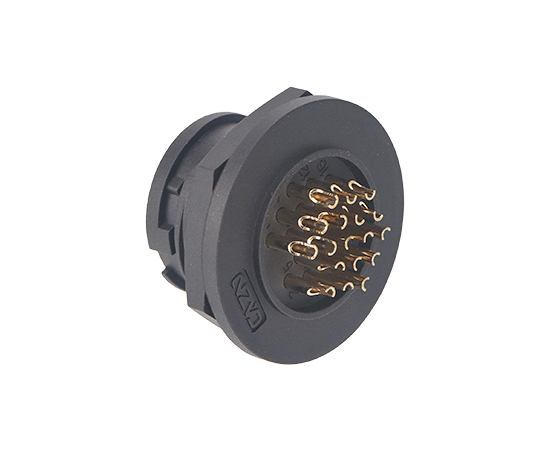

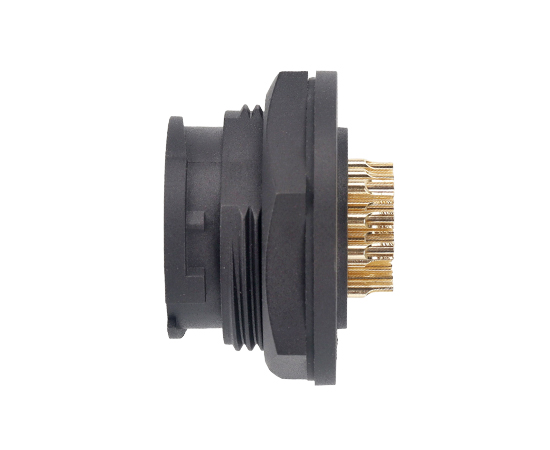

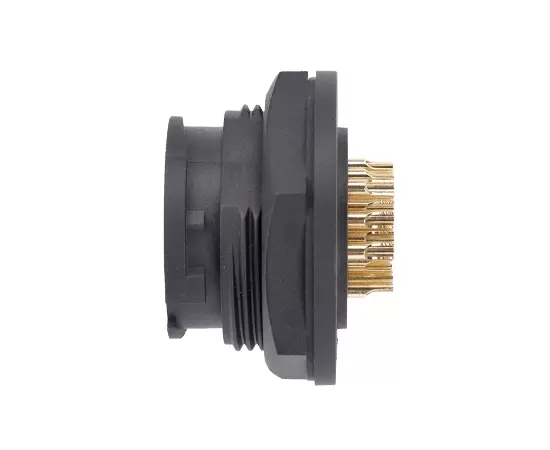

Home / Products / E Waterproof Connector / E16 Waterproof Connector / Socket(Bayonet) / E16 Male Back Mount Solder Receptacle(Bayonet)
Socket(Bayonet)
Plastic waterproof connector: E16 series
1"-20UNEF U.S. standard screw
Structure type: Back Mount Solder Receptacle
Pin type: Male
Coupling: Bayonet(B)
Number of cores: 2, 3, 4, 5, 6, 7, 18, 20, 21, 22pins
Termination way: Solder
Shielded: No
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Copper gold-plated |
| Pins number： | 2-22 pins，Current: high current、low current and Mix-current |
| Coupling: | Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 6.0mm~13.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 1"-20UNEF |
E16 ELECTRICAL PARAMETERS
Electrical diagram

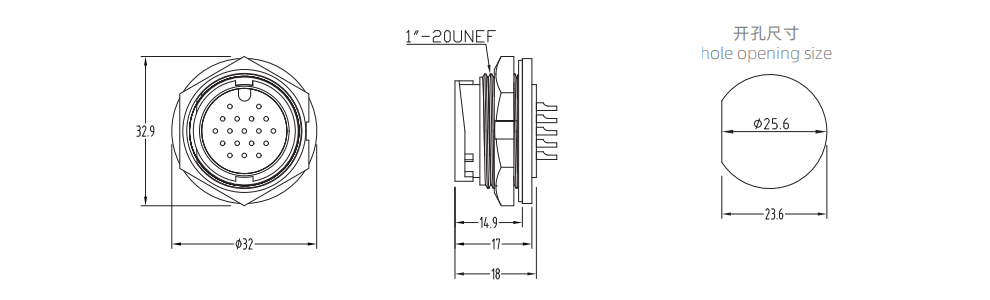

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E16 Male Back Mount Solder Receptacle(Bayonet) | 250~500V | 20A | E16B-P2-PWF | 2 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 250~500V | 20A | E16B-P3-PWF | 3 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 250~500V | 20A | E16B-P4-PWF | 4 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 250V | 20A | E16B-P5-PWF | 5 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 250V | 20A | E16B-P6-PWF | 6 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 250V | 20A | E16B-P7-PWF | 7 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 50V | 5A | E16B-P18-PWF | 18 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 50V | 2A | E16B-P20-PWF | 20 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 50V | 2A | E16B-P21-PWF | 21 | ||
| E16 Male Back Mount Solder Receptacle(Bayonet) | 50V | 2A | E16B-P22-PWF | 22 |
