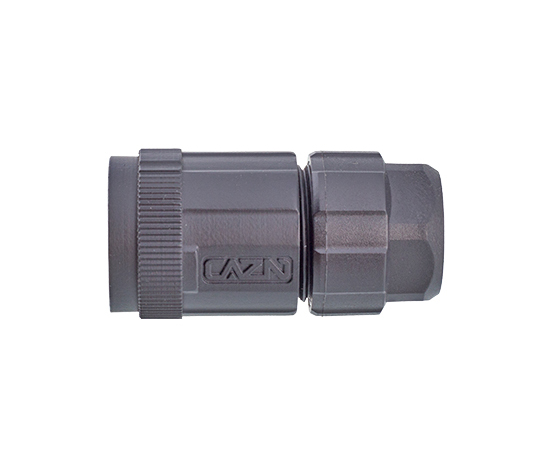

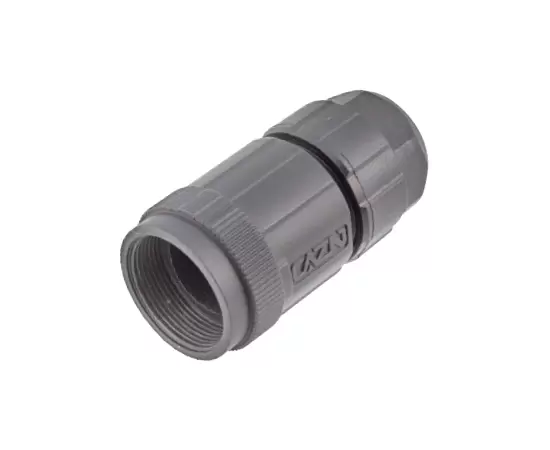

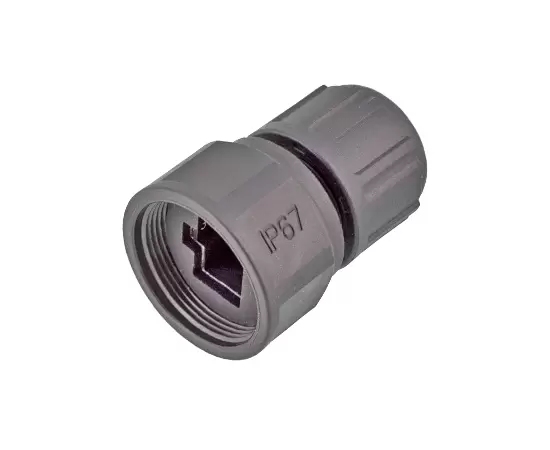

Home / Products / E Waterproof Connector / E-RJ45 / Plastic Plug / RJ45 Straight Male Plastic Plug(Threaded)-NR(Connecting nut can not be rotated)
Plastic Plug
Plastic waterproof connector: E-RJ45 series
Structure type: RJ45 Straight Plastic Plug
Pin type: Male
Coupling: Threaded(T)
Standard: CAT5e, CAT6a
Certification: CE、RoHS
-
OD:
-
Merchant Code:
E13T-MRJ-PRAP9-NR
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Conform standard: | CAT5e, CAT6a |
| Durability： | ≥750 Cycles |
| Contact impedance： | ≤5mΩ |
| Wiring range: | 5.5mm~7.0mm |
| Waterproof grade： | IP67 |
| Applicable temperature： | -30℃ ~ +105℃ |
Electrical diagram

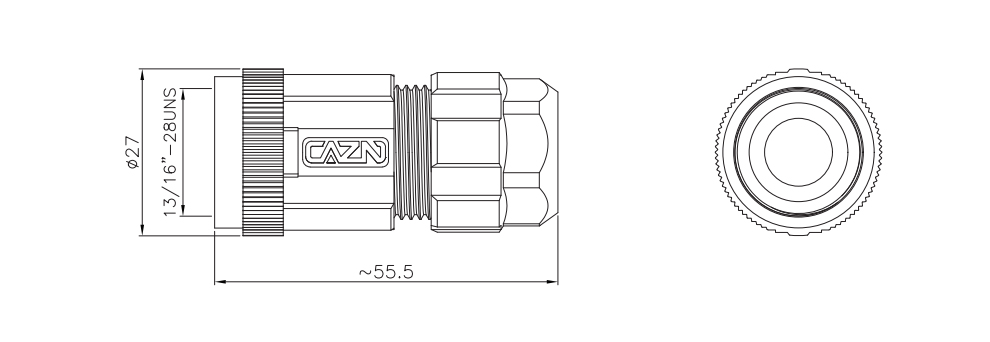

DIMENSION DRAWING
Product Ordering
