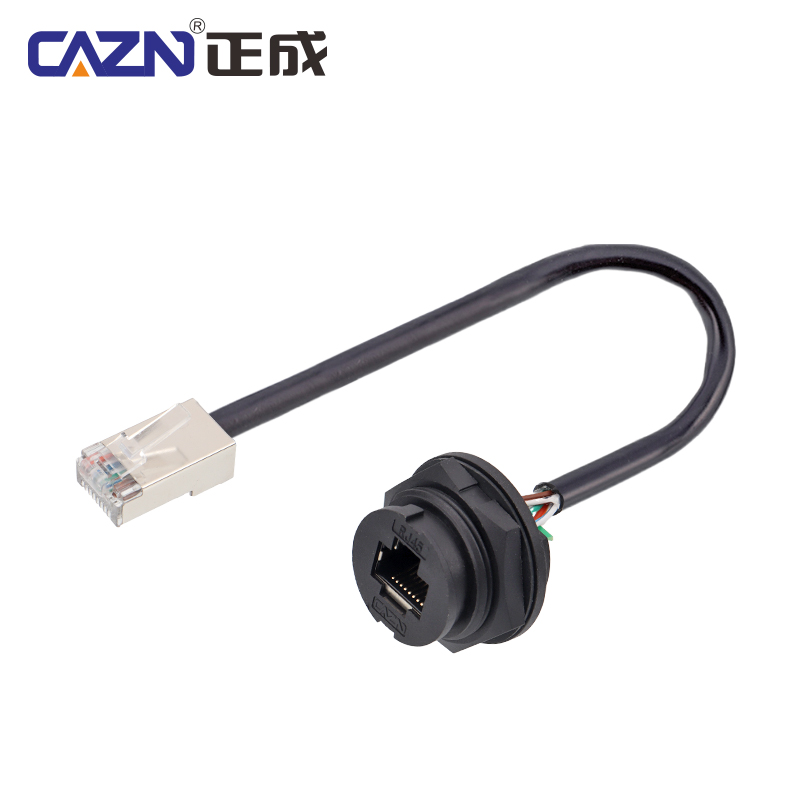

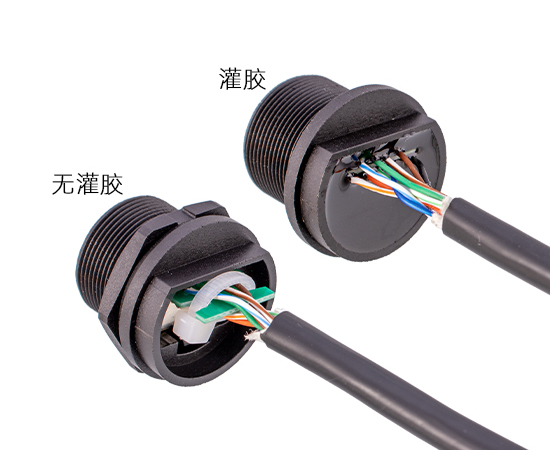

Plastic waterproof connector: E-RJ45 series
Structure type: Back Mount Receptacle（non-glued）
Pin type: Female to Male
Coupling: Threaded(T)
Standard: CAT5e, CAT6a
Shielded: Yes
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Conform standard: | CAT5e, CAT6a |
| Durability： | ≥750 Cycles |
| Contact impedance： | ≤5mΩ |
| Wiring range: | 5.5mm~7.0mm |
| Waterproof grade： | IP67 |
| Applicable temperature： | -30℃ ~ +105℃ |
Electrical diagram

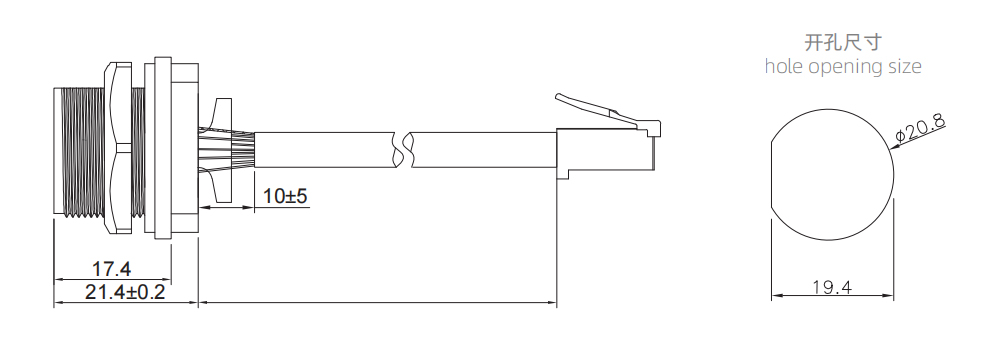

DIMENSION DRAWING
Product Ordering
| Product Name | Specification | Wire Length | P/N | 3D Download | 2D Download |
| Female Back Mount Receptacle with wire（non-glued） | 5E | 0.3M | E13T-FR5-PWF/MR5-NCA-0.3PV-JD-PCB | ||
| Female Back Mount Receptacle with wire（non-glued） | 5E | 0.5M | E13T-FR5-PWF/MR5-NCA-0.5PV-JD-PCB | ||
| Female Back Mount Receptacle with wire（non-glued） | 5E | 1M | E13T-FR5-PWF/MR5-NCA-1PV-JD-PCB |
*If need to order other collocation or wire, please consult customer service
