M16 Nano SIM Card Connector

In today’s rapidly evolving era of Industry 4.0, vehicle networking, and smart energy, devices are increasingly deployed in extremely harsh environments. However, traditional built-in SIM card slots have become the “Achilles’ heel” of system reliability:

Maintenance nightmare: Replacing SIM cards requires disassembling the device housing, breaking the sealing, increasing maintenance costs and downtime.

Environmental threats: Moisture, salt mist, and dust can easily enter through slot gaps, leading to circuit corrosion and signal interruption.

Vibration risks: Ordinary card holders have poor vibration resistance. In high-speed rail, heavy machinery, or vehicle-mounted scenarios, strong vibration can easily cause poor contact.

As a professional industrial connector manufacturer, CAZN once again pushes technical boundaries forward to deliver a more robust solution.

Core Advantages

Top-level protection, resistant to extreme environments (IP67/IP68)

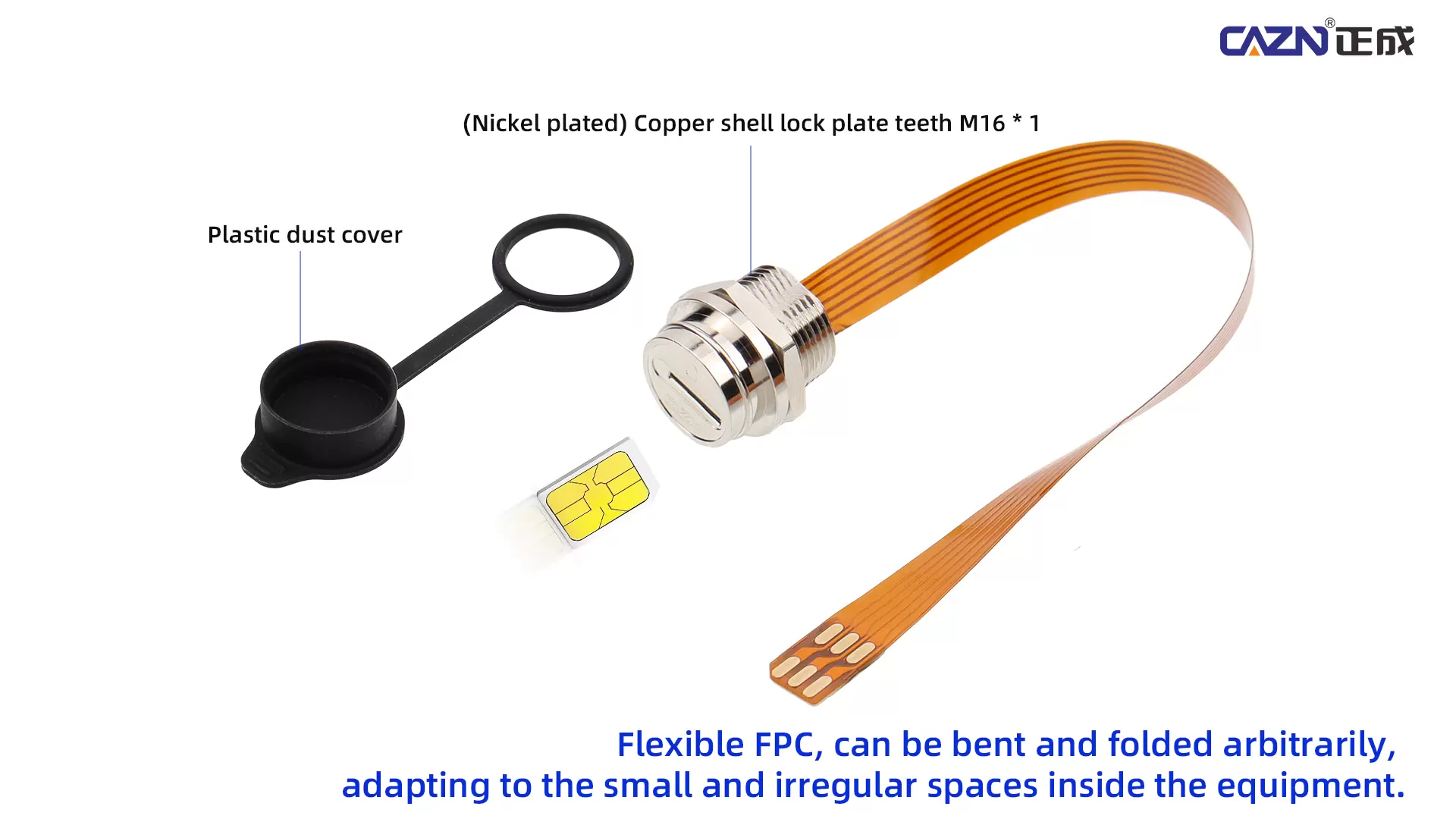

Nickel-plated metal housing: Made of high-quality brass with precision nickel-plated surface treatment. Compared with ordinary plastic or untreated metal, the nickel layer provides excellent corrosion resistance, oxidation resistance, and salt spray resistance, making it suitable for coastal, chemical plant, and high-humidity environments.

Thread locking sealing: Based on proven M12/M16 connector engineering experience, the M16x1.0 threaded structure combined with a high-precision rubber sealing ring ensures airtight sealing. Heavy rain, sand, and dust cannot compromise internal protection.

Flexible integration, improved wiring freedom (custom FPC)

High-flexibility FPC connection: Integrated orange polyimide (PI) flexible printed circuit (FPC), which can be freely bent and folded, adapting to narrow and irregular internal device spaces.

Stable gold contact pads: The FPC end features standard-pitch gold-plated pads, supporting direct soldering to the main PCB or insertion into ZIF connectors. Low impedance and anti-interference design ensure stable transmission of 4G/5G signals without loss.

Industrial-grade quality and compatibility

International standard interface: Fully compliant with M16 mechanical standards, enabling seamless replacement with similar products on the market and easy installation.

SIM card compatibility: Precision-optimized internal structure supports Nano SIM cards (customizable), meeting global telecom operator standards.

Wide temperature operation: Industrial-grade design ensures stable operation in a temperature range of -25°C to +70°C, suitable for both extreme cold and heat environments.

Direct manufacturer with deep customization

Backed by a product portfolio of 3000+ items and over 30 patented technologies, the manufacturer provides not only standard models but also deep OEM/ODM customization services, including FPC length, wiring sequence, card holder configuration, and thread specifications to precisely match different product designs.

Application Scenarios: Where durability matters most

This connector is designed for high-reliability systems in demanding environments:

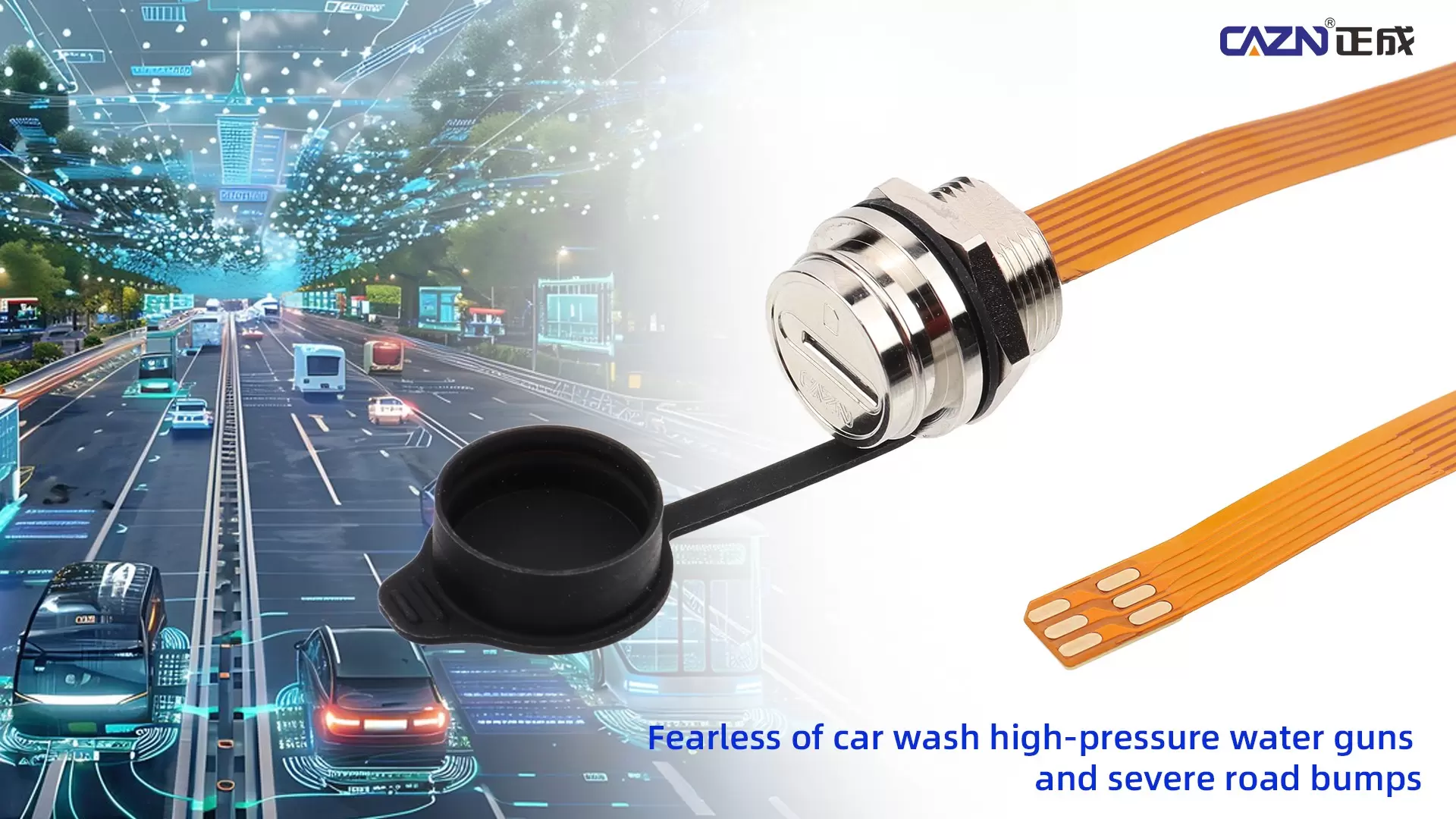

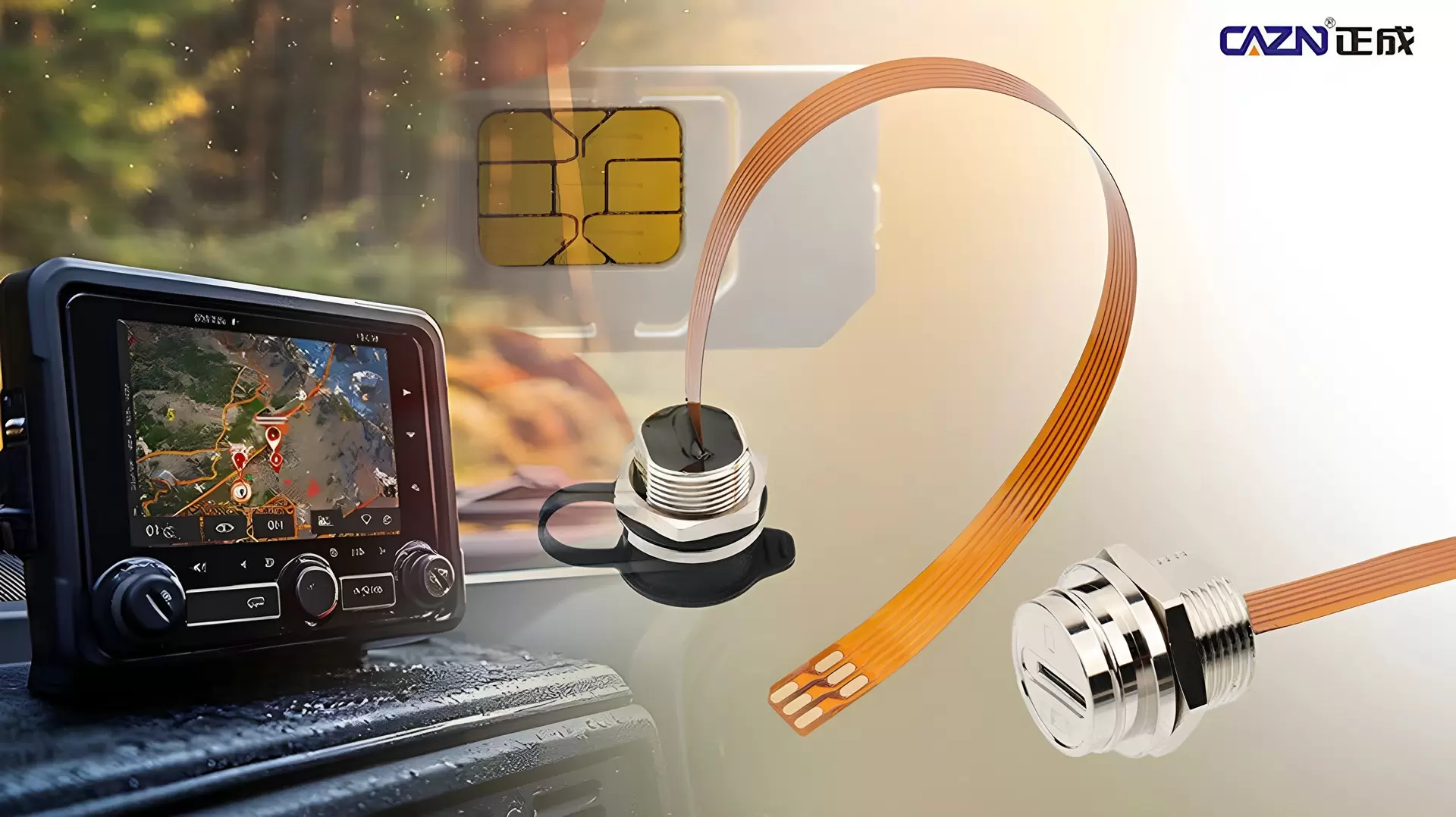

Smart transportation & vehicle networking: Vehicle GPS trackers, T-Box units, dash cameras, and fleet management terminals. Resistant to vibration and high-pressure washing.

Industrial IoT (IIoT): Outdoor environmental monitoring stations, smart utility meters, agricultural control systems, and renewable energy inverters. Ensures stable connectivity in unattended outdoor environments.

Security & emergency systems: Border surveillance systems, traffic monitoring cameras, and emergency communication devices. Enables remote SIM replacement without opening the enclosure.

Handheld industrial devices: Logistics scanners, power inspection tools, and outdoor mobile terminals, improving durability and product-grade protection.

Technical Parameters

Conclusion

In the interconnected world of 2026, device reliability no longer depends only on core chip performance, but on the integrity of every single connection point. The M16 metal Nano SIM FPC connector, with its nickel-plated housing, delivers strong mechanical protection, excellent electrical performance, and superior environmental adaptability, making it an ideal solution for industrial-grade external SIM card interfaces.
