Connectors: The Hardware Foundation of Smart Home Appliance Connectivity

When an oven starts, the range hood switches on automatically. When ambient temperature and humidity change, the water heater adjusts its temperature accordingly. With a single command when leaving home, all connected appliances can enter standby protection mode in sequence. These seamless smart home scenarios may appear to be driven entirely by an intelligent home control system, but behind them lies an often-overlooked yet essential component: the connector.

As the physical interface for power supply and signal transmission across smart home appliance systems, connectors establish reliable links between electronic control units, sensors, and communication modules. They enable appliances from different product categories to achieve hardware-level connectivity and coordinated operation.

A mature smart home ecosystem relies on a layered architecture. At the hardware level, connectors establish the physical interconnection foundation. The middle layer handles multi-protocol communication and data transmission, while the upper layer relies on an intelligent home operating system to make decisions and coordinate scenarios. From individual appliances to an integrated network of connected devices throughout the home, connectors are essential at every stage.

Connectors: The Foundation of Internal Smart Appliance Connectivity

Inside individual smart appliances, UART terminal connectors and FPC board connectors bridge the main control board with IoT modules, sensors, and motor drive units. They connect wireless communication modules such as Wi-Fi, ZigBee, and UMesh to the appliance's main controller, enabling the collection and exchange of temperature readings, operating status, and other data.

This hardware integration provides the foundation for connected functionality in refrigerators, washing machines, and combination steam ovens. IPEX RF coaxial connectors provide stable radio-frequency connections between wireless modules and antennas, helping maintain reliable wireless communication throughout the smart home network.

Image 1: Smart Home Appliance Connectivity

Waterproof Connectors for Demanding Kitchen and Bathroom Environments

Kitchen and bathroom environments expose connectors to moisture, condensation, grease, and temperature fluctuations. For external sensor nodes operating under these conditions, M8 and M12 IP67-rated circular connectors offer a practical connection solution.

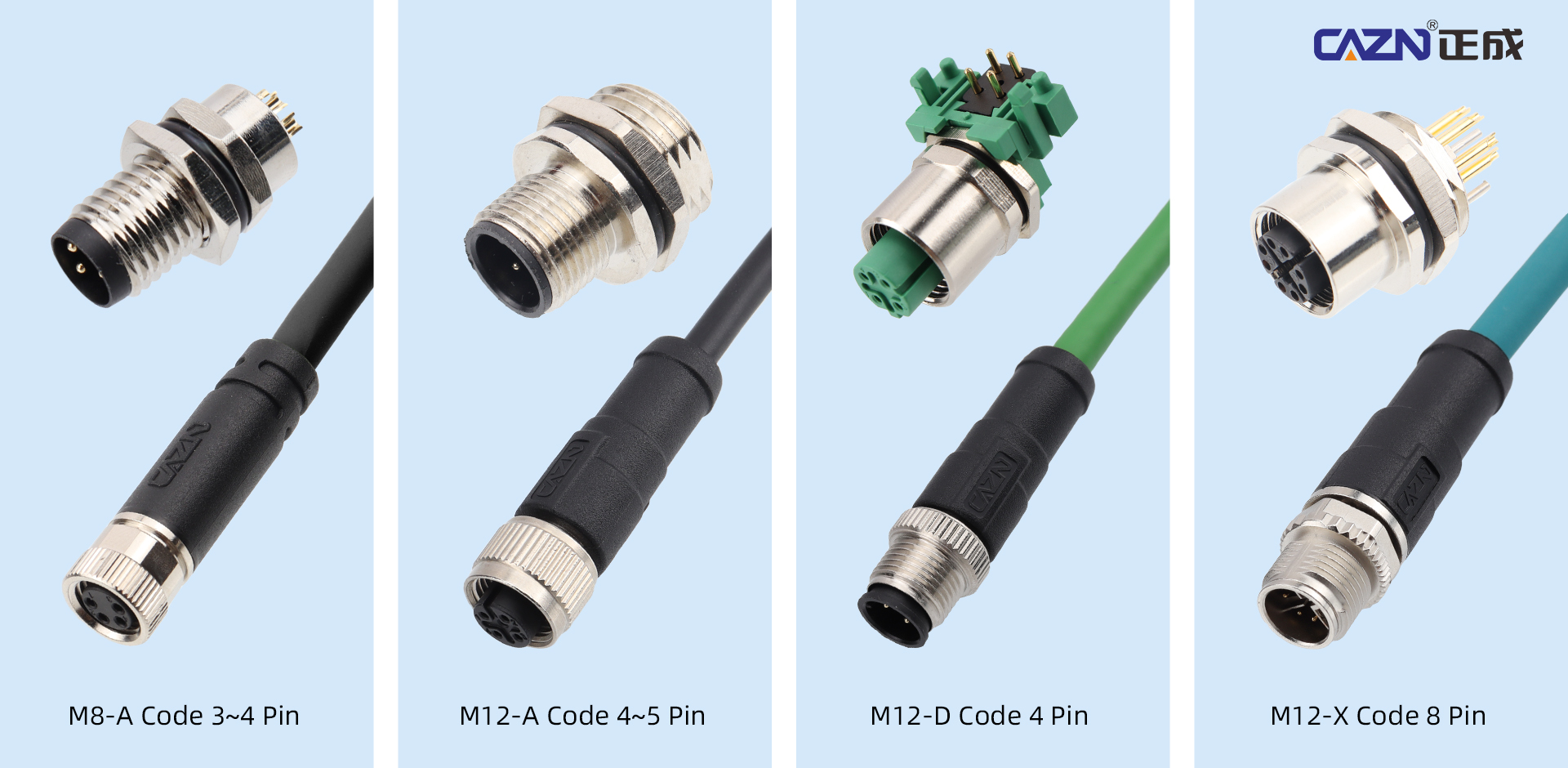

A-coded M8/M12 connectors are suitable for power supply and signal acquisition in temperature, humidity, and human-presence sensors. D-coded M12 connectors support 100 Mbps Ethernet communication, while 8-pin X-coded M12 connectors support Gigabit Ethernet for high-speed data transmission. These configurations are particularly relevant to commercial smart kitchens with multiple interconnected devices.

For central control gateways and commercial kitchen appliance communication buses, shielded RJ45 connectors and RS485 terminal connectors provide stable wired connections. Their appropriate shielding and wiring designs help reduce electromagnetic interference generated by compressors, motors, and other equipment during startup and operation, improving communication reliability and reducing the risk of signal errors or unintended control commands.

Connecting Hardware to Intelligent Home Control Systems

Above the physical connectivity layer, the UHomeOS intelligent home control system acts as the central coordination platform. It supports multiple communication protocols, including PLC-Mesh, ZigBee 3.0, and Ethernet, allowing signals carried through different connector types to be integrated into a unified smart home connectivity standard.

This architecture enables appliances from different product categories to communicate and coordinate their operations. Even when the external internet connection is interrupted, the local gateway can continue executing predefined automation scenarios through the established physical communication links, helping maintain essential smart home functions.

The reliability of this architecture depends not only on software compatibility but also on the stability of the underlying hardware connections. Proper connector selection helps ensure that power, control signals, and communication data are transmitted consistently between devices.

Connector Reliability Requirements for Smart Home Appliances

Smart home appliances operate in environments involving elevated temperatures, thermal cycling, continuous vibration, humidity, and grease contamination. These conditions place demanding requirements on connector materials, contact performance, mechanical design, and electromagnetic compatibility.

For appliance-specific applications, CAZN provides connector selection solutions that consider the actual operating environment and electrical requirements. Key considerations include stable contact resistance with minimal variation after thermal cycling, UL94 V-0 flame-retardant materials, and compliance with applicable RoHS and REACH environmental requirements.

Locking circular connectors should also provide reliable mating retention and insertion-extraction durability to prevent loosening during long-term operation. For applications near motors and compressors, shielded connector structures can help suppress electromagnetic interference (EMI), reducing the risk of communication errors and unexpected appliance behavior.

Compact connector designs are equally important as home appliances become thinner and more highly integrated. Space-efficient interfaces help optimize control board layouts while maintaining reliable electrical connections and convenient assembly.

Comprehensive Connectivity Solutions Across Smart Appliance Applications

From integrated smart kitchens and intelligent bathrooms to commercial kitchen appliance networks and smart agriculture equipment, connector solutions support a wide range of connectivity requirements. These include internal electronic control connections, wired sensor networks, and high-speed gateway communications.

Different application scenarios require different connector configurations. Internal control boards may prioritize compact FPC and UART interfaces, while exposed sensors require waterproof M8/M12 connections. High-speed communication networks may rely on X-coded M12 or shielded RJ45 interfaces, depending on the required transmission rate and installation environment.

A well-designed connector system brings these different interfaces together into a reliable hardware architecture. The result is more consistent communication between appliances, more dependable automation scenarios, and improved integration across connected environments.

As smart home appliances continue to evolve, hardware connectivity requirements will become increasingly demanding. CAZN remains committed to advancing connector technology for smart appliance applications, with continued attention to environmental protection, electromagnetic compatibility, and miniaturized design. By working closely with appliance manufacturers, CAZN aims to strengthen the hardware foundation of connected living and support the next generation of intelligent home ecosystems.

Connector Selection Guide | Smart Home Appliance Applications by CAZN

Applicable applications: Smart home appliances, kitchen and bathroom sensors, whole-home gateways, and commercial kitchen appliance networks.

Key Connector Selection Requirements for Smart Home Appliances

Environmental protection: For exposed sensors in kitchens and bathrooms, prioritize locking M8/M12 connectors with IP67 protection to handle moisture, condensation, and grease exposure.

EMC performance: Connectors installed near motors and compressors should incorporate suitable shielding structures to reduce electromagnetic interference during equipment startup and operation.

Mechanical durability: Specify an insertion-extraction durability of at least 1,000 cycles. After thermal cycling, contact resistance variation should be controlled within 10 mΩ, subject to the agreed testing conditions.

Material compliance: Select UL94 V-0 flame-retardant materials where required and verify compliance with applicable RoHS and REACH requirements to support appliance safety and environmental standards.

Installation flexibility: PCB-mounted connector receptacles should support suitable SMT or rear-mount configurations. Pre-assembled cable harnesses can be specified with straight or right-angle connectors according to equipment layout and installation constraints.
