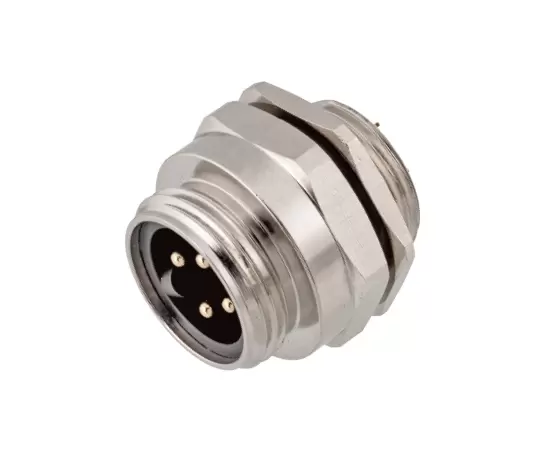

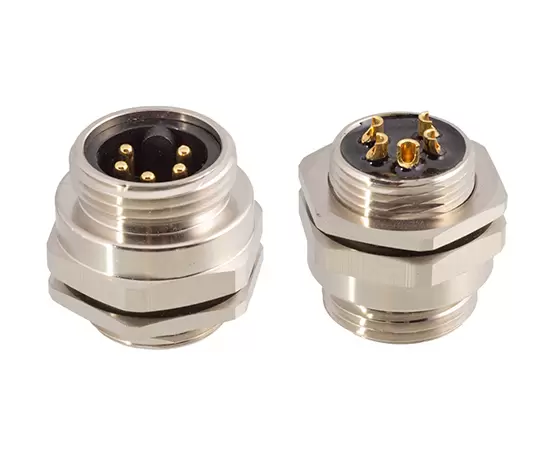

Home / Products / Circular Connector / 7/8 Connector / Front Mount Socket / 7/8 Male Front Mount Socket ( Solder, Screw PG13.5 )

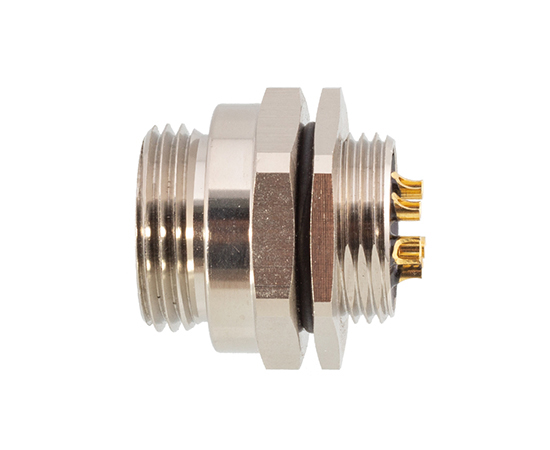

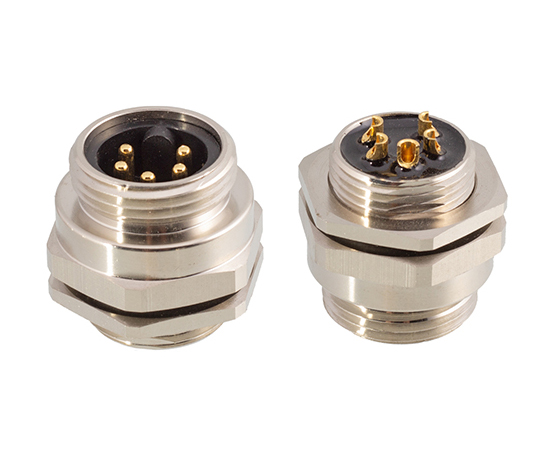

Front Mount Socket
European standard connector: 7/8 series
Structure type: Front Mount Socket
Connection method: Solder
Pin type: Male
Contacts number: 3, 4, 5, 6 pins
Cable material: Single wires
Shielded: No
Cable length: 10cm/20cm/30cm (customizable)
Certification: CE, RoHS, UL
Product information
PRODUCT PARAMETERS
| Shell material： | Brass nickel-plated/Zinc alloy nickel-plated/PA |
| Insulator material： | PA/TPU |
| Sealing material： | Epoxy resin/Rubber |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Waterproof grade： | IP65/IP67 |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability: | ≥ 500 cycles |
| Applicable temperature： | -25℃ ~ +80℃ |
| Executive standard： | IEC 61076-2-101 |
7/8 ELECTRICAL PARAMETERS
Electrical diagram

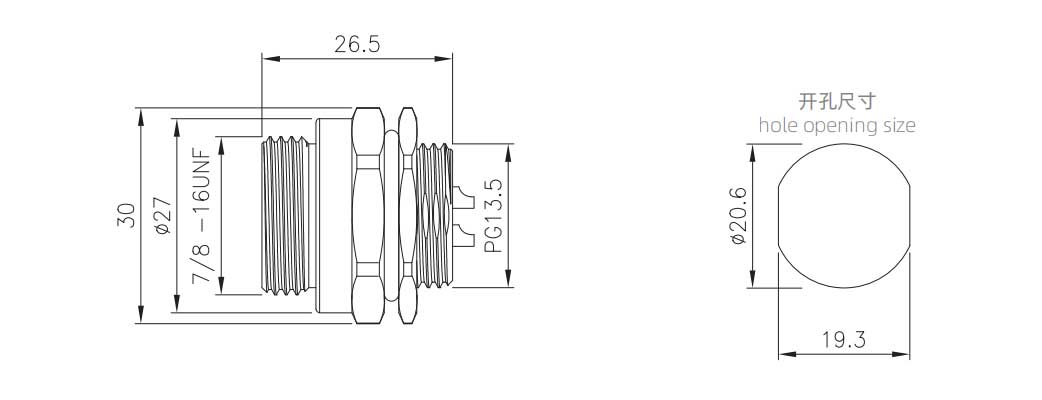

DIMENSION DRAWING
WIRE DEFINITION
Product Ordering
| Product Name | Product No. Unshielded | Pins | 3D Download | 2D Download |
| 7/8 Male Front Mount Socket(Solder, Screw PG13.5) | 7/8-P3-GWBP13 | 3 | ||
| 7/8 Male Front Mount Socket(Solder, Screw PG13.5) | 7/8-P4-GWBP13 | 4 | ||
| 7/8 Male Front Mount Socket(Solder, Screw PG13.5) | 7/8-P5-GWBP13 | 5 | ||
| 7/8 Male Front Mount Socket(Solder, Screw PG13.5) | 7/8-P6-GWBP13 | 6 |
