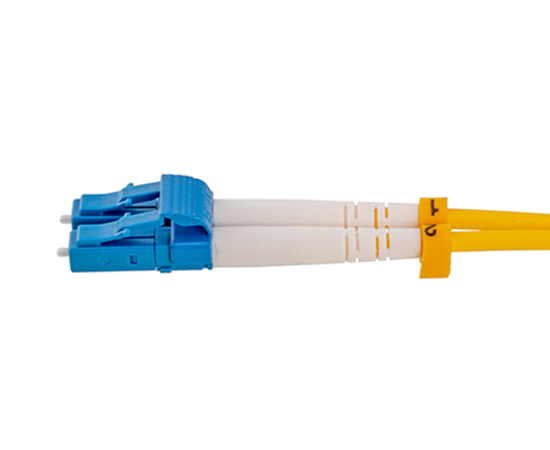

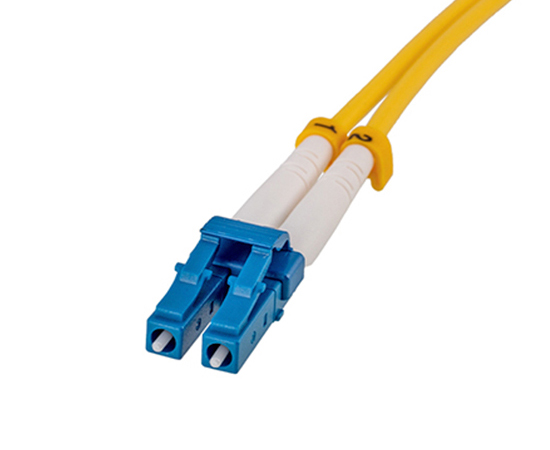

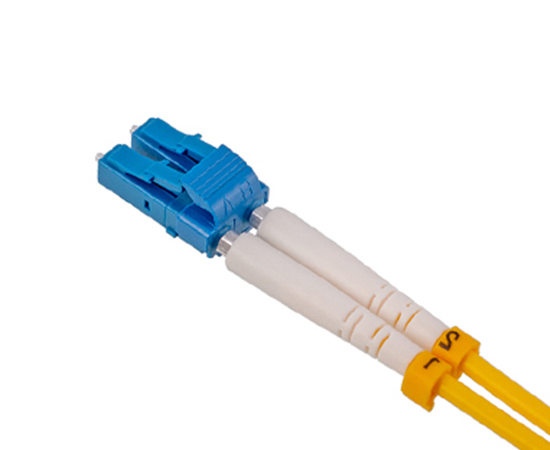

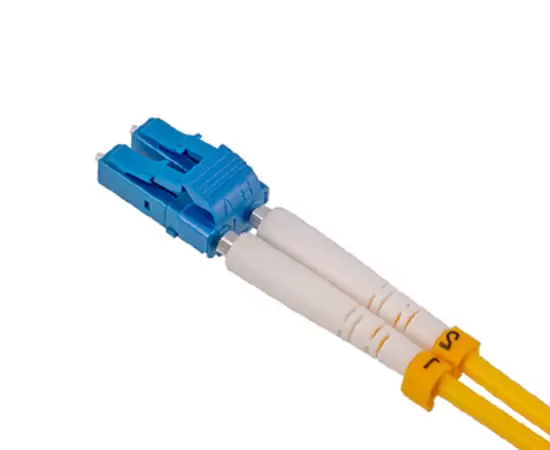

Home / Products / E Waterproof Connector / FDDI / Fiber Cable / LC Single-mode Double-core Optical fiber Cable
Fiber Cable
Plastic Waterproof Connector: FDDI Optical Fiber Series
The ergonomic structure is designed for the rigorous testing environment.
Rich in structure: the products are widely used in LED screen, lighting, audio-visual equipment, medical equipment, detection and measurement equipment, communication industry, telecommunications equipment and other fields, Can meet a variety of customized requirements.
PBT material housing, stable electrical performance, high strength pressure resistance, high temperature resistance, anti - explosion, corrosion resistance and effectively respond to environment changes.
Product information
PRODUCT PARAMETERS
| Shell material： | High performance engineering plastics/Metal+Plastic |
| Flame retardant grade： | UL94-V0 |
| Termination： | Welding/Crimping/Quick plug connect |
| Waterproof grade : | IP67，IP68 |
| Insertion loss： | ≤0.2dB |
| Return Loss： | ≥50dB |
| Applicable temperature : | 25℃ ~ +85℃ |
| Baud rate： | ≈200000000Mbit/s |
Electrical diagram

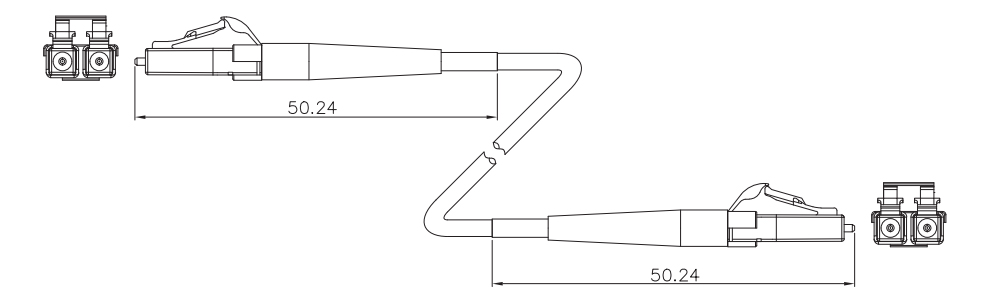

DIMENSION DRAWING
Product Ordering
| Product Name | Cable Length | P/N | 3D Download | 2D Download |
| SC Single-mode Double-core Optical fiber Cable | 0.5M | FDDI-LCF2-NRA/NRA-0.5PV | ||
| SC Single-mode Double-core Optical fiber Cable | 1M | FDDI-LCF2-NRA/NRA-1PV | ||
| SC Single-mode Double-core Optical fiber Cable | 2M | FDDI-LCF2-NRA/NRA-2PV | ||
| SC Single-mode Double-core Optical fiber Cable | 3M | FDDI-LCF2-NRA/NRA-3PV |
*If need to order other collocation or wire, please consult customer service
