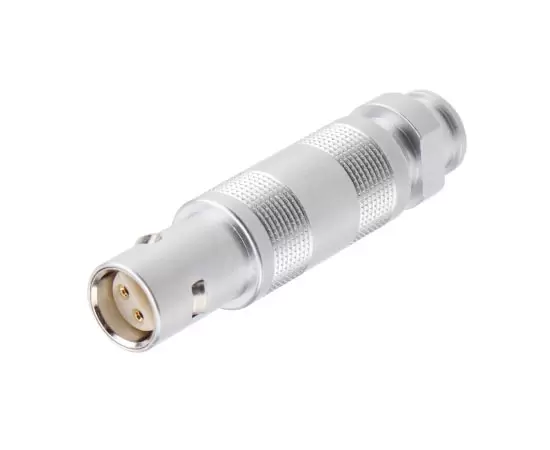

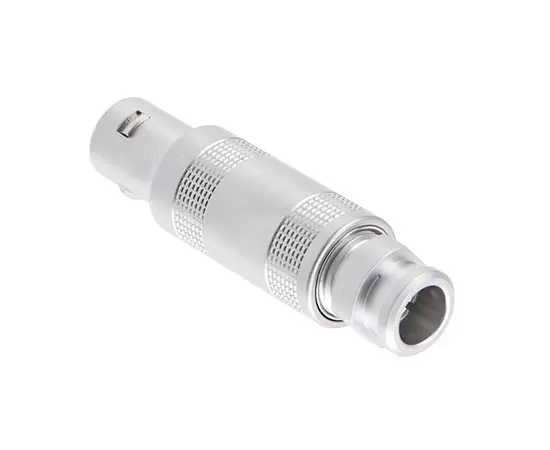

TFA Straight Plug
– Safe plug in and self-locking system
– Waterproof connection (IP50)
– The maximum transmission current of single core type is 230A, and the maximum transmission current of multi-core type is 106 cores
– 360° shielding provides comprehensive EMC protection (Anti electromagnetic interference)
– Welding, crimping and printed board connector cores(Straight or angled)
– Stepped (half moom) insert core is equipped with both male and female needle cores for polarity positionin
Product information
TECHNICAL PARAMATERS
| Coupling： | Push pull self-locking |
| Operating temperature： | -55℃ ~ +250℃ |
| Humidity： | Up to 95% at 60°C/140°F |
| Anti-vibration performance： | 15g [10-2000 Hz] |
| Impact resistance： | 100g, 6ms |
| Salt spray corrosion test： | >144 h |
| Protection level： | IP50 |
| Insulation impedance： | ≥100 mΩ |
| Shielding performance： | >75dB (10MHz); >40dB (1GHz) |
| Mechanical life： | >5000 Cycles |
Electrical diagram

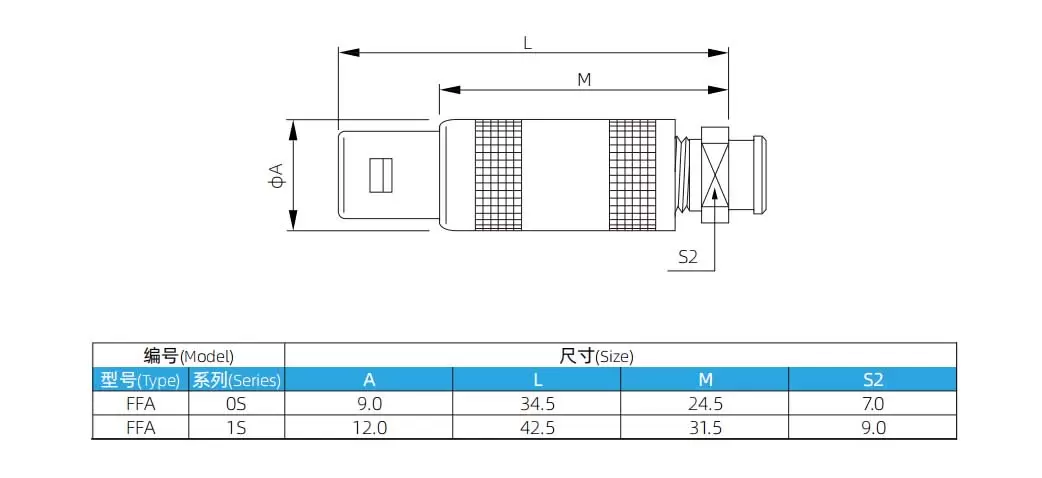

Dimensions
Product Ordering
