EP Plug

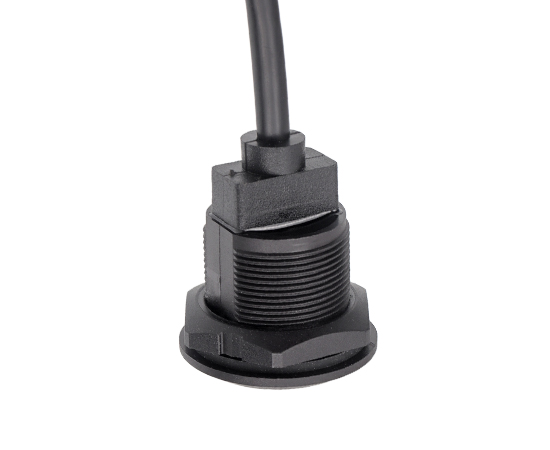

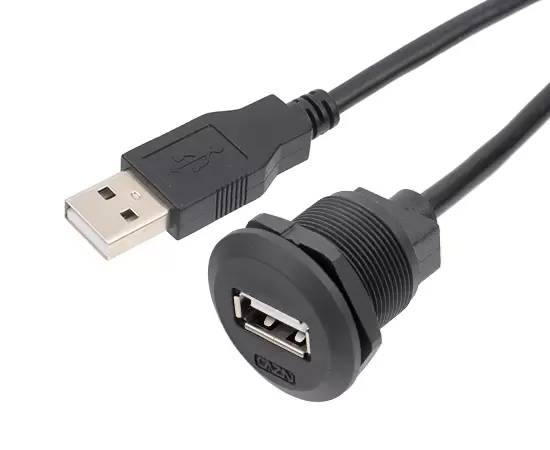

Plastic waterproof connector：EP panel series
Structure type: Female socket installed in front of panel type board
Gender: Female to Male
Coupling: Threaded(T)
Standard: USB2.0、USB3.0
Shielded: Customization
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Conductor material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 5~20V |
| Rated current | 1~3A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥500(Cycles) |
Electrical diagram

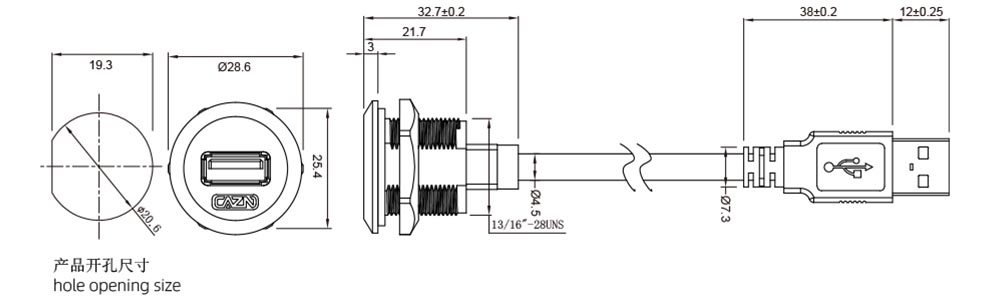

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | Wire Length | P/N | 3D Download | 2D Download |
| EP-USB Panel type board front installation female socket/Male straight plug(Threaded) | USB2.0 | 0.3M | EP-FU2-PWF/MU2-NWA-0.3PV-S | ||
| EP-USB Panel type board front installation female socket/Male straight plug(Threaded) | USB2.0 | 0.5M | EP-FU2-PWF/MU2-NWA-0.5PV-S | ||
| EP-USB Panel type board front installation female socket/Male straight plug(Threaded) | USB2.0 | 1M | EP-FU2-PWF/MU2-NWA-1PV-S | ||
| EP-USB Panel type board front installation female socket/Male straight plug(Threaded) | USB3.0 | 0.3M | EP-FU3-PWF/MU3-NWA-0.3PV-S | ||
| EP-USB Panel type board front installation female socket/Male straight plug(Threaded) | USB3.0 | 0.5M | EP-FU3-PWF/MU3-NWA-0.5PV-S | ||
| EP-USB Panel type board front installation female socket/Male straight plug(Threaded) | USB3.0 | 1M | EP-FU3-PWF/MU3-NWA-1PV-S |
*If need to order other collocation or wire, please consult customer service
