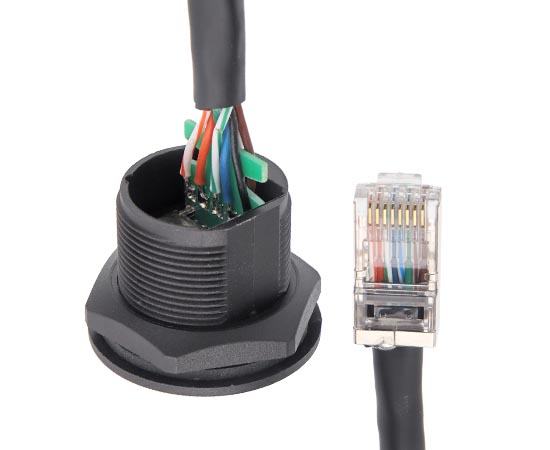

EP-RJ45 Panel front installation female socket/Male straight plug with wire no glue filling(Threaded)
Plastic waterproof connector：EP panel series
Structure type: Female socket installed in front of panel type board(no glue filling)
Gender: EP RJ45 Female to Male
Coupling: Threaded(T)
Standard: CAT5e
Shielded: Customization
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Conductor material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 5~20V |
| Rated current | 1~3A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥500(Cycles) |
Electrical diagram

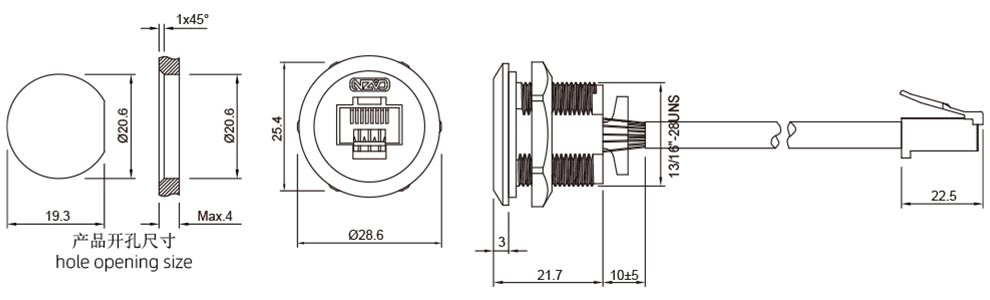

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | Wire Length | P/N | 3D Download | 2D Download |

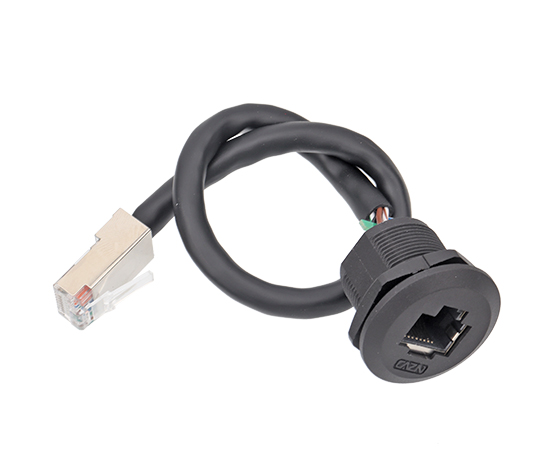

EP-RJ45 Panel front installation female socket/Male straight plug with wire(Threaded) | CAT5e | 0.3M | EP-FR5-PWF/MR5-NCA-0.3PV-JD-PCB | ||
EP-RJ45 Panel front installation female socket/Male straight plug with wire(Threaded) | CAT5e | 0.5M | EP-FR5-PWF/MR5-NCA-0.5PV-JD-PCB | ||
EP-RJ45 Panel front installation female socket/Male straight plug with wire(Threaded) | CAT5e | 1M | EP-FR5-PWF/MR5-NCA-1PV-JD-PCB |
*If need to order other collocation or wire, please consult customer service
