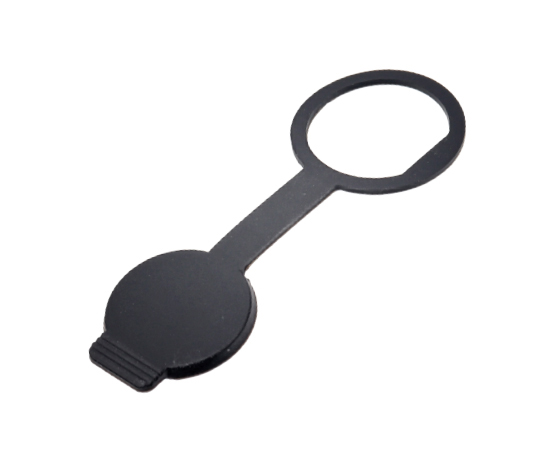

EP Dust Cover
Plastic waterproof connector：EP panel series
Structure type: Dust Cover
Connection method: Crimping type
Suitable for: Type-c、USB、RJ45、HDMI、FDDI
Certification: CE、RoHS
-
Standard:
-
Merchant Code:
EP-VS-ST-TC
Product information
PRODUCT PARAMETERS
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Conductor material: | Brass |
| Cable material: | PVC |
| Coupling: | Thread (T) |
| Waterproof grade: | IP67，IP68 |
| Rated voltage | 5~20V |
| Rated current | 1~3A |
| Insulation resistance: | 2000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Durability: | ≥500(Cycles) |
Electrical diagram
SELECTED MODEL PLAN
Product Ordering

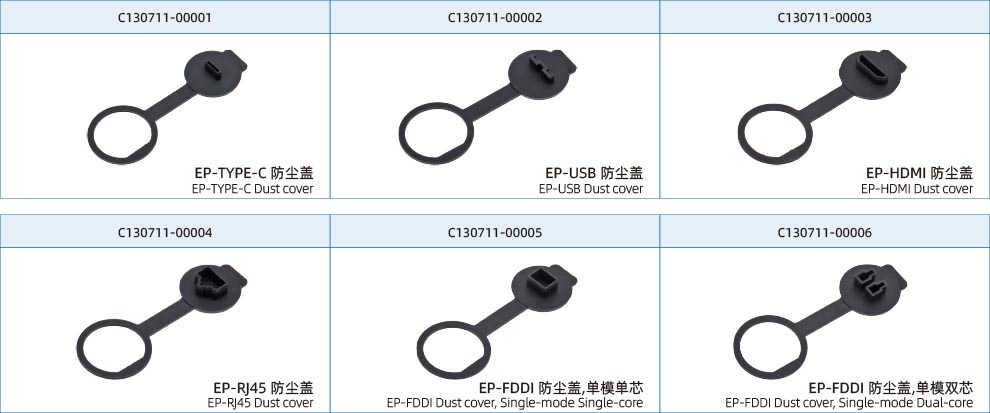

| Product Name | Standards | P/N | 3D Download | 2D Download |

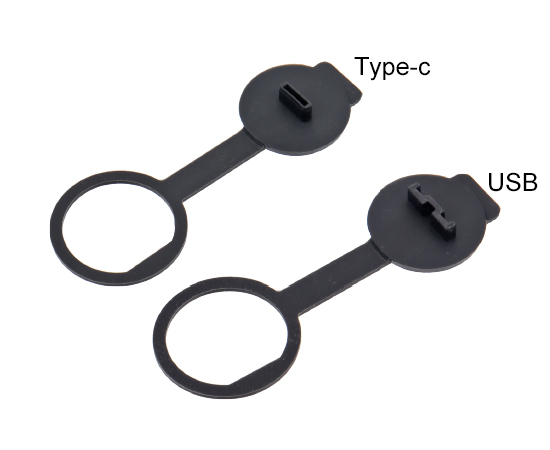

| EP Panel type dust cover | Type-C | EP-VS-ST-TC | ||
| EP Panel type dust cover | USB | EP-VS-ST-UA | ||

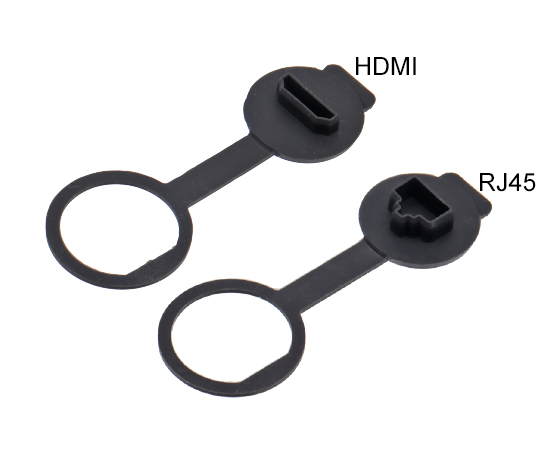

| EP Panel type dust cover | HDMI | EP-VS-ST-HD | ||
| EP Panel type dust cover | RJ45 | EP-VS-ST-RJ | ||

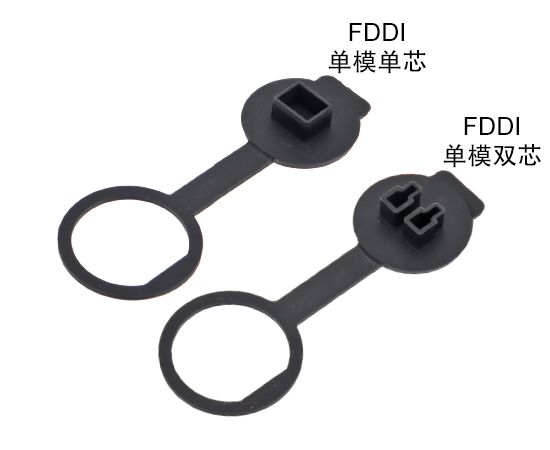

| EP Panel type dust cover | FDDI, Single-mode Single-core | EP-VS-ST-F1 | ||
| EP Panel type dust cover | FDDI, Single-mode Dual-core | EP-VS-ST-F2 |
*If need to order other collocation or wire, please consult customer service
