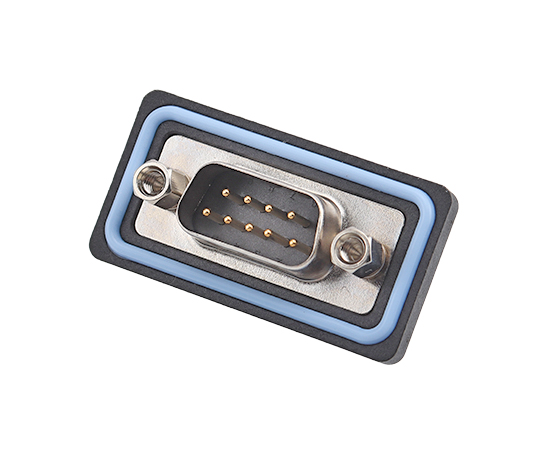

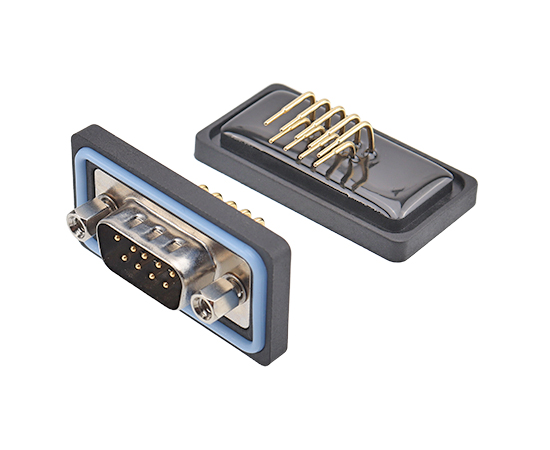

Home / Products / E Waterproof Connector / D-SUB / EDB1 Socket / EDB1-Angled Male Socket(PCB)
EDB1 Socket
Product information
PRODUCT PARAMETERS
| Rated current： | 10A/20A/30A/40A |
| Rated voltage： | 1000 V |
| Withstand voltage： | 500 V |
| Insulation resistance： | 5000 MΩ |
| Contact resistance： | 10 mΩ |
| Pulling and unplug force： | Products comply with IEC60807-3 |
| Wiring bound： | 8mm~14mm |
| Durability： | ≥500(Cycles) |
| Applicable temperature: | 55℃ ~ +105℃ |
| Product size： | Size1, 2, 3, 4 with four different shell sizes |
| Waterproof grade : | IP65/IP67 |
Electrical diagram
DIMENSION DRAWING
Product Ordering
| Product Name | Pins | Max Pi Wire gauge | Rated current | Model-Shielded | 3D Download | 2D Download |
EDB1-Angled Male socket (PCB) | 9 | 20 AWG | 5A | E-DB1-M9-PPL-N | ||
| EDB1-Angled Male socket (PCB) | 15H | 20 AWG | 5A | E-DB1-M15H-PPL-N | ||
| EDB1-Angled Male socket (PCB) | 2W2 | 10 AWG | 20A | E-DB1-M2W2-PPL10-N | ||
| EDB1-Angled Male socket (PCB) | 2W2C | 10 AWG | 20A | E-DB1-M2W2C-PPL10-N | ||
| EDB1-Angled Male socket (PCB) | 5W1 | 10 AWG | 20A | E-DB1-M5W1-PPL10-N |
*If need to order other collocation or wire, please consult customer service
