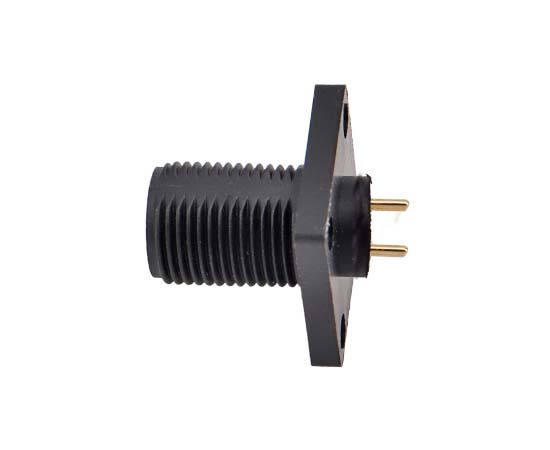

Plastic waterproof connector: E7 series
7/16 "-28UNS U.S standard screw
Structure type: Male Flanged PCB Receptacle
Pin type: Male
Coupling: Threaded(T)
Number of cores: 2, 3, 4, 5, 6 pins
Termination way: PCB
Shielded: No
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Sealing material： | Epoxy resin/Rubber |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | ≥100 mΩ |
| Contact impedance： | ≤5 mΩ |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -25℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Cable diameter: | 3.5mm~6.8mm |
| Screw size: | 7/16"-28UNS |
E7 ELECTRICAL PARAMETERS
Electrical diagram

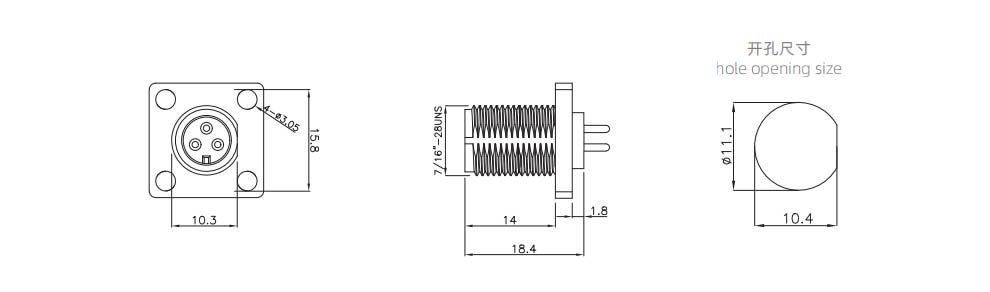

DIMENSION DRAWING
Product Ordering
| Product Name | Rated Voltage | Rated Current | P/N | Pins | 3D Download | 2D Download |
| E7 Male Flange Type PCB Receptacle(Threaded) | 125V | 5A | E7T-P2-PPH | 2 | ||
| E7 Male Flange Type PCB Receptacle(Threaded) | 125V | 5A | E7T-P3-PPH | 3 | ||
| E7 Male Flange Type PCB Receptacle(Threaded) | 60V | 2A | E7T-P4-PPH | 4 | ||
| E7 Male Flange Type PCB Receptacle(Threaded) | 60V | 2A | E7T-P5-PPH | 5 | ||
| E7 Male Flange Type PCB Receptacle(Threaded) | 60V | 2A | E7T-P6-PPH | 6 |
