E-TF Card Board

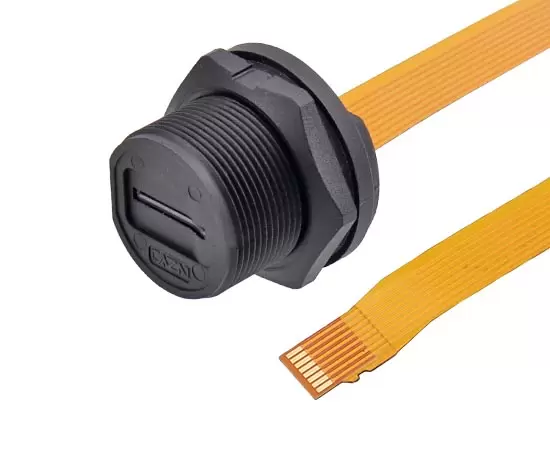

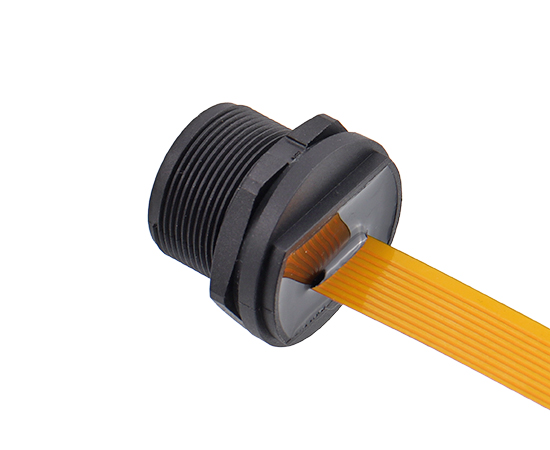

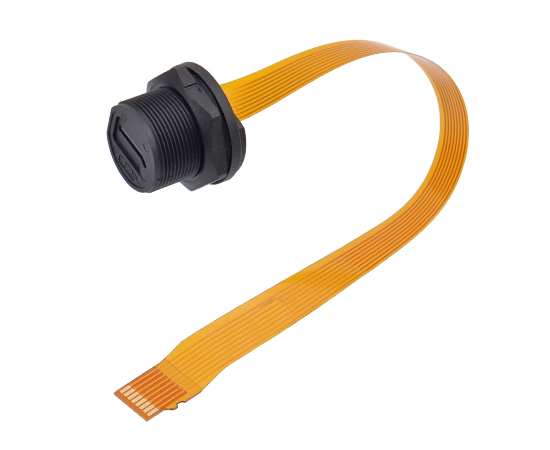

Plastic waterproof connector：E-TF Card Board
Structure type: Back Mount Socket
Gender: SDTF Female Back Mount to FPC Type
Coupling: Threaded(T)
Gender: Female
Cable Length: Customization
Certification: CE、RoHS
-
Cable length:
-
Merchant Code:
E13T-FSD-PWF/MSD-NRA-0.2FPC
Product information
PRODUCT PARAMETERS
| Shell material: | Thermoplastic plastic PA66, flame retardant grade: V-0 |
| Conductor material: | Brass |
| Coupling: | Thread (T) |
| Waterproof grade: | IP67，IP68 |
| Durability: | ≥500 Cycles |
| Rated voltage | 30V AC |
| Rated current | ≥0.5A |
| Insulation resistance: | 1000 mΩ |
| Applicable temperature: | -40℃ ~ +105℃ |
| Withstand Voltage: | 500V AC/min |
Electrical diagram

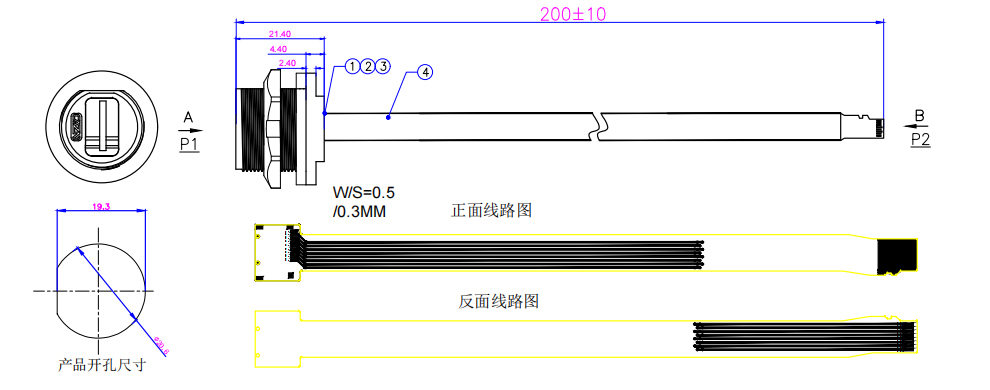

DIMENSION DRAWING
Product Ordering
| Product Name | Wire Length | P/N | 3D Download | 2D Download |
| E-TF Female Back Mount Solder Receptacle(Threaded) | 0.2M | E13T-FSD-PWF/MSD-NRA-0.2FPC |
*If need to order other collocation or wire, please consult customer service
