Home / Products / E Waterproof Connector / Micro-USB /USB 2.0 3.0 / Dust Cover / E10 Dust Cover Adapts to Micro USB (Threaded)
Dust Cover
Product information
PRODUCT PARAMETERS
| Shell material： | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Contact material： | Brass/Phosphorus copper gold-plated |
| Pins number： | 2-12 pins，Current: high current and low current |
| Coupling: | Thread (T); Bayonet(B) |
| Termination Way: | Solder |
| Insulation impedance： | 2000 mΩ |
| Cable diameter: | 4.0mm~8.0mm |
| Durability： | ≥500 Cycles |
| Applicable temperature： | -40℃ ~ +105℃ |
| Waterproof grade： | IP67，IP68 |
| Screw size: | 5/8"-27UNS |
E10 ELECTRICAL PARAMETERS
Electrical diagram

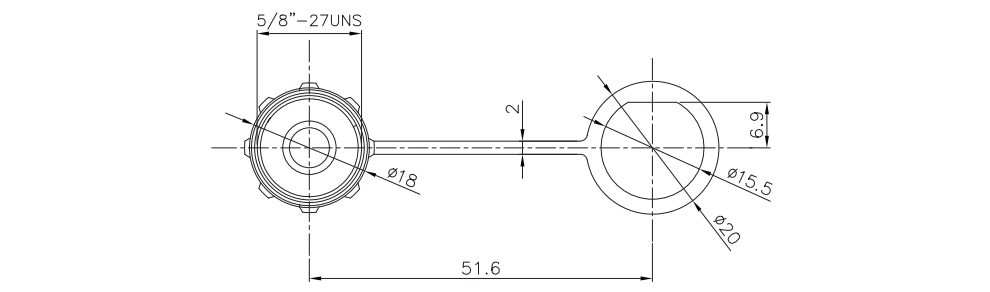

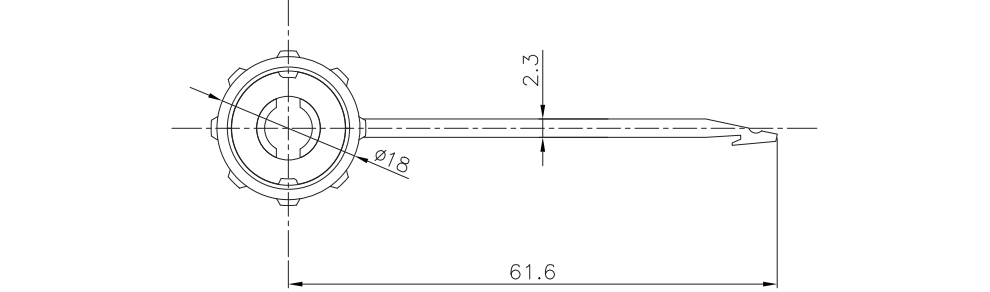

DIMENSION DRAWING
Product Ordering
| Product Name | Coupling | Installation | Screw | P/N | 3D Download | 2D Download |

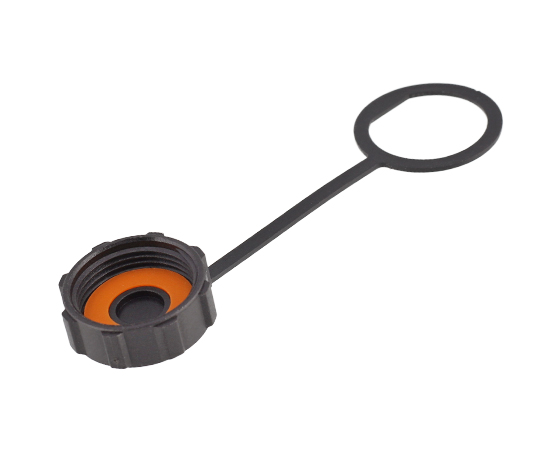

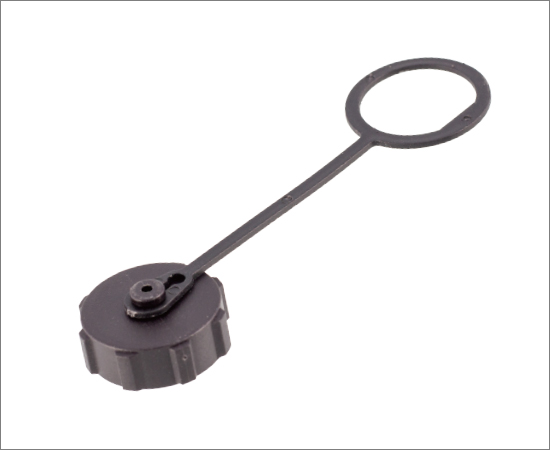

| E10 Dust Cover | Threaded | Round hole | 5/8 "-27UNS | E10T-VP-ST | ||

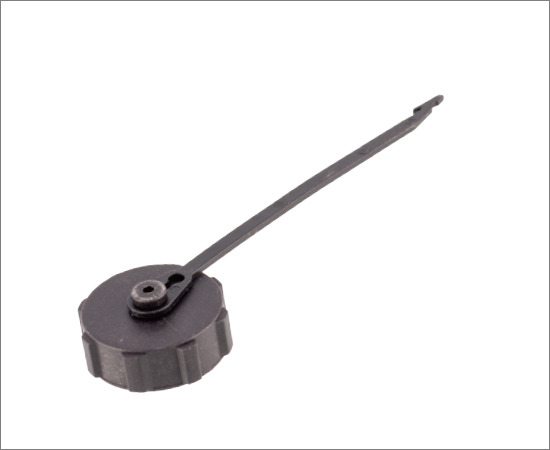

| E10 Dust Cover | Threaded | Latch | 5/8 "-27UNS | E10T-VP-PI | ||
| E10 Dust Cover | Bayonet | Round hole | 5/8 "-27UNS | E10B-VP-ST | ||
| E10 Dust Cover | Bayonet | Latch | 5/8 "-27UNS | E10B-VP-PI |
