Home / Products / E Waterproof Connector / D-SUB / Dust Cover / EDB3 - Dust cover

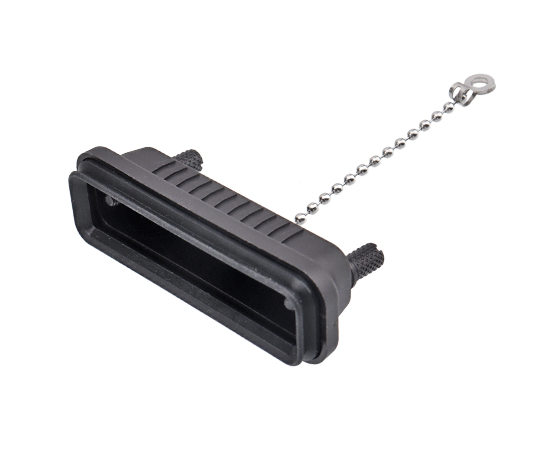

Dust Cover
Product information
PRODUCT PARAMETERS
| Dust cover material： | PA66 |
| Connection Strap Material： | Iron |
| Waterproof ring material： | Silicone |
| Working temperature ： | -40℃～80℃ |
| Waterproof grade： | IP67 |
| Fire retardant grade： | UL94-V0 |

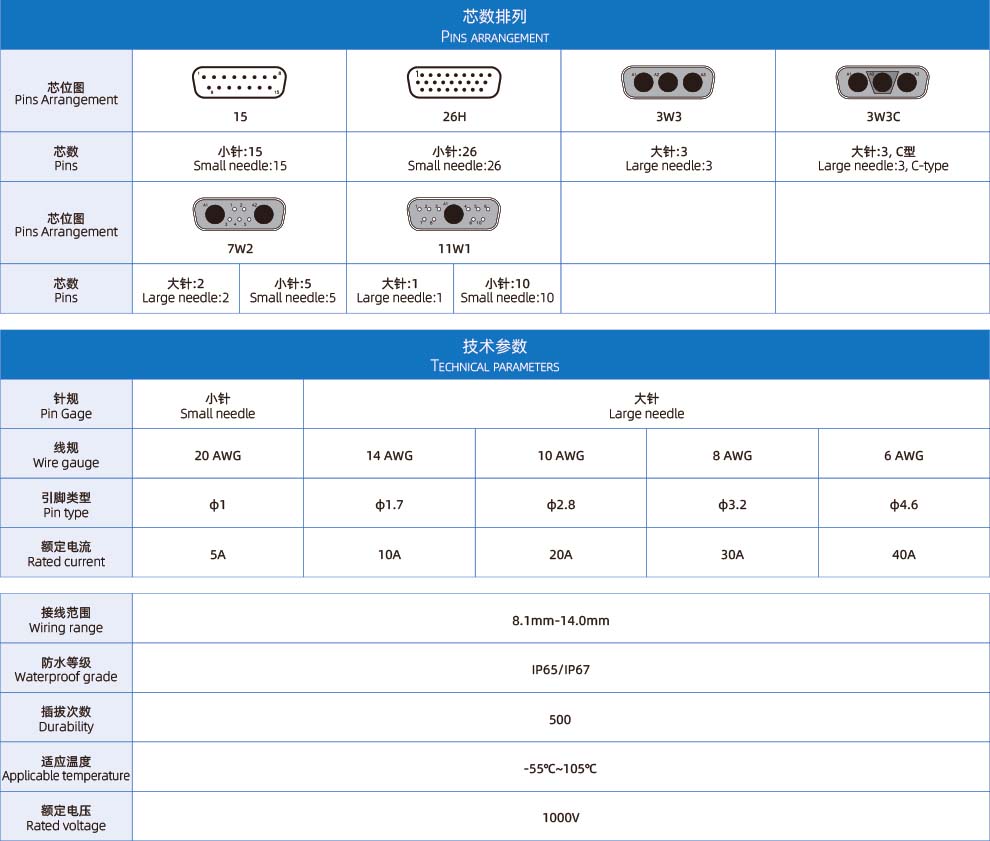

Electrical diagram

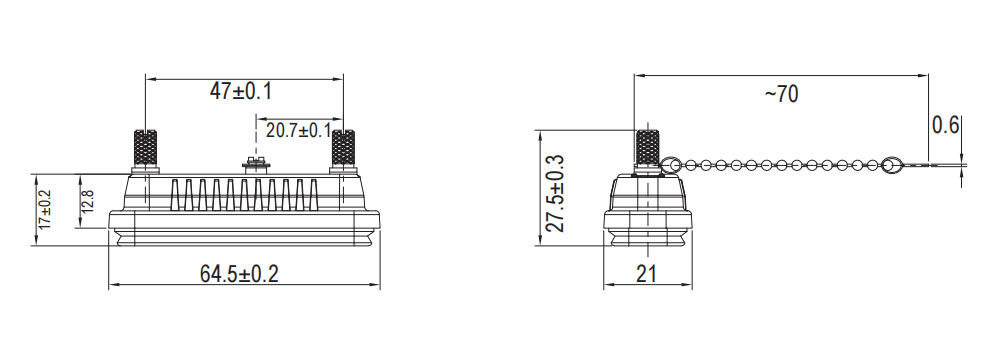

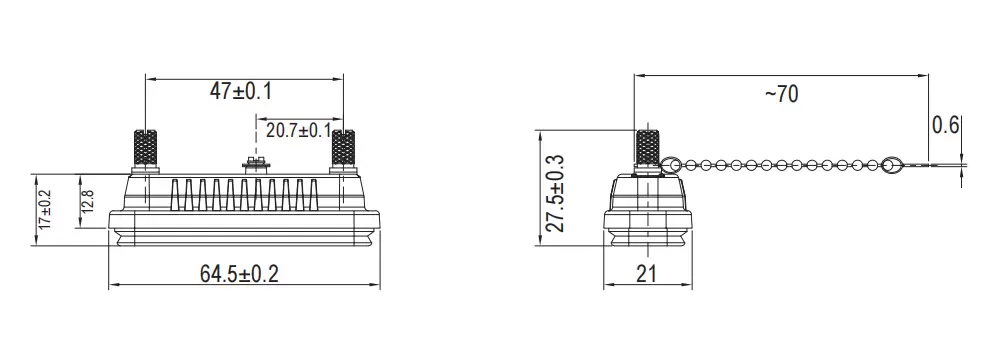

DIMENSION DRAWING
Product Ordering
| Product Name | Type | Model | 3D Download | 2D Download |
EDB3-Dust Cover | Apply to the plug | E-DB3-VS-BZ |
*If need to order other collocation or wire, please consult customer service
