E16 Dust Cover Round Hole (Bayonet) | High-Quality Protection

PRODUCT CENTER

Dust Cover

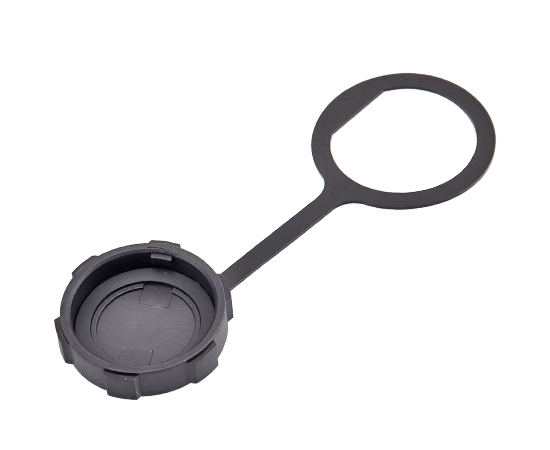

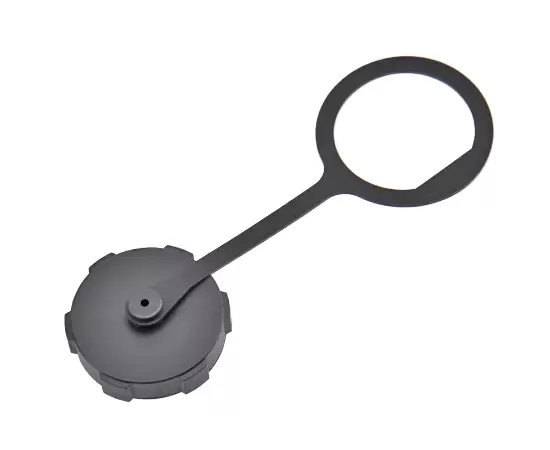

E16 Dust Cover Round Hole(Bayonet)

Plastic waterproof connector: E16 series

Structure type: Dust Cover

Gender: Round Hole

Coupling: Bayonet(B)

E16 Dust Cover:
Round Hole
Merchant Code:
E16B-VP-ST

INQUIRY

DOWNLOAD

Product information

PRODUCT PARAMETERS

Shell material：	Thermoplastic plastic PA66, flame retardand grade: V-0
Contact material：	Copper gold-plated
Pins number：	2-22 pins，Current: high current、low current and Mix-current
Coupling:	Bayonet(B)
Termination Way:	Solder
Insulation impedance：	2000 mΩ
Cable diameter:	6.0mm~13.0mm
Durability：	≥500 Cycles
Applicable temperature：	-40℃ ~ +105℃
Waterproof grade：	IP67，IP68
Screw size:	1"-20UNEF

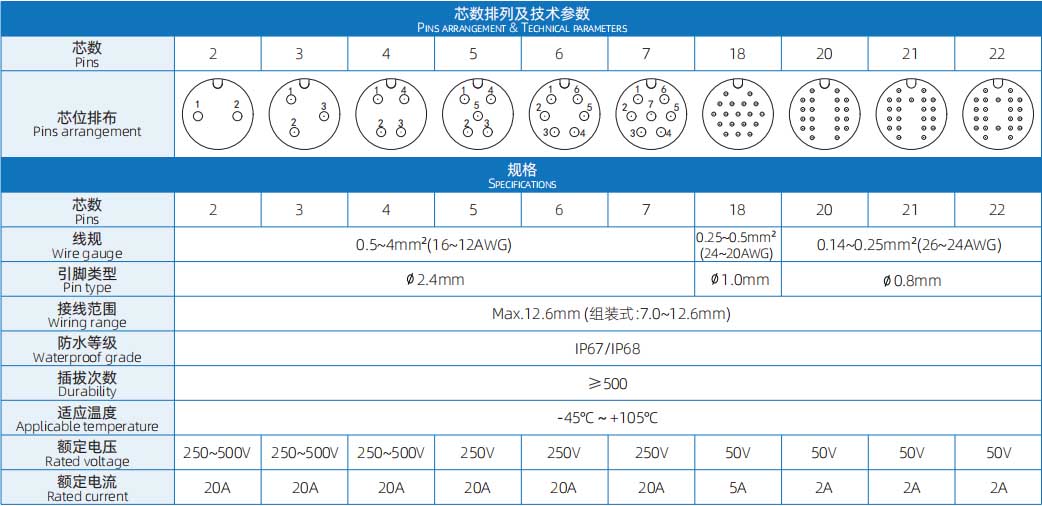

E16 ELECTRICAL PARAMETERS

Electrical diagram

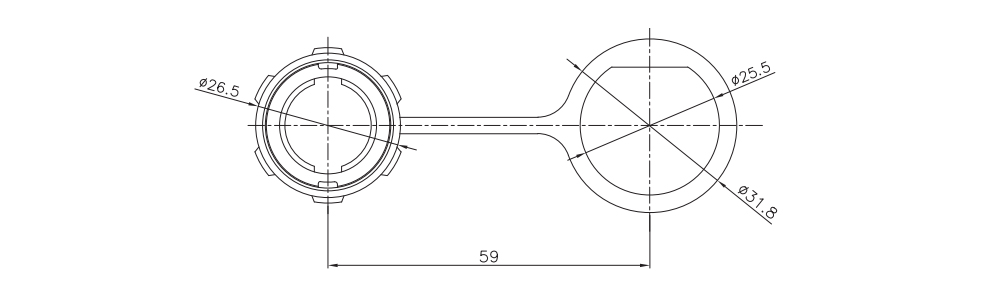

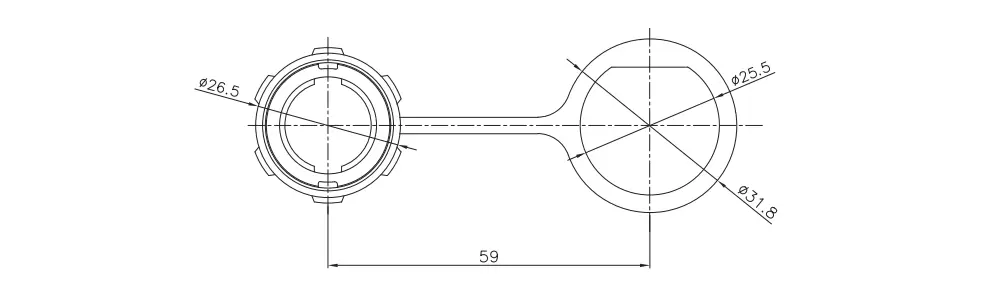

DIMENSION DRAWING

Product Ordering

Product Name	Type	P/N	3D Download	2D Download
E16 Dust Cover Round Hole(Bayonet)	Round Hole	E16B-VP-ST
