Home / Products / E Waterproof Connector / E-HDMI / Cable Plug / HDMI Straight Male to Straight.Male Cable plug(Threaded)
Cable Plug

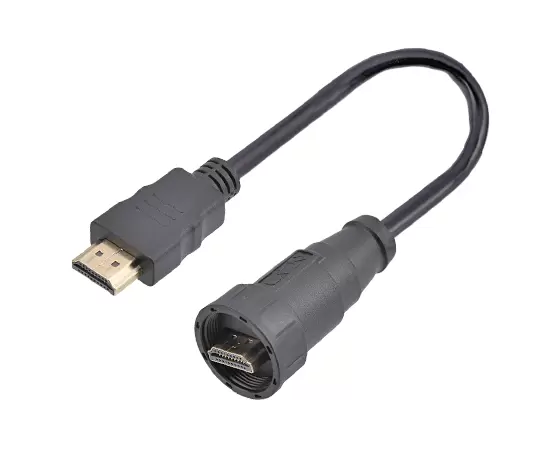

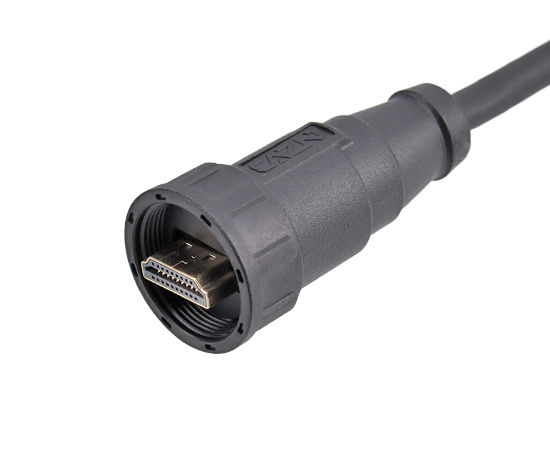

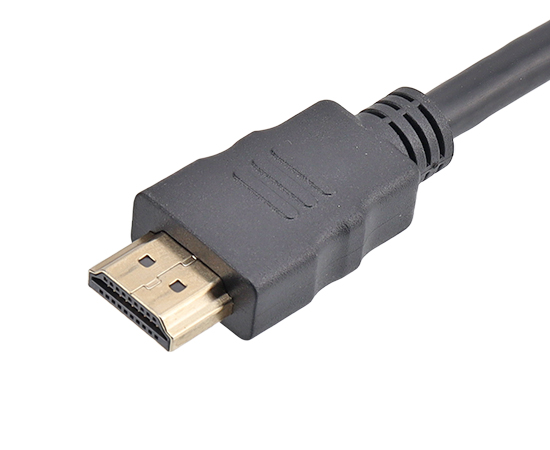

Plastic waterproof connector：HDMI series
Structure type: Straight Overmolded Plug
Gender:Male to Male Overmolded Cable
Coupling: Threaded(T)
Specifications：HDMI 4K、HDMI 8K
Shielded: Yes/NO
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Plastic Material: | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material: | Copper gold-plated |
| Coupling: | Threaded(T); Bayonet(B) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Rated current： | 50 mA |
| Applicable temperature: | -40℃ ~ +105℃ |
| Specification: | 13/16"-28UNS |
| Waterproof grade: | IP67 |
Electrical diagram

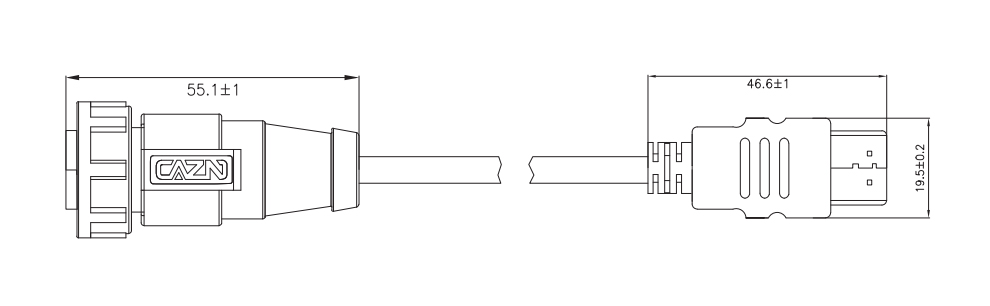

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | Wire Length | P/N | 3D Download | 2D Download |
| HDMI Male to Male Cable plug(Threaded) | HDMI 4K | 0.5M | E13T-MH4-MWA/NWA-0.5PV-S | ||
| HDMI Male to Male Cable plug(Threaded) | HDMI 4K | 1M | E13T-MH4-MWA/NWA-1PV-S | ||
| HDMI Male to Male Cable plug(Threaded) | HDMI 4K | 2M | E13T-MH4-MWA/NWA-2PV-S | ||
| HDMI Male to Male Cable plug(Threaded) | HDMI 4K | 3M | E13T-MH4-MWA/NWA-3PV-S |
*If need to order other collocation or wire, please consult customer service
Downloads
| Product Catalog | CAZN-European Standard Product Selection Manual |
| CAZN Proportional Valve Connector Manual | View |
| CAZN Zhengcheng Vibration Sensor Connector Manual | View |
| CAZN Zhengcheng - Heavy Duty Selection Manual - H2023-2 | View |
| CAZN Zhengcheng Plastic Waterproof Connector Selection Brochure-E2024-1 | View |
| CAZN Zhengcheng push-pull self-locking series selection manual T2023-2 | View |
| CAZN Zhengcheng European Standard Connector Selection Brochure-M2023-2 | View |
| CAZN Zhengcheng-RJ45 Industrial Network Signal Plug-2023-2 | View |
| CAZN Zhengcheng NMEA Special Connector-N2023-1 | View |
| CAZN Zhengcheng American standard connector-26482-MD2023-1 | View |
| CAZN-RJ45 Industrial network signal plug-2023-2-English version | View |
| CAZN-Proportional valve dedicated connector 23-1-English version | View |
| CAZN-Connectors for Vibration Sensors 23-1-English version | View |
