Cable Plug
Plastic waterproof connector：HDMI series
Structure type: Straight Overmolded Plug
Gender: R/A Male to Male Cable
Coupling: Bayonet(B)
Specifications：HDMI 4K、HDMI 8K
Shielded: Yes/NO
Certification: CE、RoHS
Product information
PRODUCT PARAMETERS
| Plastic Material: | Thermoplastic plastic PA66, flame retardand grade: V-0 |
| Metal Material: | Copper gold-plated |
| Coupling: | Bayonet(B) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance： | 2000mΩ |
| Rated current： | 250~600V AC/DC |
| Applicable temperature: | -40℃ ~ +105℃ |
| Specification: | 1"-20UNS |
| Waterproof grade: | IP67 |
Electrical diagram

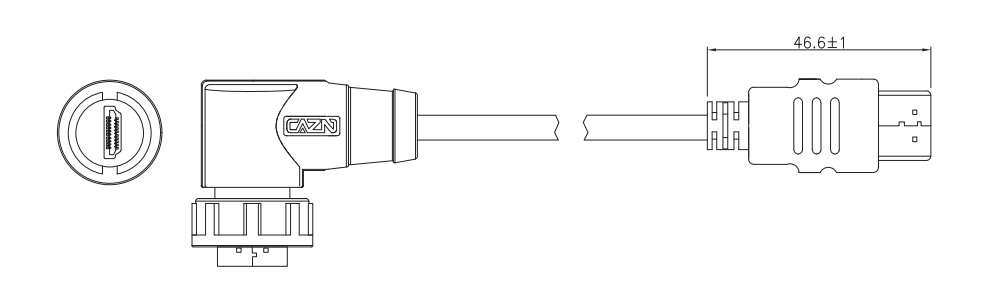

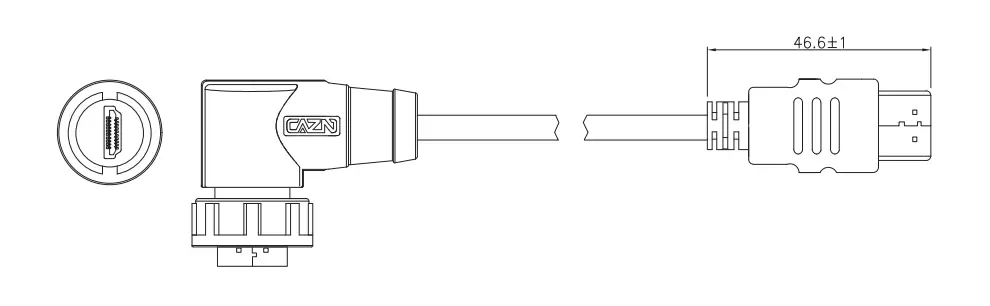

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | Wire Length | P/N | 3D Download | 2D Download |
| HDMI R/A Male to Straight Male Cable plug(Bayonet) | HDMI 4K | 0.5M | E16B-MH4-MWD/NWA-0.5PV-S | ||
| HDMI R/A Male to Straight Male Cable plug(Bayonet) | HDMI 4K | 1M | E16B-MH4-MWD/NWA-1PV-S | ||
| HDMI R/A Male to Straight Male Cable plug(Bayonet) | HDMI 4K | 2M | E16B-MH4-MWD/NWA-2PV-S | ||
| HDMI R/A Male to Straight Male Cable plug(Bayonet) | HDMI 4K | 3M | E16B-MH4-MWD/NWA-3PV-S |
*If need to order other collocation or wire, please consult customer service
