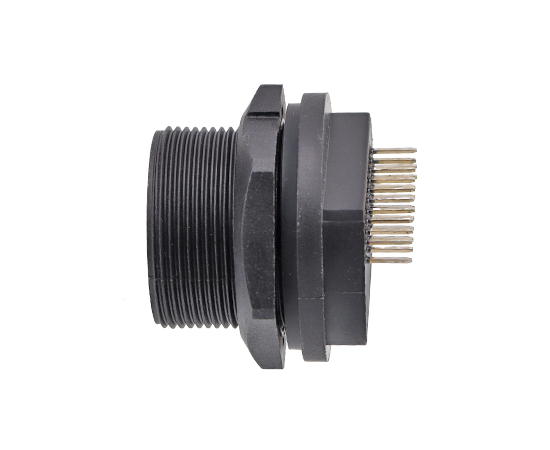

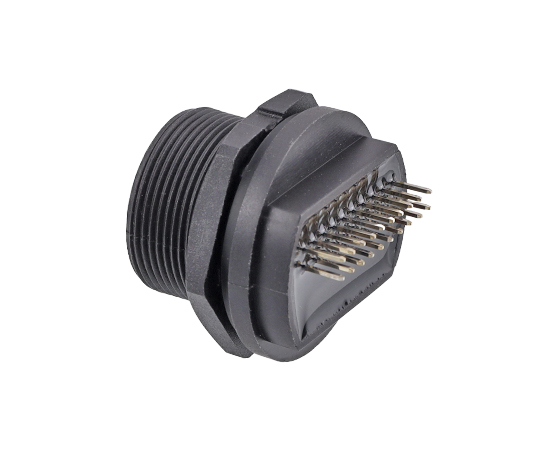

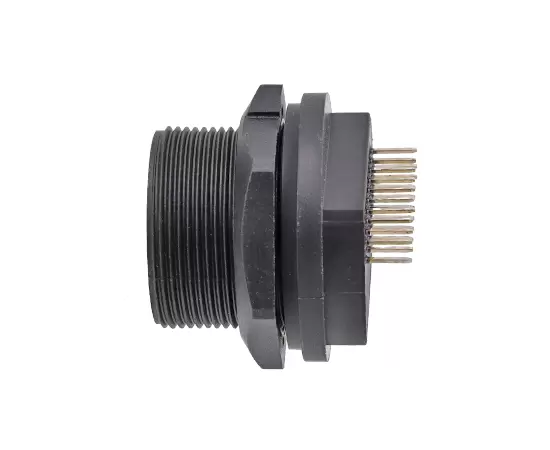

Back Mount Receptacle
Product information
PRODUCT PARAMETERS
| Plastic Material: | PA66, Nylon, Reinforced Nylon, Silicone |
| Metal Material: | Copper gold-plated |
| Coupling: | Threaded(T); Bayonet(B) |
| Termination way: | Solder、Welding plate |
| Contact resistance： | 30 mΩ |
| Durability: | ≥500(Cycles) |
| Insulation resistance： | ≥100 mΩ DC500V |
| Rated current： | 50 mA |
| Applicable temperature: | -40℃ ~ +105℃ |
| Specification: | 13/16"-28UNS |
| Waterproof grade: | IP67 |
Electrical diagram

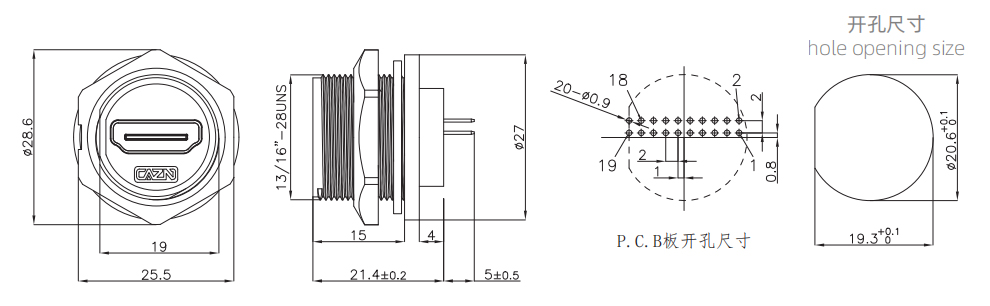

DIMENSION DRAWING
Product Ordering
| Product Name | Standards | P/N | 3D Download | 2D Download |
| HDMI Female Back Mount PCB Receptacle(Threaded) | HDMI 2K | E13T-FH2-PPF |
*If need to order other collocation or wire, please consult customer service
